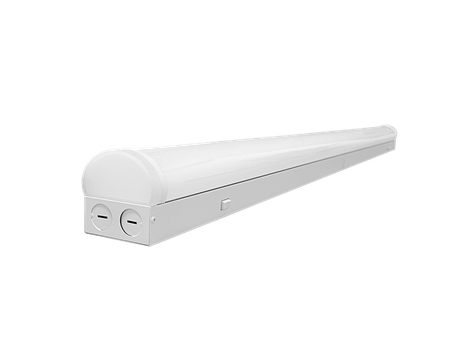

Gielight ST 8ft LED Linear Strip 60-80W
Product Number:ST-8FT-80W-L-H
8ft linear strip on the ST- housing, three selectable wattages and four selectable CCTs.
- 3 selectable wattages, 4 selectable CCTs
- Surface, suspended or recessed mounting
- 0-10V dimming as standard
- DLC listed
- 5-year limited warranty
Specifications
Wattage
60 / 70 / 80 W
Lumens
8,400 – 11,200 lm
Efficacy
up to 140 lm/W
Colour temperature
3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Dimming
95.98" x 2.95" x 2.99" (2438 x 75 x 76mm)
Warranty
5-year limited warranty
CRI
Ra 80
Power factor
> 0.9
Dimensions
95.98" x 2.95" x 2.99" (2438 x 75 x 76mm)
Lumens
calculated from rated efficacy
Sensor
This SKU has no sensor base. Gielight sells the same fixture with a factory sensor base under its own part number — order that version if you need occupancy or daylight control.
Construction
- Steel housing, 2.95" x 2.99" (75 x 76mm) section
- 4FT overall 48.03" (1220mm); 8FT overall 95.98" (2438mm)
- Frosted lens with a screw-free end cover
Electrical
- Input 120-277VAC
- 0-10V dimmable driver
- PF > 0.9
- Power selectable by DIP; CCT selectable across five steps
Installation
- Surface mount, suspended, or recessed
- Sensor and Bluetooth modules can be fitted in the field
- Sensor base wiring: black and white VCC, pink GND, purple 0-10V
Ideal applications
- Warehouses
- Workshops
- Retail stockrooms
- Corridors
- Parking structures
- Utility rooms
