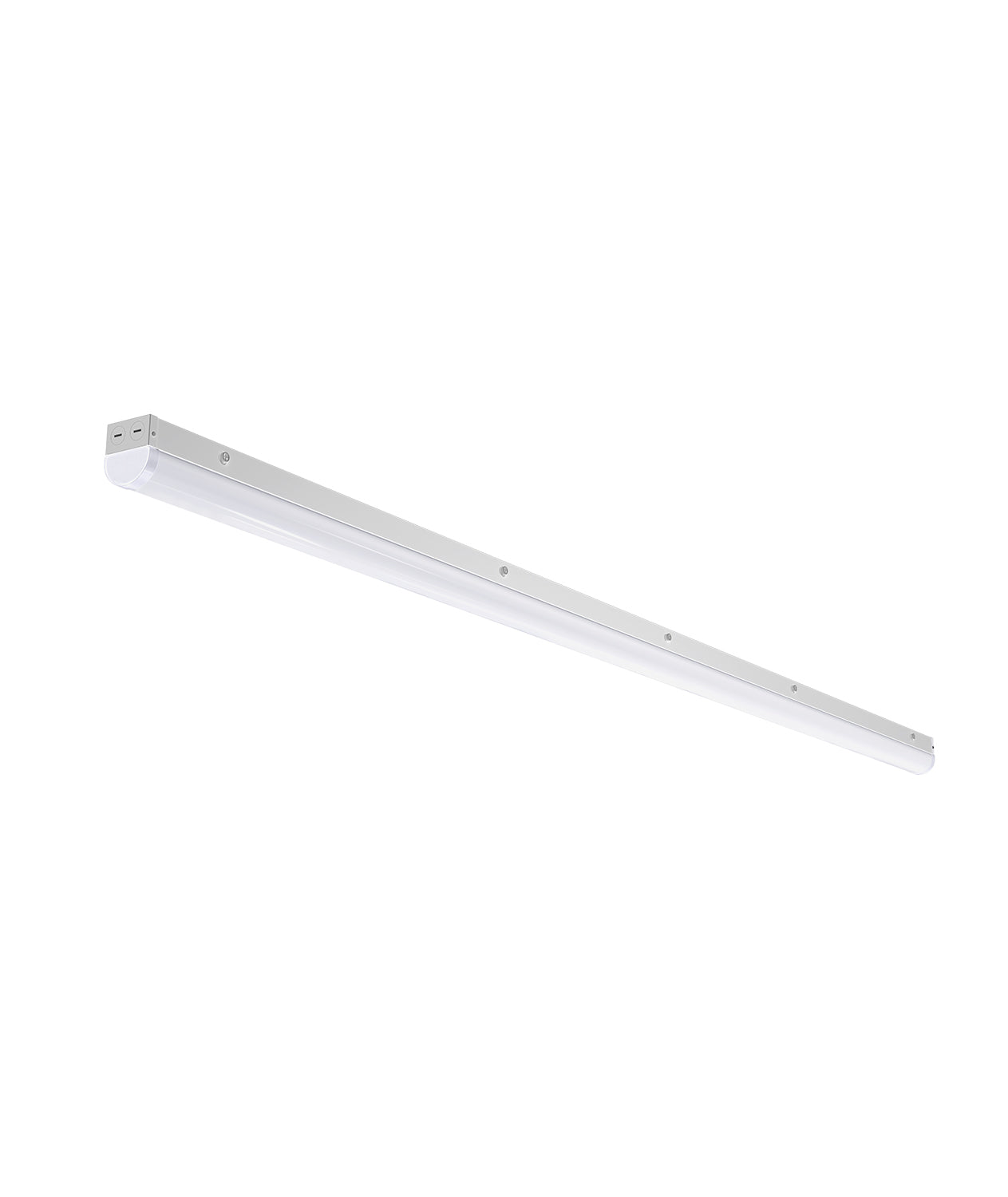

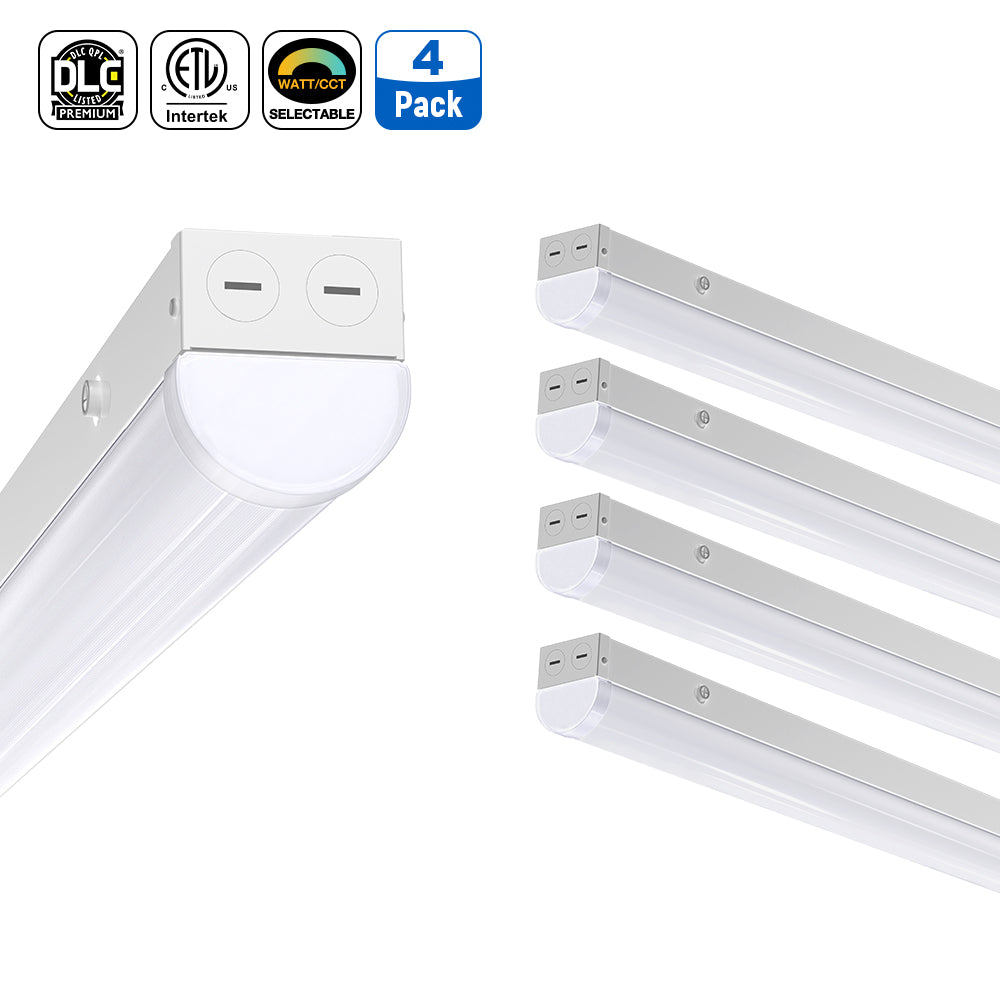

JEE 8ft LED Linear Strip ST02 70-90W with Sensor Base
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | JEN-ST02-8FT-90PDMC |
| Fixture type | Strip Lights |
| Family | Linear Strip – ST02 |
| Size | 8ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 5700K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base |

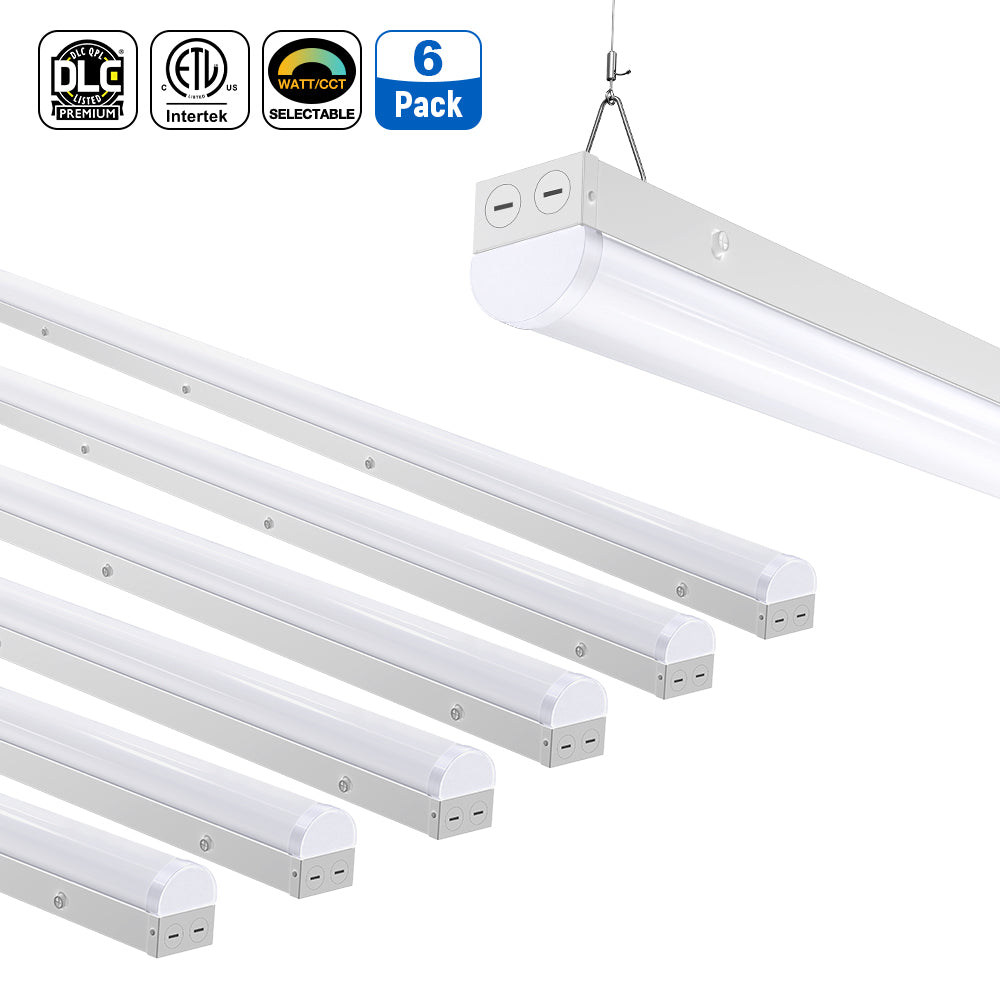

| Certifications | ETL, DLC |

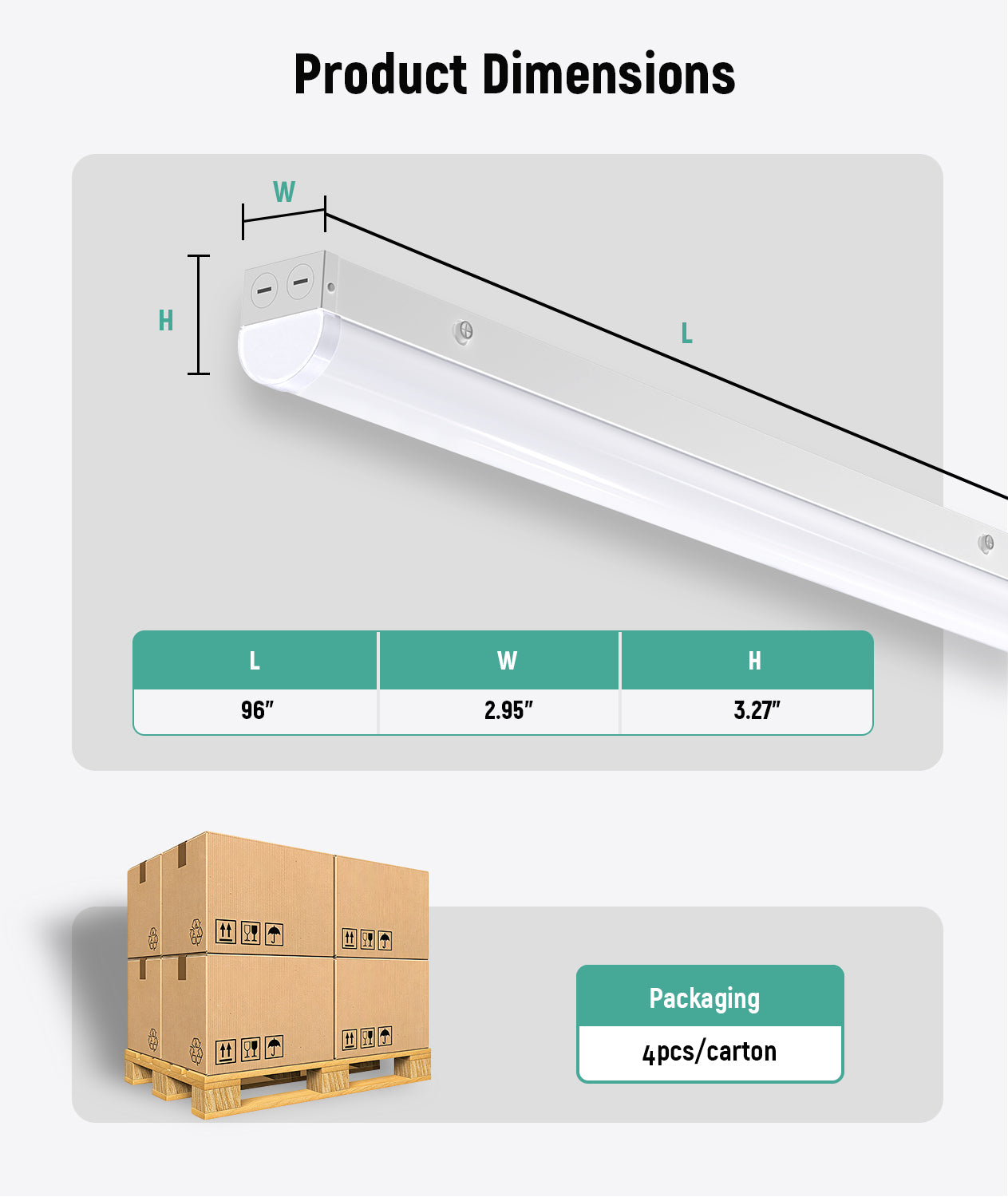

| Product dimensions | 96 x 2.95 x 3.27 in (L x W x H) |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 98.04 x 8.47 x 8.67 in |
| Case pack weight | 26.28 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

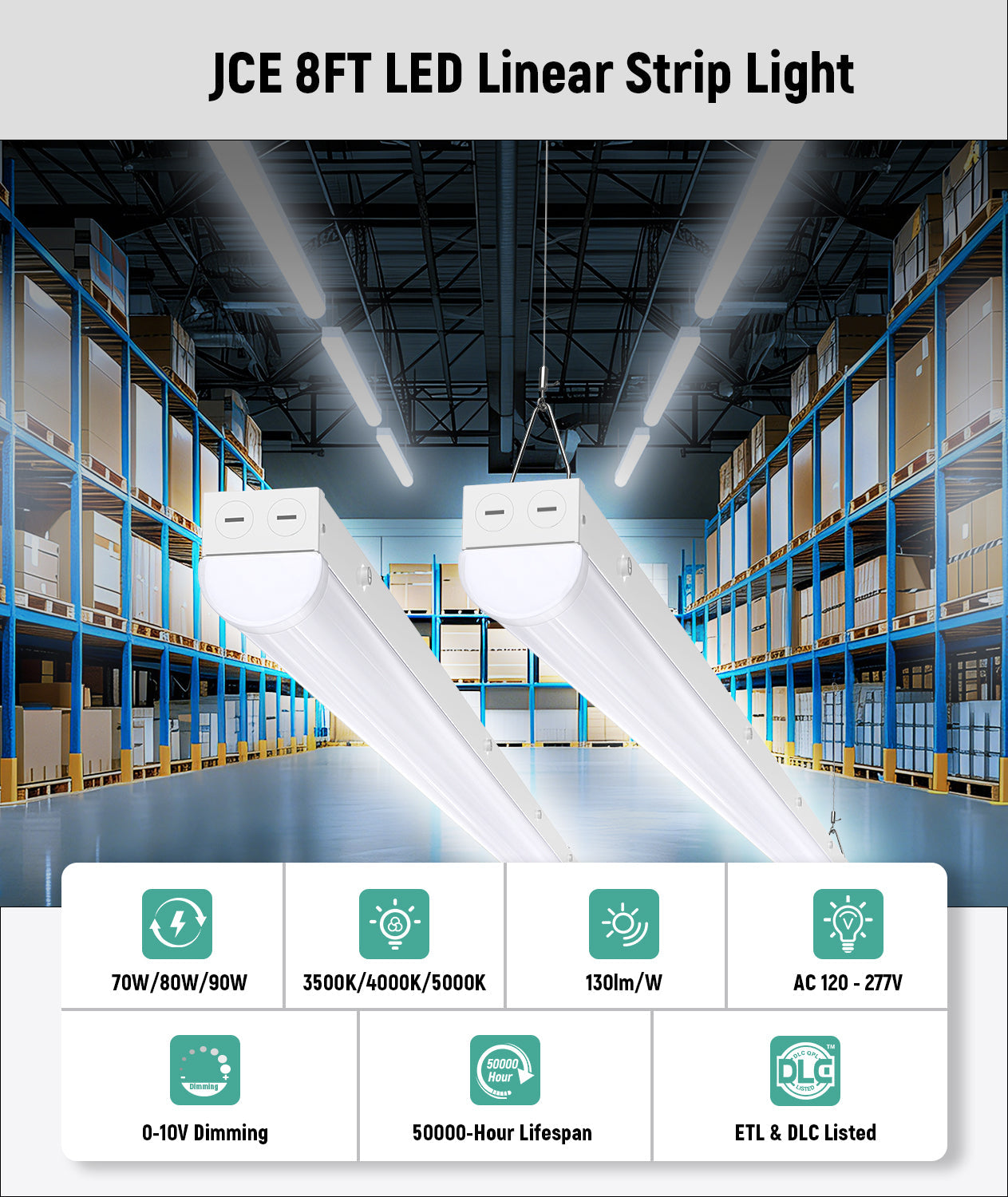

JEE linear strip light with field-adjustable wattage and CCT, 0-10V dimming and seamless linking for continuous rows.
Specifications

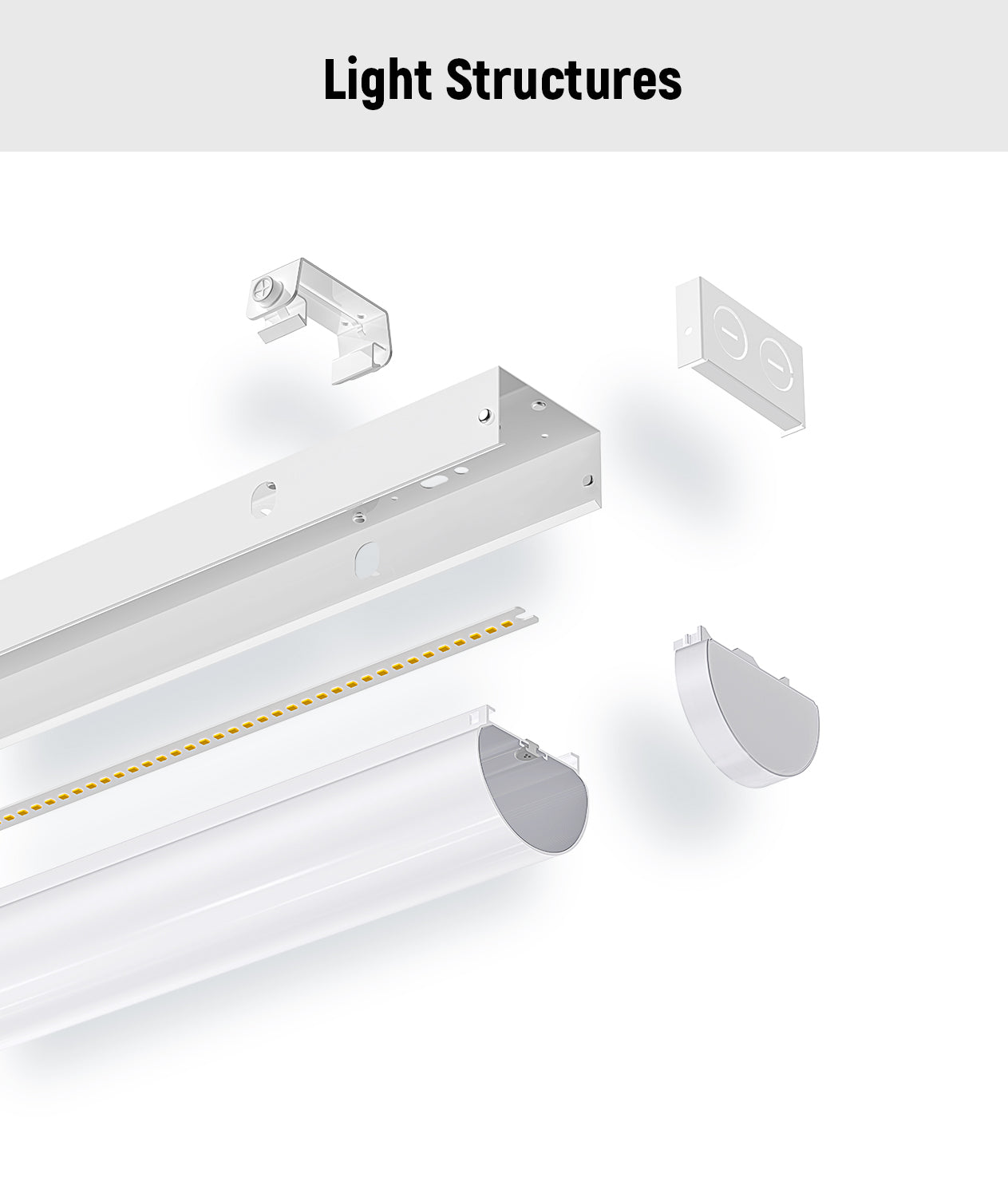

Construction

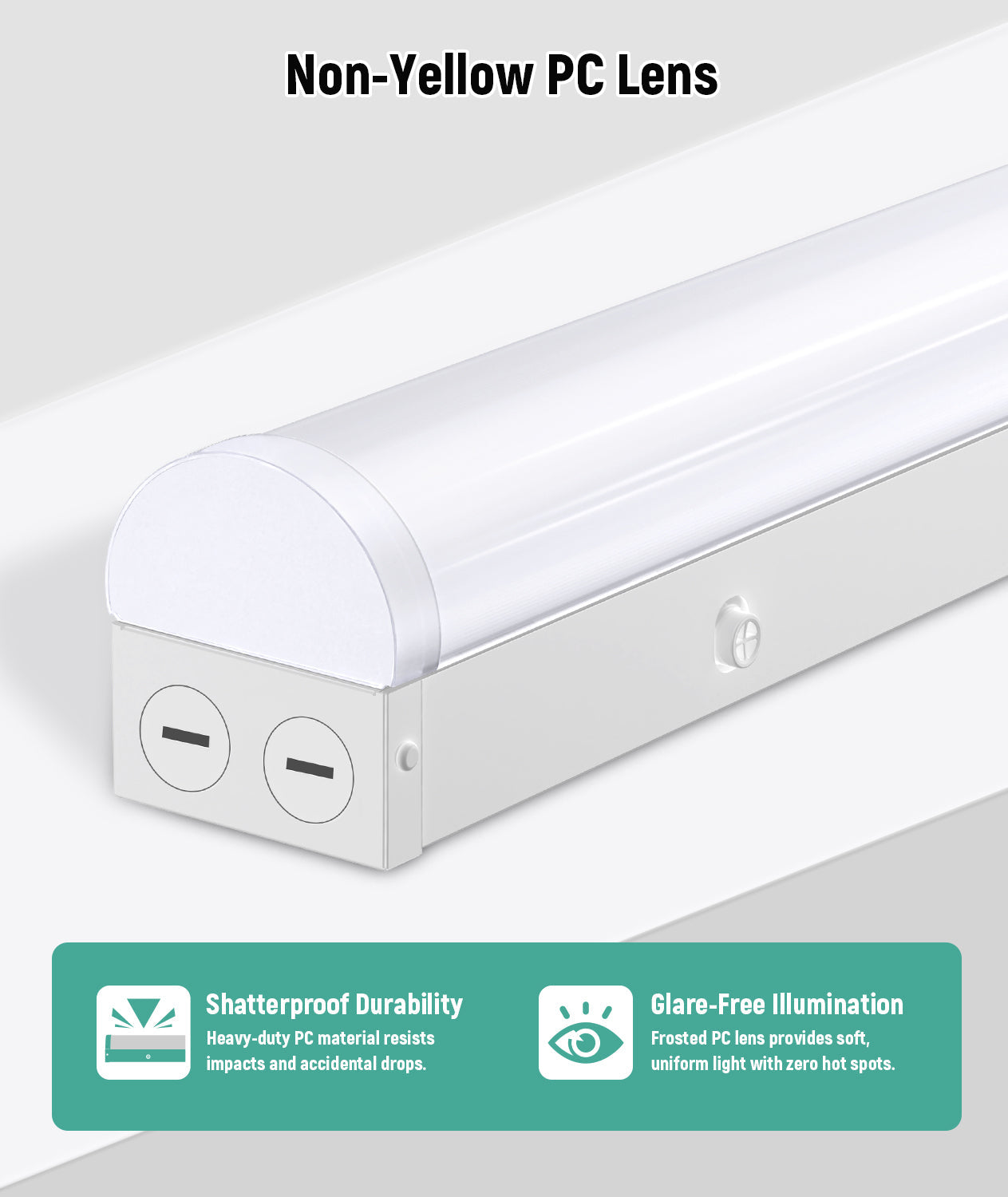

- Luminous part integrated and fastened to the body by snap locks
- End caps use an integrated bending technique
- Seamless linkable
- 4ft and 8ft options
Electrical
- 120-277VAC, or 120-347VAC optional
- 0-10V dimmable
- THD ≤ 10%, PF ≥ 0.95

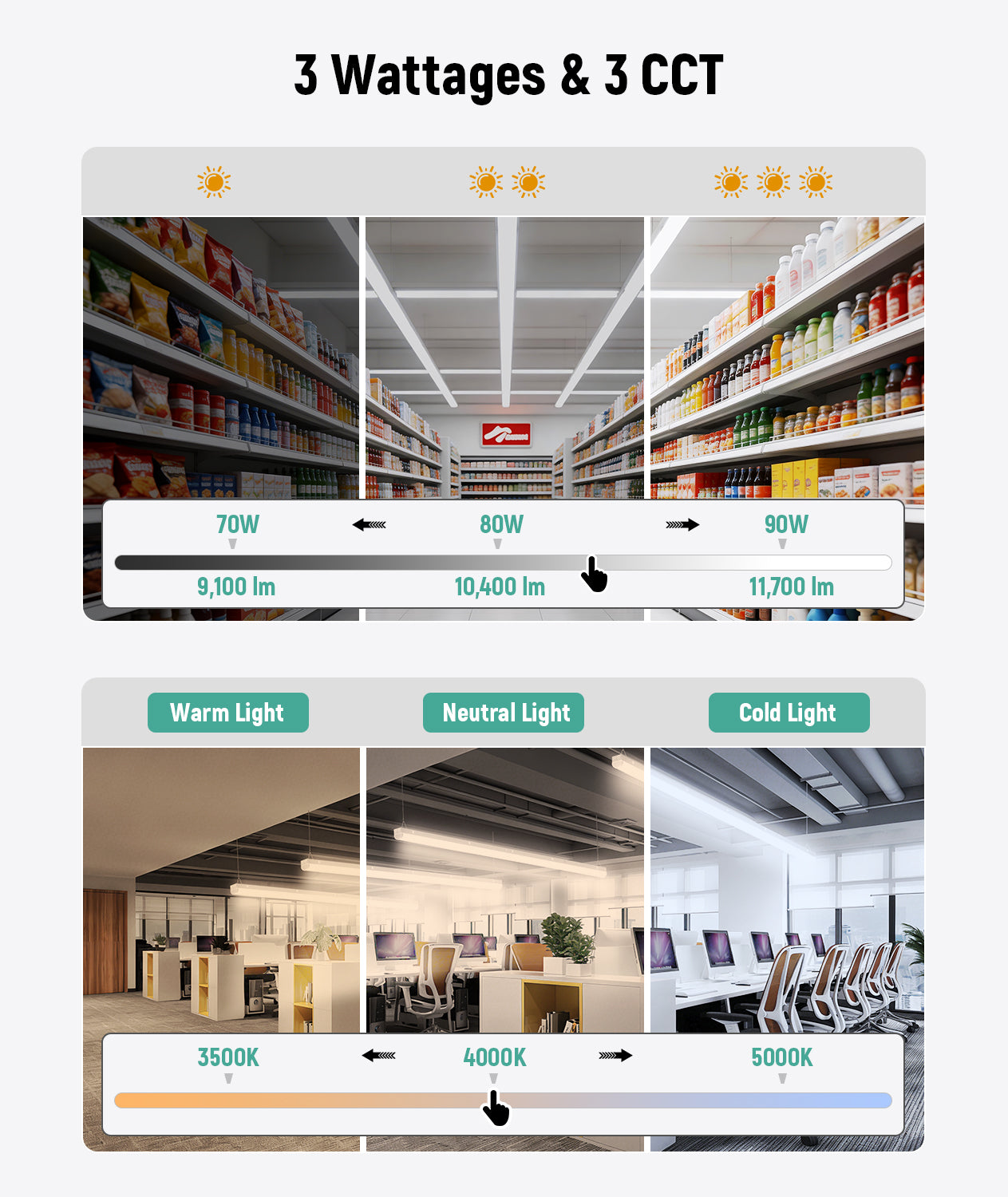

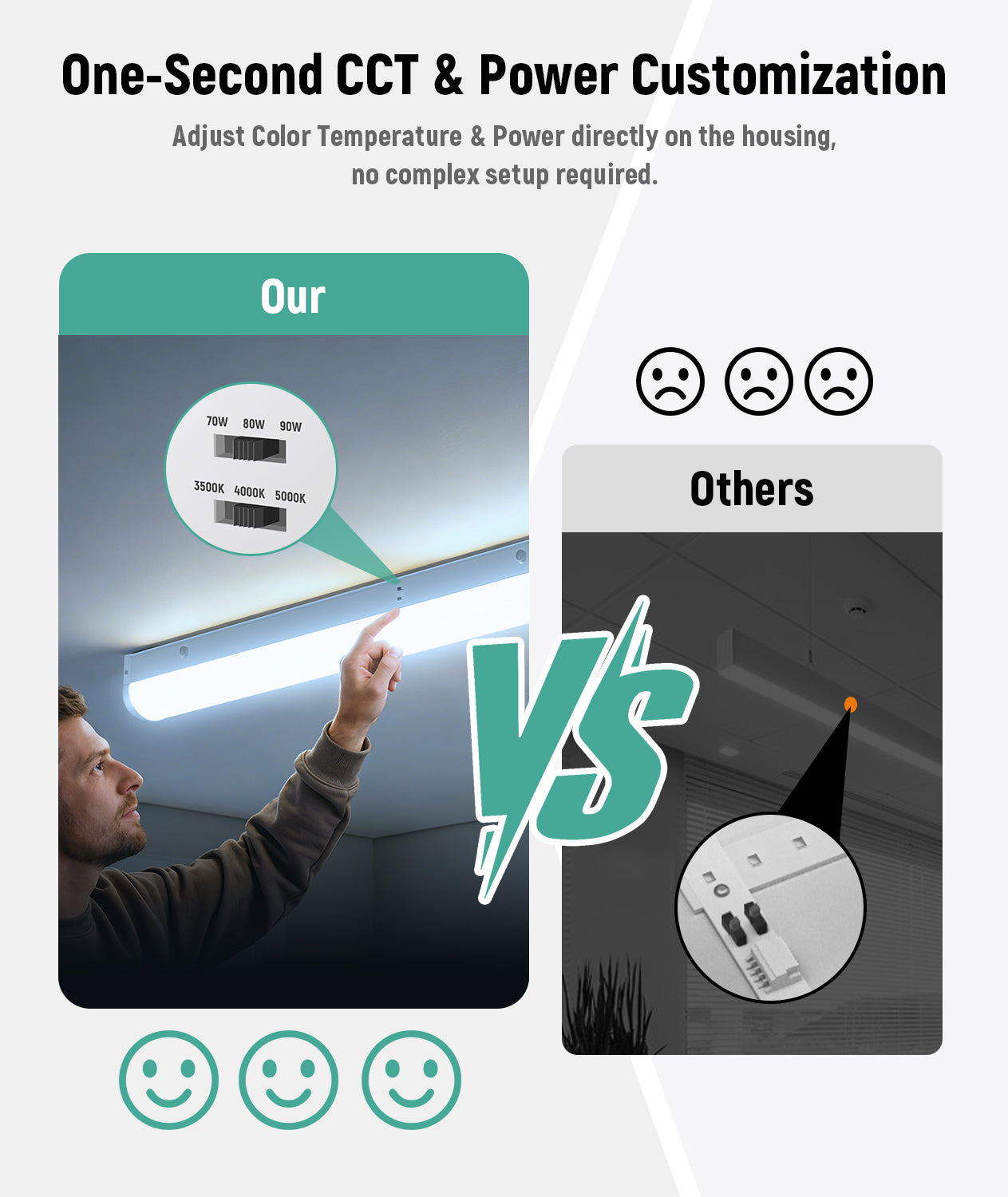

- Field-adjustable power and CCT
- Low voltage bi-level motion sensor available

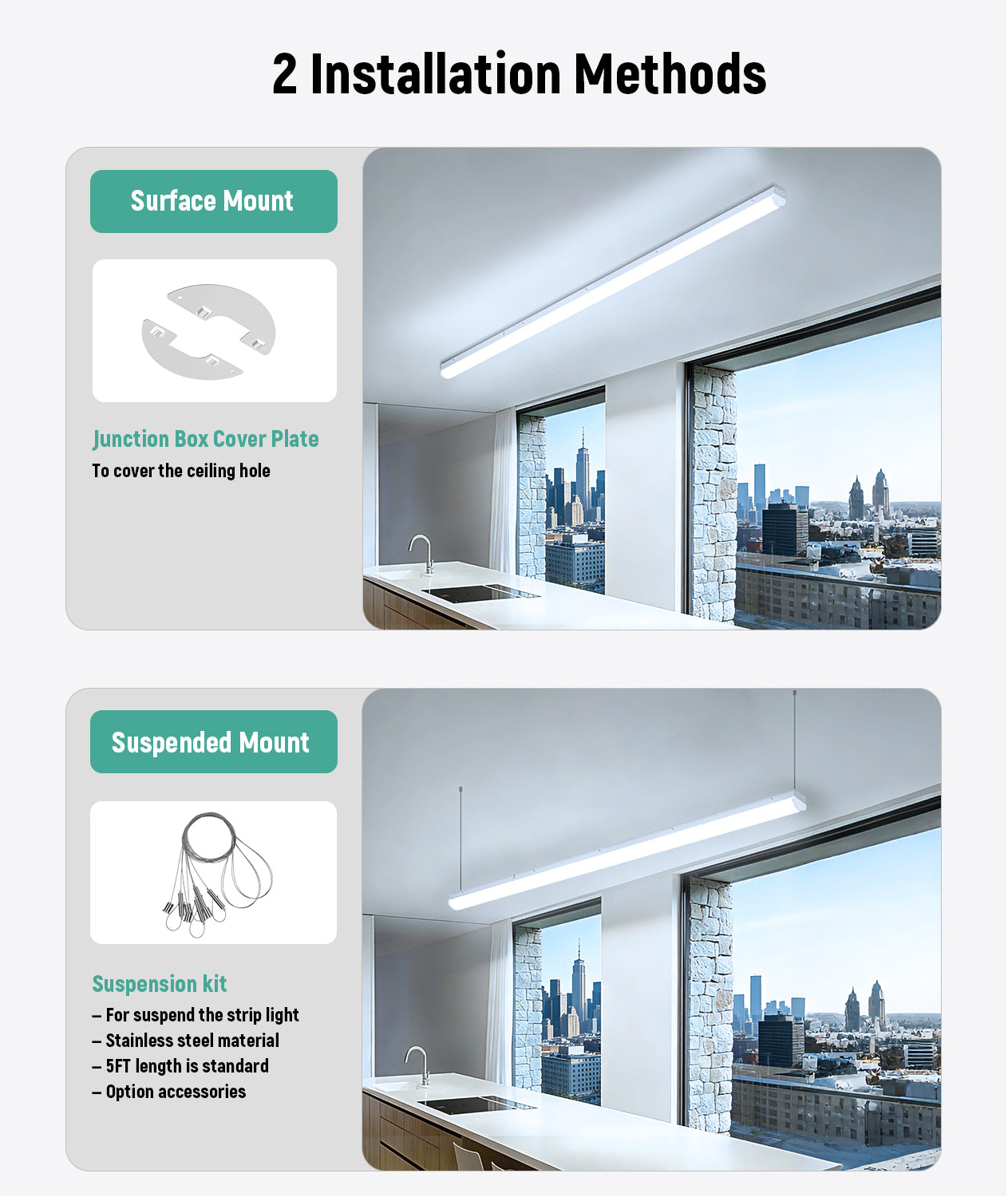

Installation
- Surface mounted
- Suspended

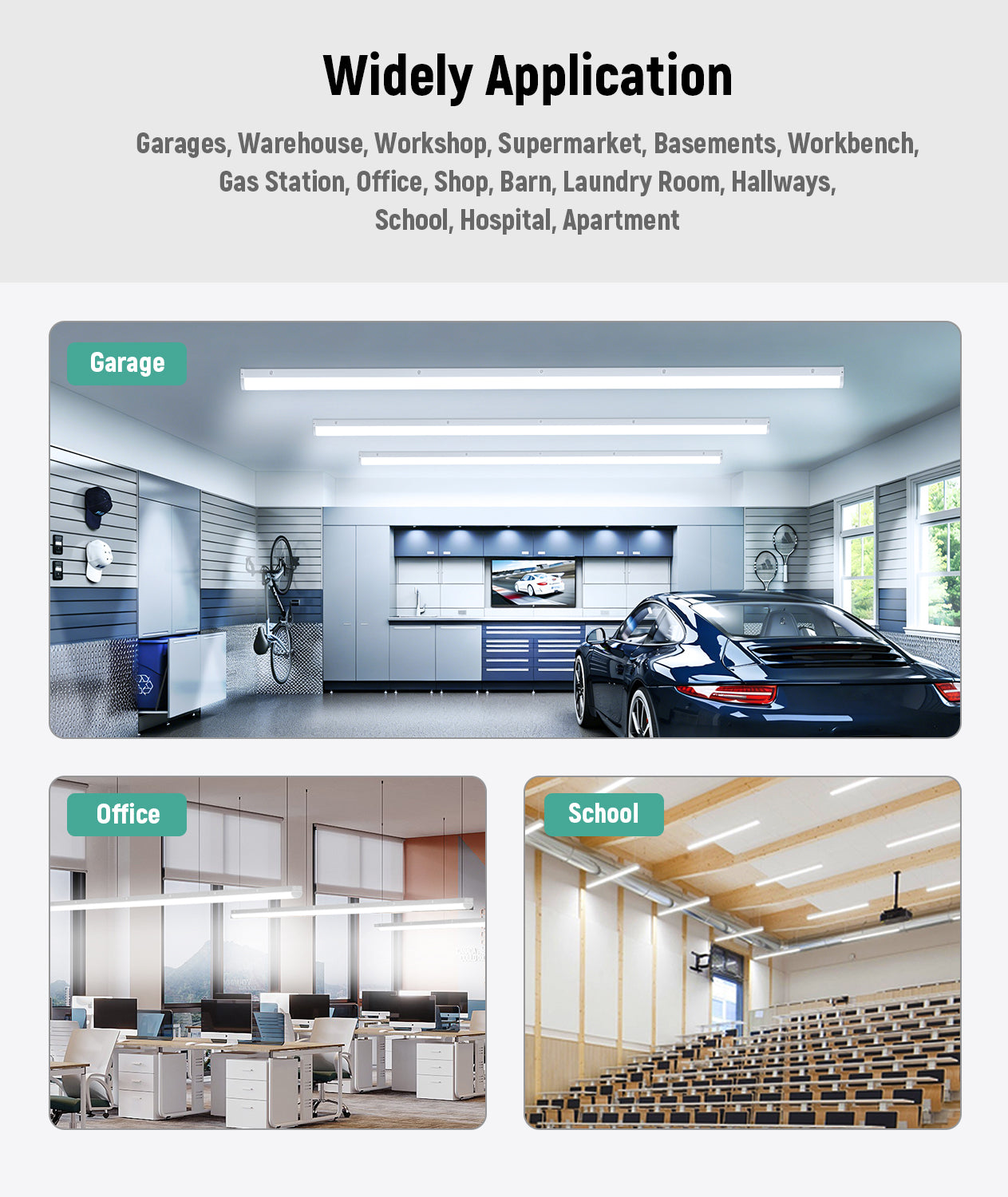

Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $167.00
- $13.25
- $3.75
- $3.75
- $2.50
- $18.00
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
Microwave Sensor, ST04 Series
$13.25
Linkable Connector, ST04 Series
$3.75
Linkable Cables for 8ft Linear Strip
$3.75
Suspension Kit, ST04 Series
$2.50
HD06 Remote Controller
$18.00
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
Gielight
Gielight ST 8ft LED Linear Strip 60-80W, No Sensor Base60 / 70 / 80 W
$37.75
View →
-
StarLake
StarLake 8ft SP07 LED Linear Strip Light 40-100W100 / 90 / 80 / 60 / 40 W selectable
$42.50
View →
-
EDIPAI
EDIPAI 8ft LED Linear Strip G4 with Sensor Base 80W 12000lm, High Bay / Stairwell40 / 50 / 60 / 70 / 80 W
$49.25
View →
-
TCP
TCP 8ft LED General Purpose Strip SW2 18-32W18 / 22 / 32 W
$71.50
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 70 / 80 / 90 W. Color temperature: 3500K, 4000K, 5000K, 5700K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
