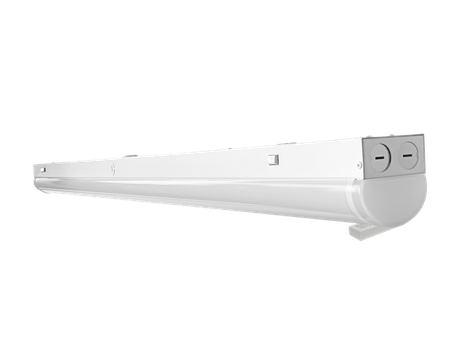

Gielight ST 8ft LED Linear Strip 60-80W
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
-
PIR Motion Sensor, 2.5mm Jack (ANT-1-4T-PR)
$8.50
-
Microwave Motion Sensor, 2.5mm Jack (HSE-SM5L-2A)
$8.50
-
Bluetooth + Microwave Motion Sensor, 2.5mm Jack (HSE-BSM5L-2A)
$21.00
-
Remote Controller (RC-100)
$14.50
-
Infrared Remote Control, LCD (HD06R)
$19.00
-
LED Light Connector
$5.25
-
Safety Cable and V-Hook
$5.25
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | ST-8FT-80W-L-H with sensor base |
| Fixture type | Strip Lights |
| Family | 8ft Linear Strip |
| Size | 8ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base |
| Certifications | ETL, DLC |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
8ft linear strip on the ST- housing, three selectable wattages and four selectable CCTs. Ships with the sensor base fitted; the sensor head is ordered separately.
- 3 selectable wattages, 4 selectable CCTs
- Surface, suspended or recessed mounting
- 0-10V dimming as standard
- DLC listed
- 5-year limited warranty
Specifications
Construction
- Steel housing, 2.95" x 2.99" (75 x 76mm) section
- 4FT overall 48.03" (1220mm); 8FT overall 95.98" (2438mm)
- Frosted lens with a screw-free end cover
Electrical
- Input 120-277VAC
- 0-10V dimmable driver
- PF > 0.9
- Power selectable by DIP; CCT selectable across five steps
Installation
- Surface mount, suspended, or recessed
- Sensor and Bluetooth modules can be fitted in the field
- Sensor base wiring: black and white VCC, pink GND, purple 0-10V
Ideal applications
- Warehouses
- Workshops
- Retail stockrooms
- Corridors
- Parking structures
- Utility rooms
Downloads
Spec sheet (PDF) — Gielight-LED-Linear-Strip-ST.pdf
Best uses
- Long runs of linear light where you want to choose the output and colour on site
- Surface, suspended or recessed installs
- Projects that may need occupancy sensing or Bluetooth control
What's in the box
- One 8ft linear strip, 95.98 x 2.95 x 2.99 in with the sensor base fitted (sensor not included)
- The spec sheet does not list included mounting hardware
Accessories you may need
- Audio jack sensor: HD08VR-M-1 microwave or HD08VR-P-1 PIR (set with the HD06R remote), ANT-1P-5T (set with the RC-100 remote), or app controlled HD08VR-MB-1 / HD08VR-PB-1
- Mounting hardware for your method: anchors and screws for surface mount, or ceiling hooks and safety rope for suspension
- Connection bracket to join runs
- Optional emergency LED driver (100-347V)
Product FAQs
Can I set the wattage and colour on site?
Yes. Switch 1 selects 60, 70 or 80W and Switch 2 selects 3500K, 4000K, 5000K, 5700K or 6500K.
How can it be installed?
Surface mounted, suspended or recessed.
How do I add a sensor?
Remove the plastic plug on the sensor base and insert the sensor.
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $156.00
- $8.50
- $8.50
- $21.00
- $14.50
- $19.00
- $5.25
- $5.25
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
PIR Motion Sensor, 2.5mm Jack (ANT-1-4T-PR)
$8.50
Microwave Motion Sensor, 2.5mm Jack (HSE-SM5L-2A)
$8.50
Bluetooth + Microwave Motion Sensor, 2.5mm Jack (HSE-BSM5L-2A)
$21.00
Remote Controller (RC-100)
$14.50
Infrared Remote Control, LCD (HD06R)
$19.00
LED Light Connector
$5.25
Safety Cable and V-Hook
$5.25
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
JEE Lighting
JEE 8ft LED Linear Strip ST02 70-90W with Sensor Base70 / 80 / 90 W
$41.75
View →
-
StarLake
StarLake 8ft SP07 LED Linear Strip Light 40-100W100 / 90 / 80 / 60 / 40 W selectable
$42.50
View →
-
EDIPAI
EDIPAI 8ft LED Linear Strip G4 with Sensor Base 80W 12000lm, High Bay / Stairwell40 / 50 / 60 / 70 / 80 W
$49.25
View →
-
TCP
TCP 8ft LED General Purpose Strip SW2 18-32W18 / 22 / 32 W
$71.50
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 60 / 70 / 80 W. Color temperature: 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
