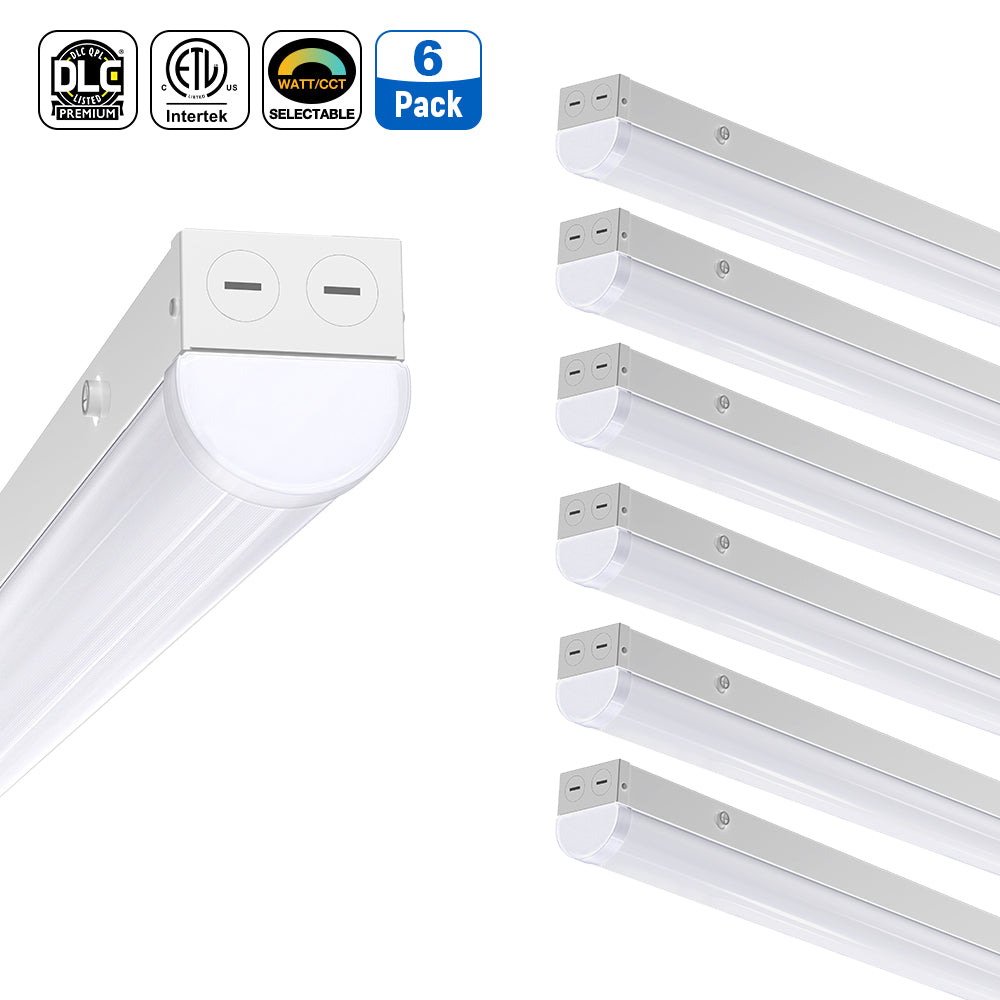

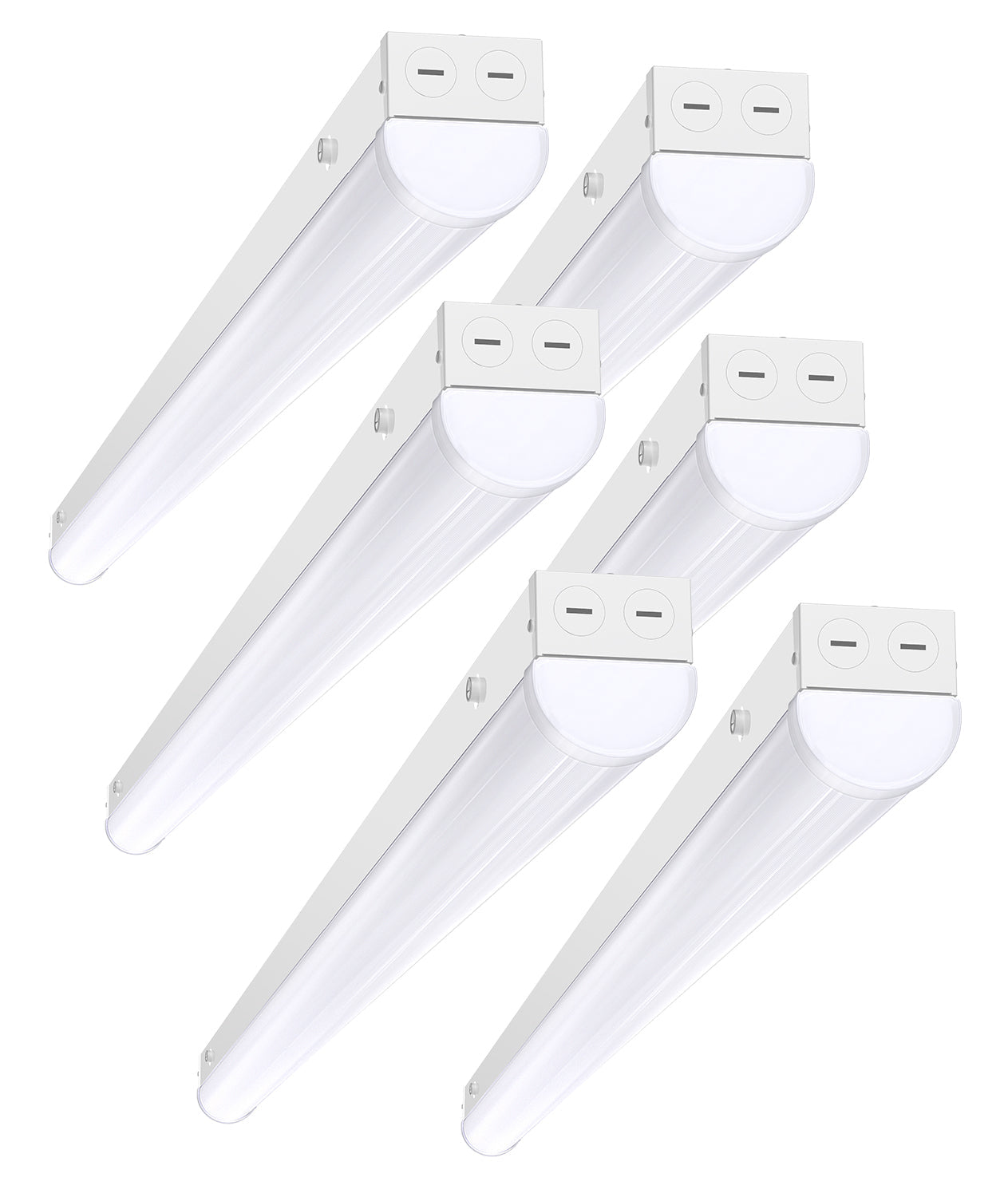

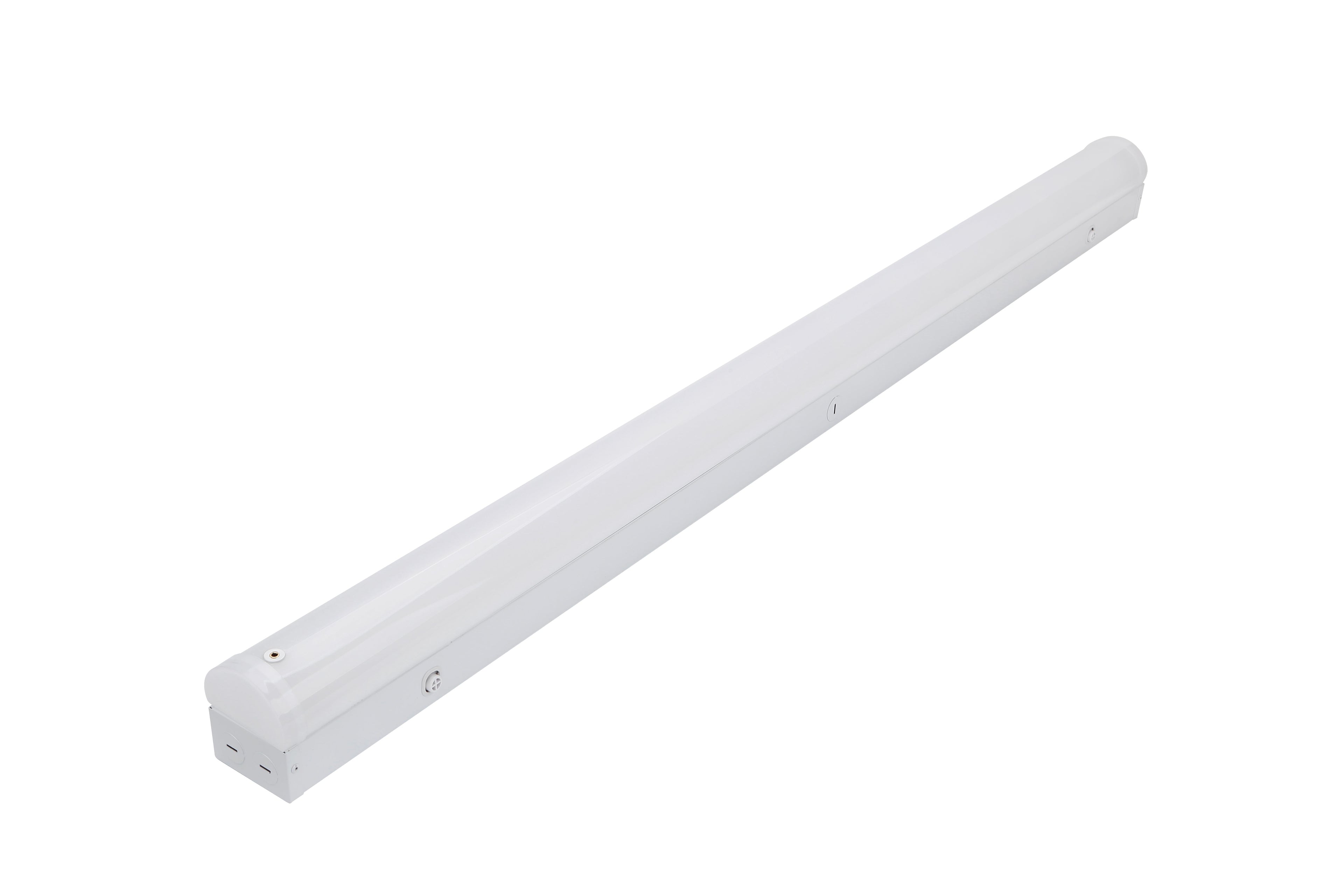

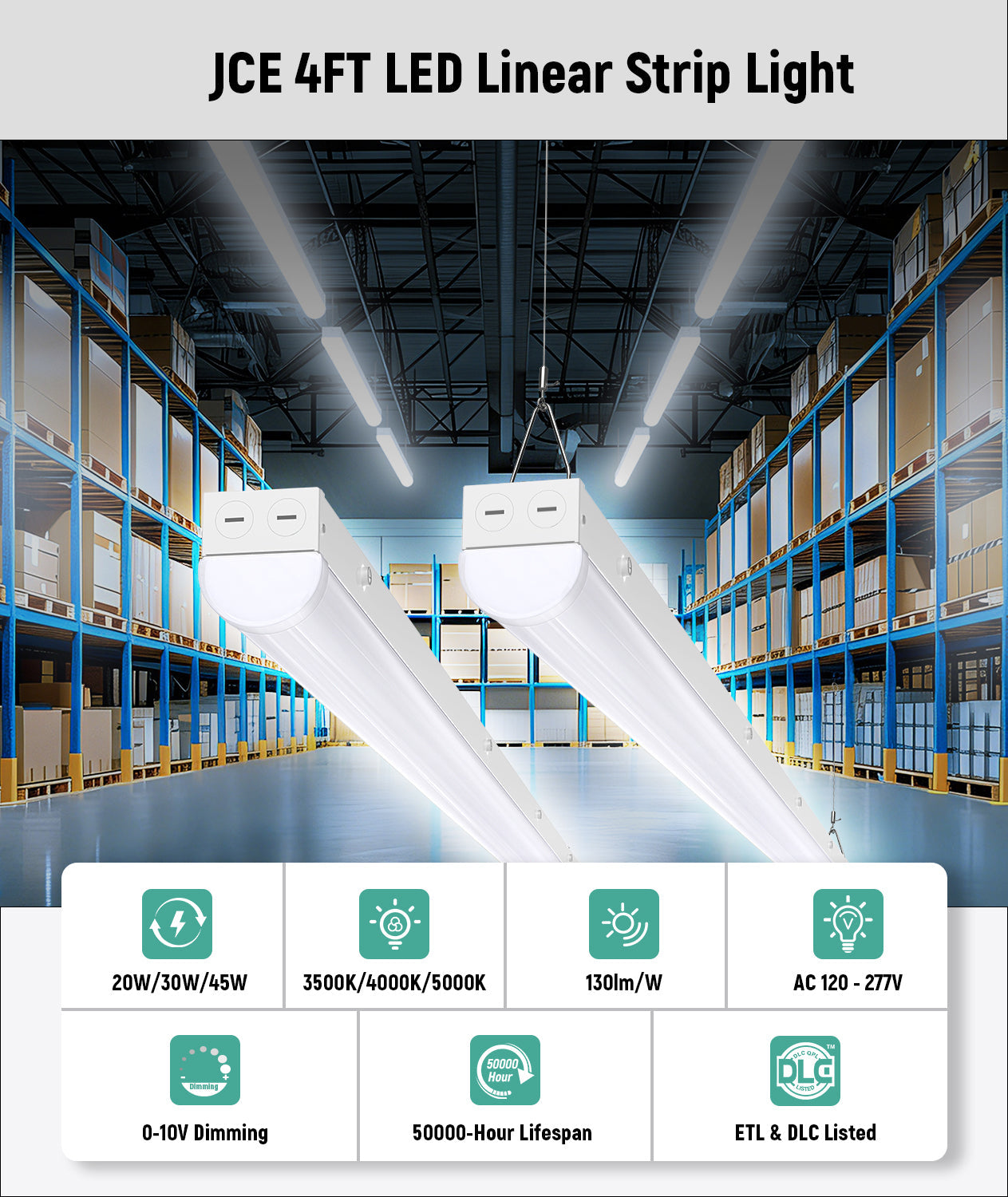

JEE 4ft LED Linear Strip ST05 30-68W
JEE 4ft LED Linear Strip ST05 30-68W

JEE 4ft LED Linear Strip ST05 30-68W

Product Number:ST4F-68MDNC
$28.50

Compatible accessories

Sensors, mounts, drivers and controls that fit this fixture.

Microwave sensor J-ST04-MS $13.25
Linkable connector ST04 Linkable connector $3.75
Linkable Cables for 4ft Linear Strip Linkable Cables for 4FT Linear Strip $2.00
Suspension Kit ST04 Suspension Kit $2.50
HD06 Remote Controller HD06 Remote controller $18.00
Product family Linear Strip – ST05 (DLC Low Bay)
Factory controls No controls
Certifications ETLDLC

JEE linear strip light with field-adjustable wattage and CCT, 0-10V dimming and seamless linking for continuous rows.

Specifications

Wattage
30 / 40 / 50 / 60 / 68 W
Lumens
max. 10,200 lm
Efficacy
> 150 lm/W
Colour temperature
3500K / 4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
> 80
Operating temp
-20°C to 45°C

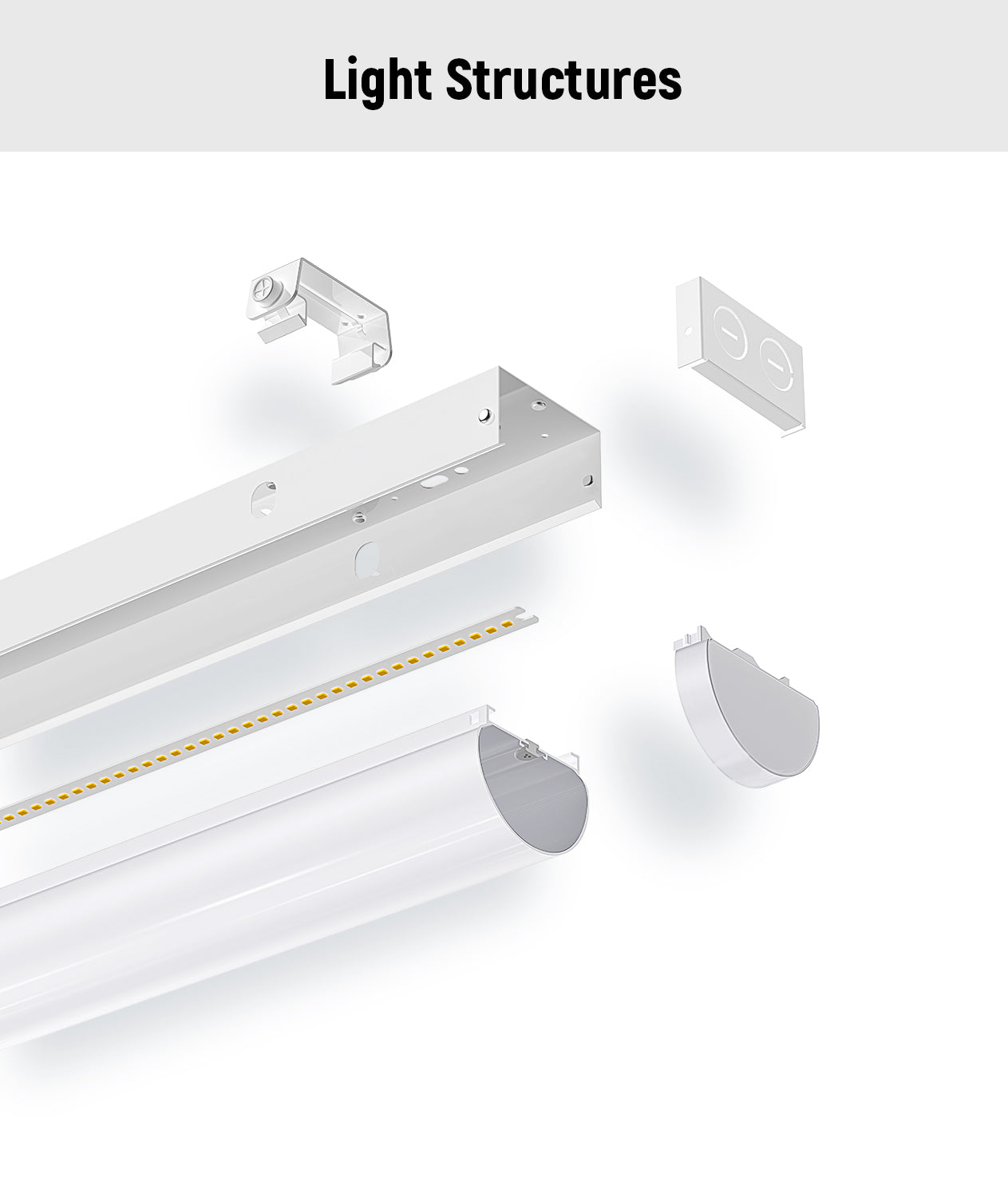

Construction

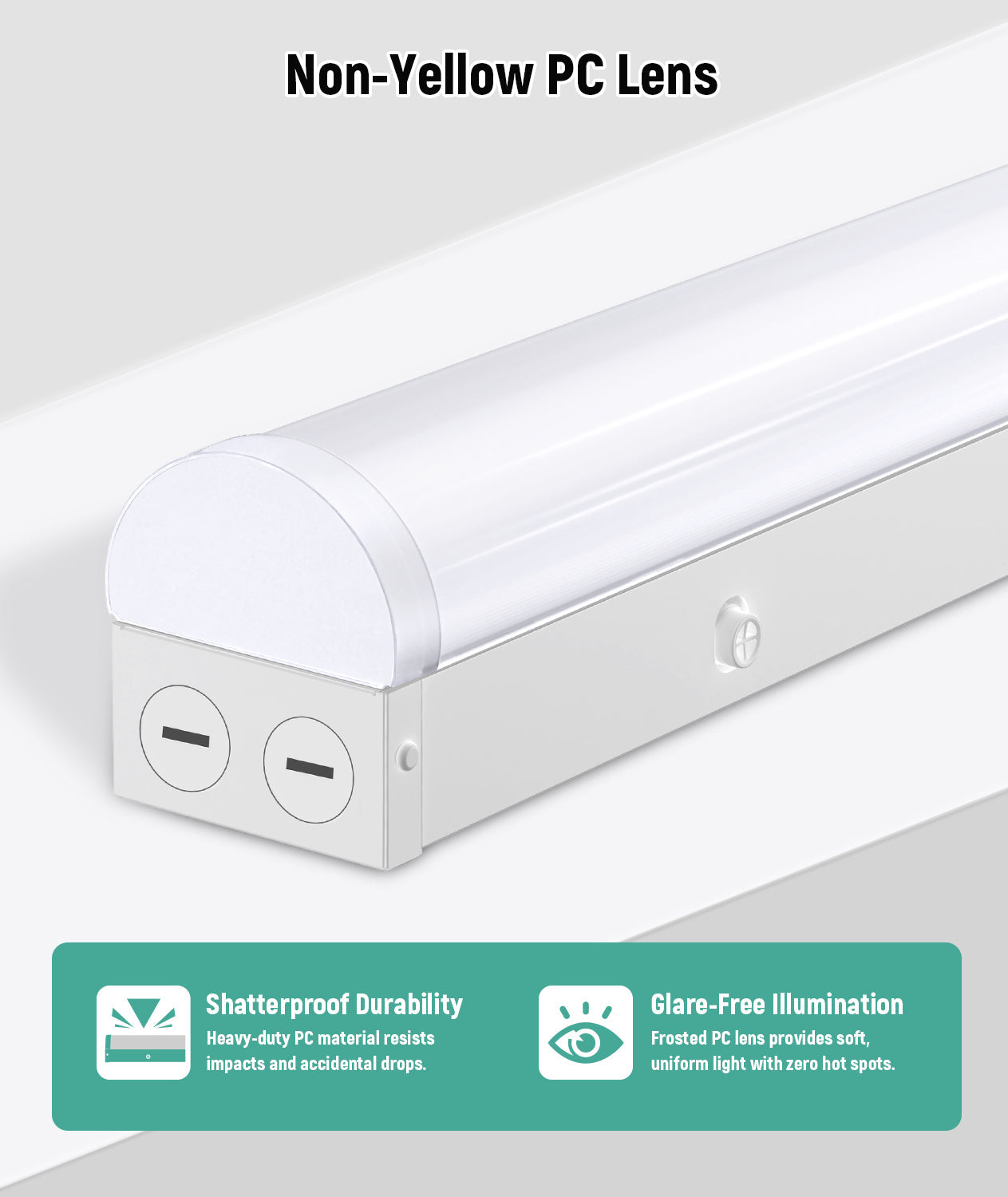

  • PC diffuser

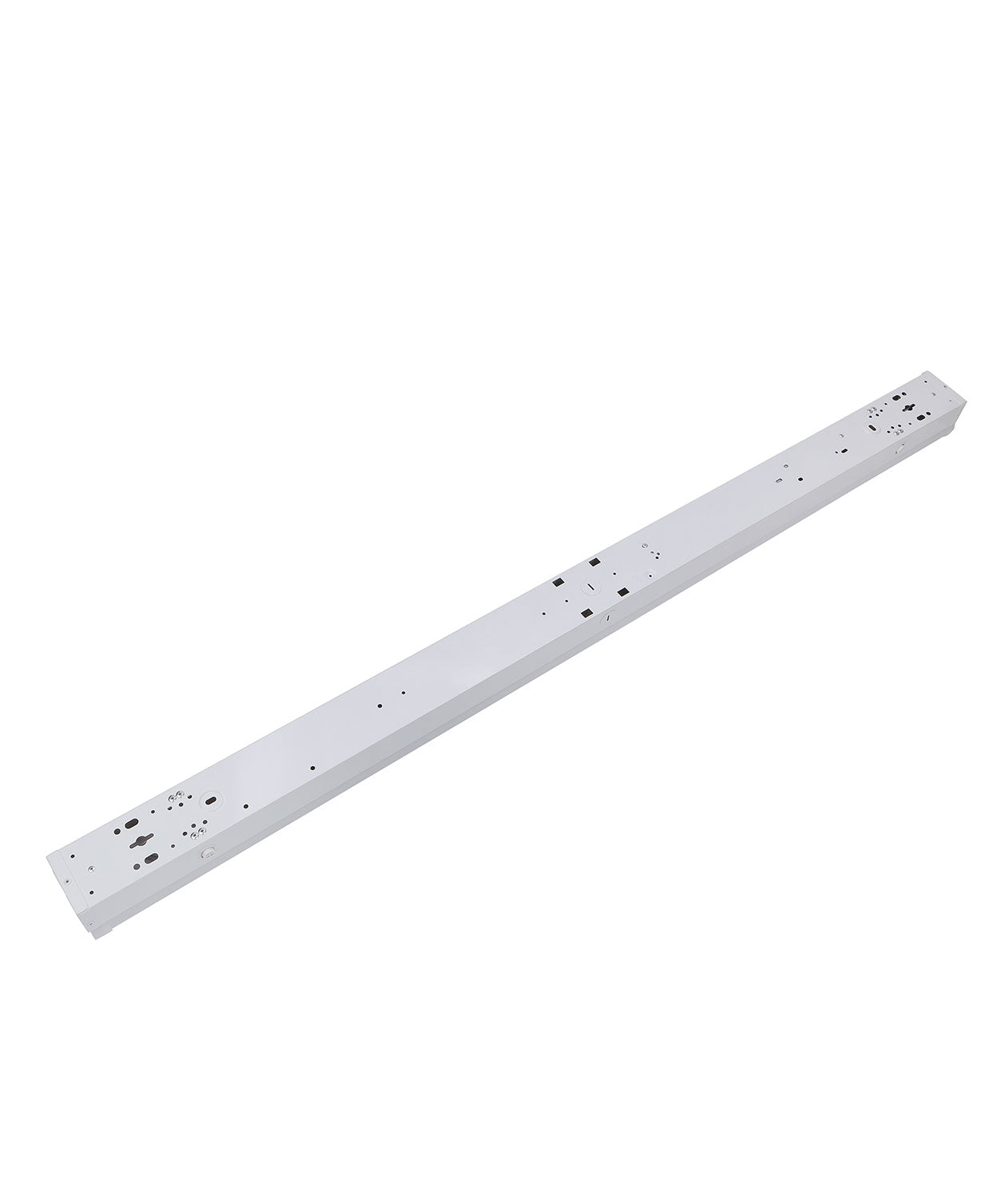

  • Powder-coated rust-resistant sheet metal body
  • Pure white finish
  • Seamless electronic linkable

Electrical

  • Universal voltage 120-277V, 50/60Hz
  • 0-10V dimming

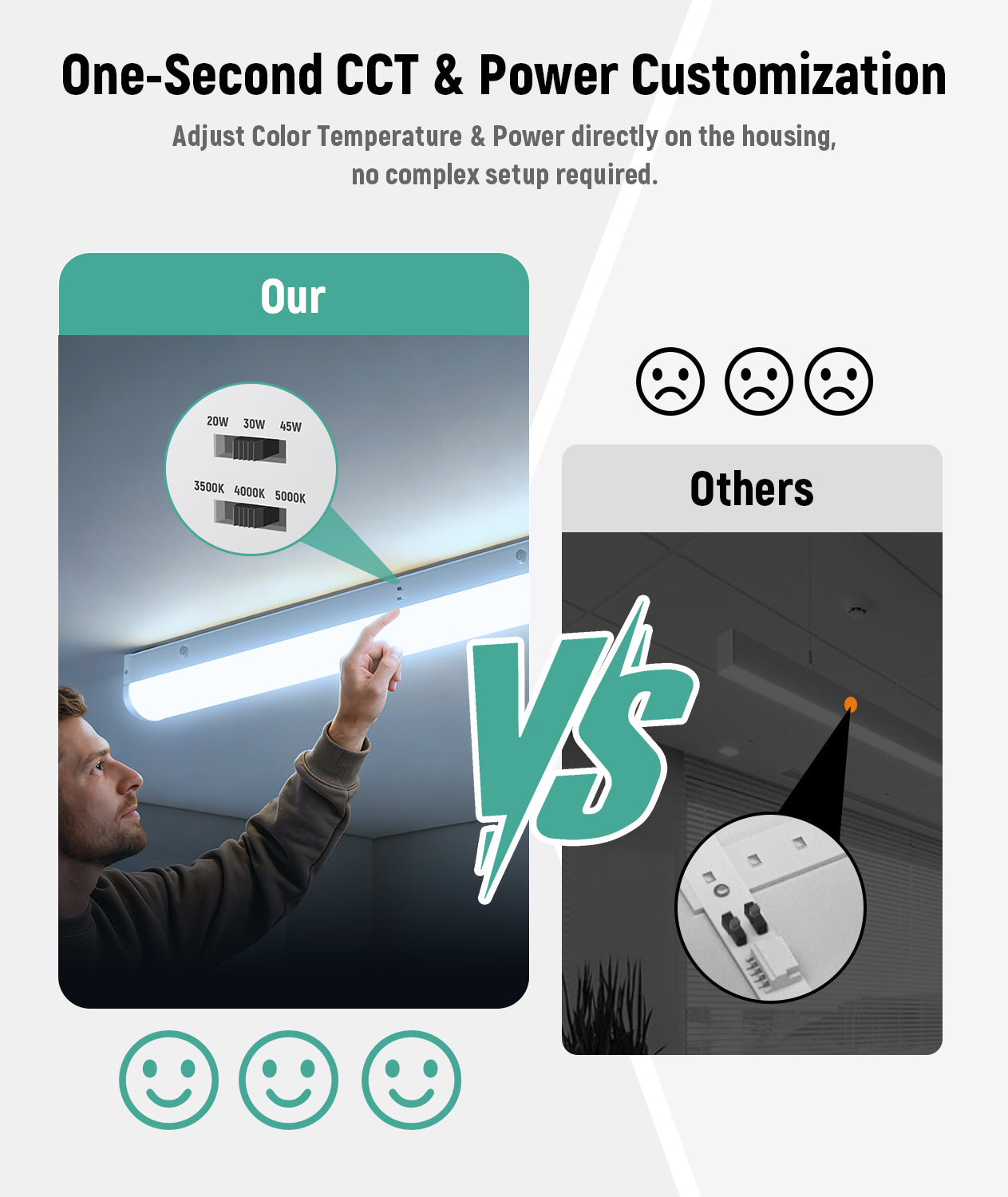

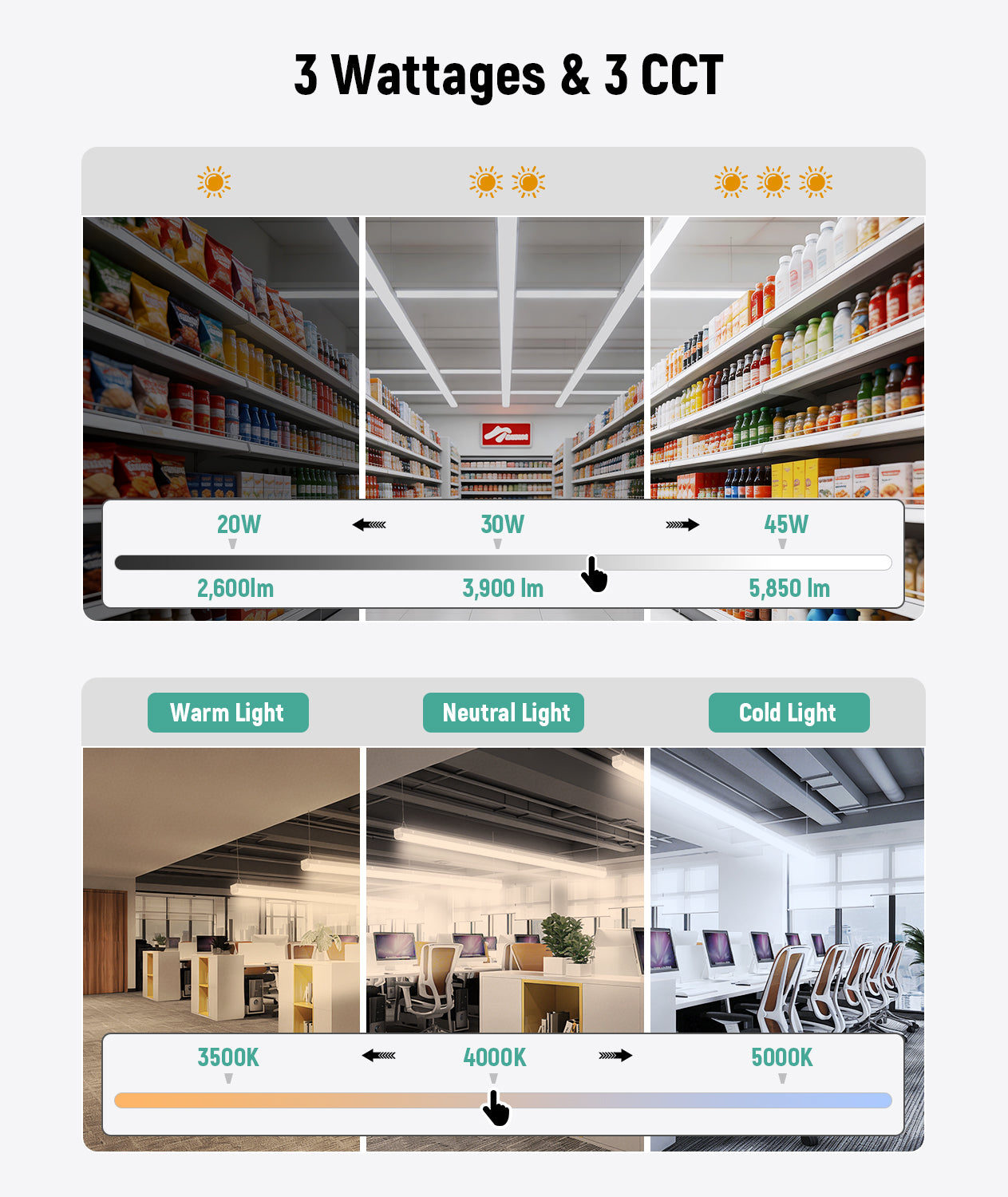

  • 5 wattage and 3 CCT selectable
  • Wiring on both ends and in the middle

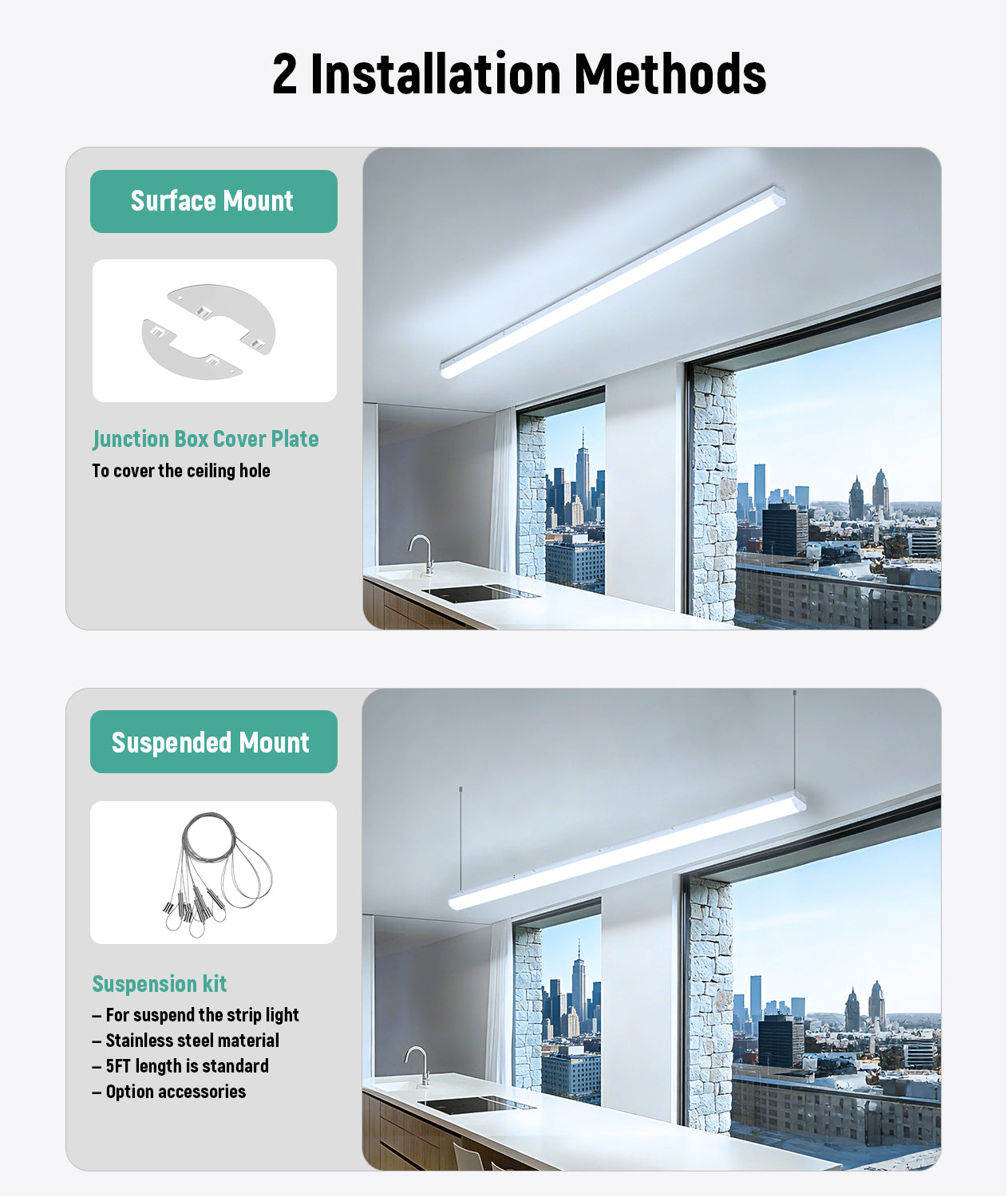

Installation

  • Surface mounting
  • Optional 8W emergency backup, 1.5 hr (90 min), field installed

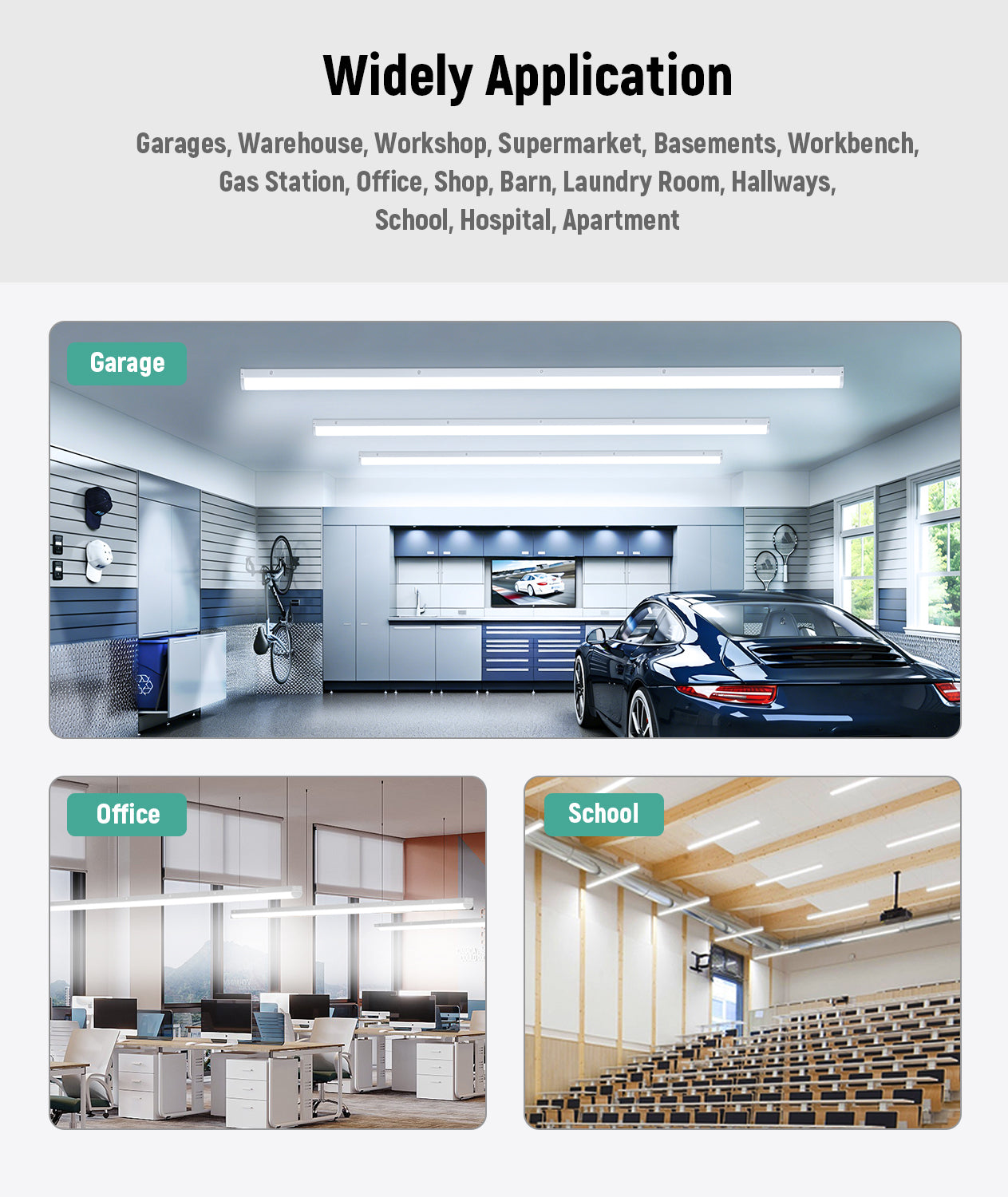

Ideal applications

  • Offices
  • Retail
  • Schools
  • Restaurants
  • Healthcare
  • Residential
  • Hospitality

Downloads

Spec sheet (PDF) — JEE-Spec-ST05-Linear-Strip-DLC-Low-Bay.pdf
