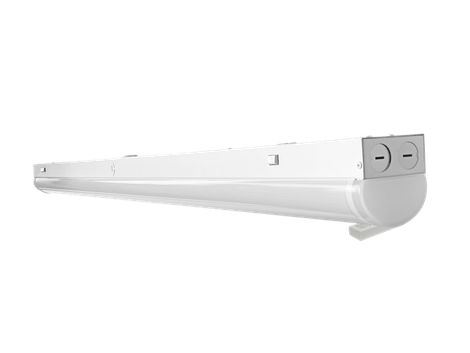

Gielight ST 4ft LED linear strip light
Gielight ST 4ft LED Linear Strip 30-40W

Gielight ST 4ft LED Linear Strip 30-40W

Product Number:ST-4FT-40W-L-H (with sensor base)
$26.00

Add-ons for this fixture

Pick several at once

Sensors, connectors and parts that fit this fixture. They ship on the same freight.

  • ETL Listed
  • DLC Listed
  • 5 Year Warranty

Automatic volume discount on your product total (freight not included)

  • $500 to $1,9995%
  • $2,000 to $3,9996%
  • $4,000 to $5,9997%
  • $6,000 to $7,9998%
  • $8,000 to $9,9999%
  • $10,000 to $19,99910%
  • $20,000 to $49,99912%
  • $50,000+15%

Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.

Spec sheet (PDF) From the manufacturer, opens in a new tab
Ships in a full factory case of 9
Packed by the manufacturer. Arrives ready to install.
  • Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
  • Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
  • Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.

Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.

Key specifications

ManufacturerGielight
Model / part numberST-4FT-40W-L-H (with sensor base)
Fixture typeStrip Lights
Family4ft Linear Strip
Size4ft
Color temperature (CCT)3500K, 4000K, 5000K, 6500K
Input voltage120-277V
ControlsSensor base
CertificationsETL, DLC
Case pack quantity9 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Warranty5 year minimum manufacturer warranty
ShippingShips from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works
Product family 4ft Linear Strip
Factory controls Sensor base
Certifications ETLDLC

4ft linear strip on the ST- housing, three selectable wattages and four selectable CCTs. Ships with the sensor base fitted; the sensor head is ordered separately.

  • 3 selectable wattages, 4 selectable CCTs
  • Surface, suspended or recessed mounting
  • 0-10V dimming as standard
  • DLC listed
  • 5-year limited warranty

Specifications

Wattage
30 / 35 / 40 W
Lumens
4,200 to 5,600 lm
Efficacy
up to 140 lm/W
Colour temperature
3500K / 4000K / 5000K / 6500K
Voltage
120 to 277V
Warranty
5-year limited warranty
CRI
Ra 80
Power factor
> 0.9
Dimensions
48.03" x 2.95" x 2.99" (1220 x 75 x 76mm)
CCT note
The spec sheet also shows a 5700K step. Confirm availability on your quote.
Sensor jack
This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here; a 2.5mm head will not seat in this base.

Construction

  • Steel housing, 2.95" x 2.99" (75 x 76mm) section
  • 4FT overall 48.03" (1220mm); 8FT overall 95.98" (2438mm)
  • Frosted lens with a screw-free end cover

Electrical

  • Input 120-277VAC
  • 0-10V dimmable driver
  • PF > 0.9
  • Power selectable by DIP; CCT selectable across five steps

Installation

  • Surface mount, suspended, or recessed
  • Sensor and Bluetooth modules can be fitted in the field
  • Sensor base wiring: black and white VCC, pink GND, purple 0-10V

Ideal applications

  • Warehouses
  • Workshops
  • Retail stockrooms
  • Corridors
  • Parking structures
  • Utility rooms

Downloads

Spec sheet (PDF): Gielight-LED-Linear-Strip-ST.pdf

Complete your setup

Pick the add-ons you need and add everything in one tap.

Gielight ST 4ft LED Linear Strip 30-40W PIR Motion Sensor, 2.5mm Jack (ANT-1-4T-PR) Microwave Motion Sensor, 2.5mm Jack (HSE-SM5L-2A) Bluetooth + Microwave Motion Sensor, 2.5mm Jack (HSE-BSM5L-2A) Remote Controller (RC-100) Infrared Remote Control, LCD (HD06R) LED Light Connector Safety Cable and V-Hook
  • $234.00
  • $8.50
  • $8.50
  • $21.00
  • $14.50
  • $19.00
  • $5.25
  • $5.25

Total price: $0.00

Volume discount applies to your product total on your quote.

Anything else for this fixture?

PIR Motion Sensor, 2.5mm Jack (ANT-1-4T-PR) PIR Motion Sensor, 2.5mm Jack (ANT-1-4T-PR) $8.50
Microwave Motion Sensor, 2.5mm Jack (HSE-SM5L-2A) Microwave Motion Sensor, 2.5mm Jack (HSE-SM5L-2A) $8.50
Bluetooth + Microwave Motion Sensor, 2.5mm Jack (HSE-BSM5L-2A) Bluetooth + Microwave Motion Sensor, 2.5mm Jack (HSE-BSM5L-2A) $21.00
Remote Controller (RC-100) Remote Controller (RC-100) $14.50
Infrared Remote Control, LCD (HD06R) Infrared Remote Control, LCD (HD06R) $19.00
LED Light Connector LED Light Connector $5.25
Safety Cable and V-Hook Safety Cable and V-Hook $5.25

Compare other brands

The same kind of fixture from the other manufacturers we carry.

Questions about this fixture

What wattage, color temperature and voltage options does it have?

Wattage: 30 / 35 / 40 W. Color temperature: 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.

Does it come with a sensor or controls?

Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.

What certifications does it have?

Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.

What is the warranty?

Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.

Is there a spec sheet?

Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)

Is there a minimum order, and how does shipping work?

No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
