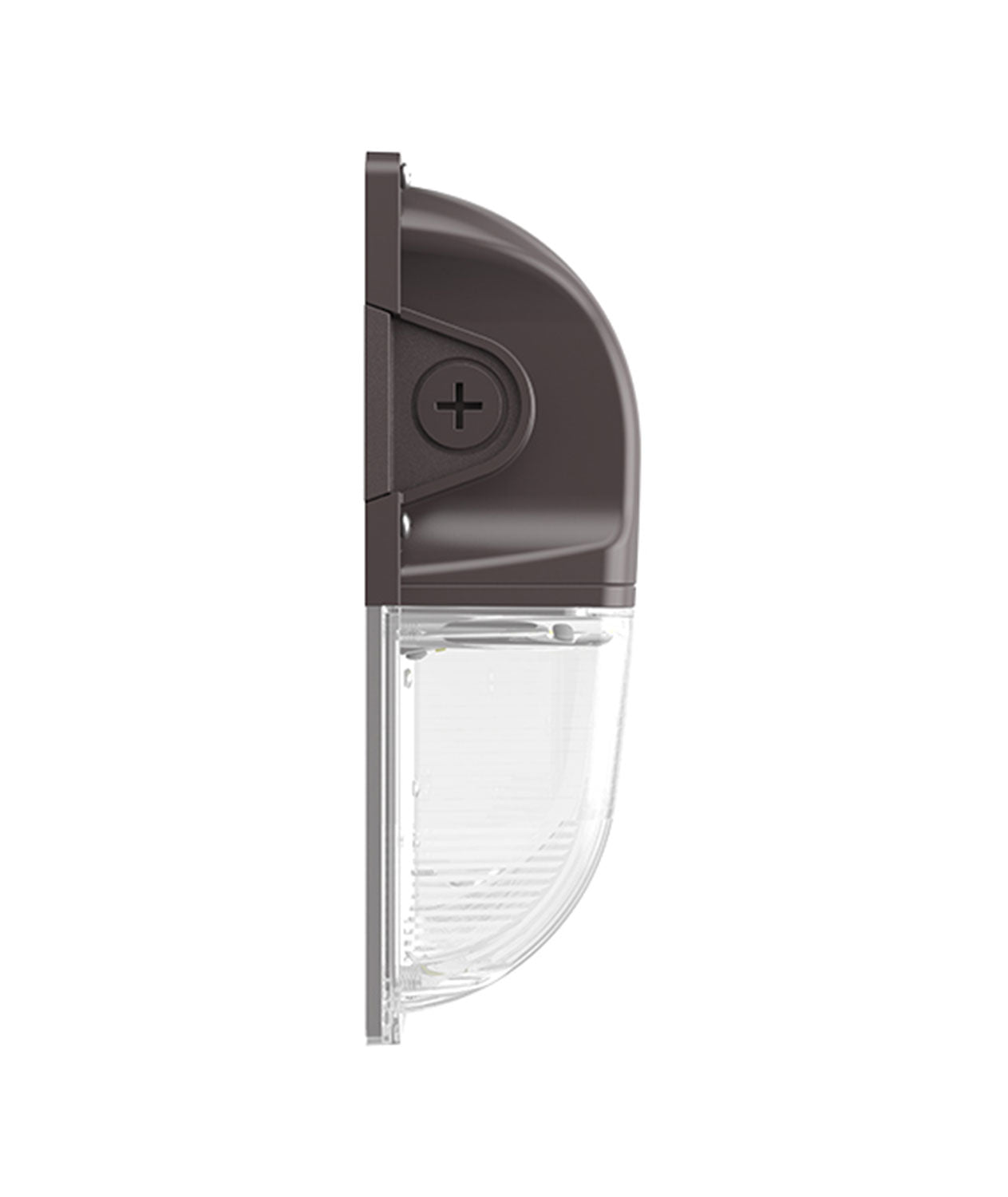

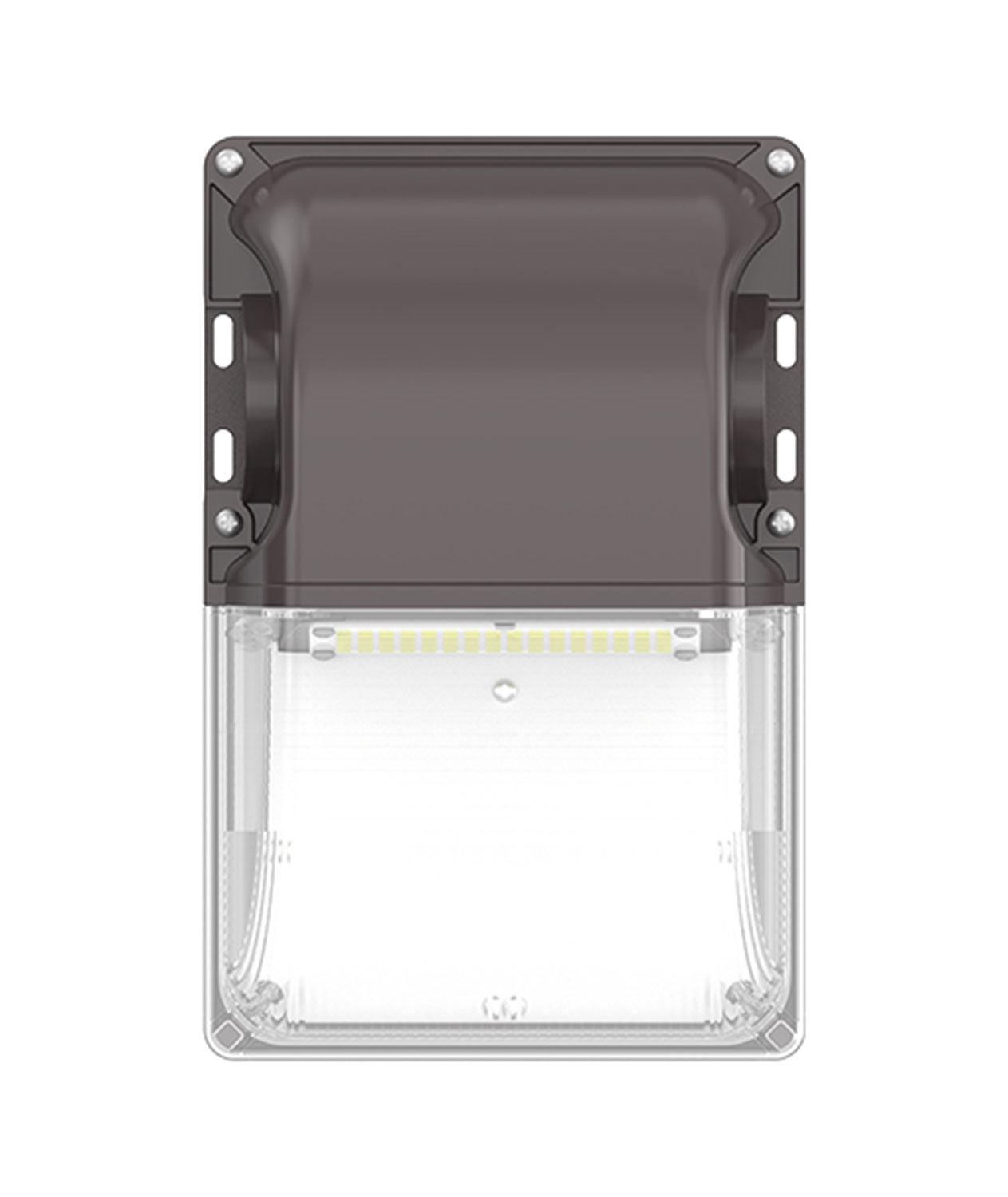

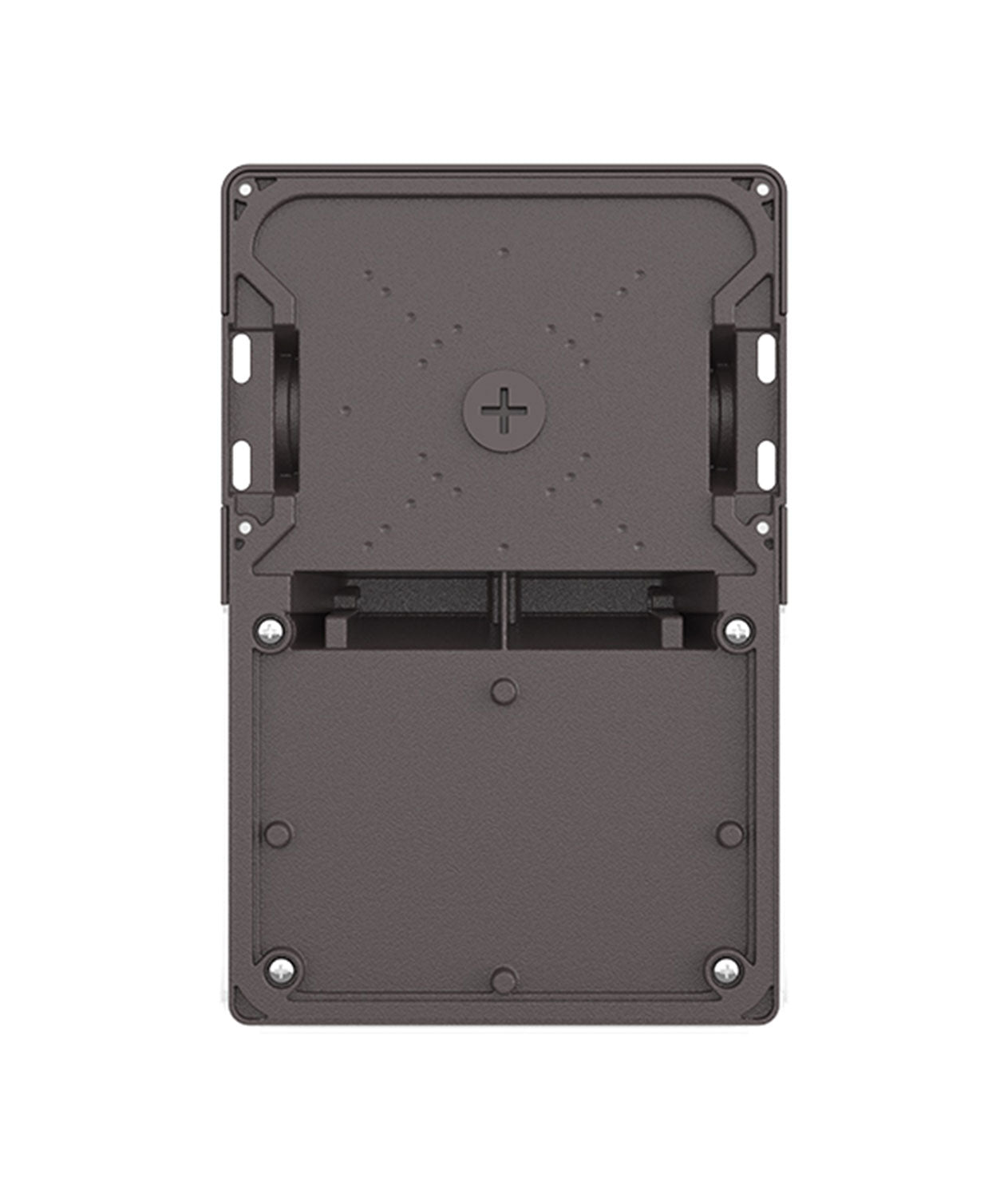

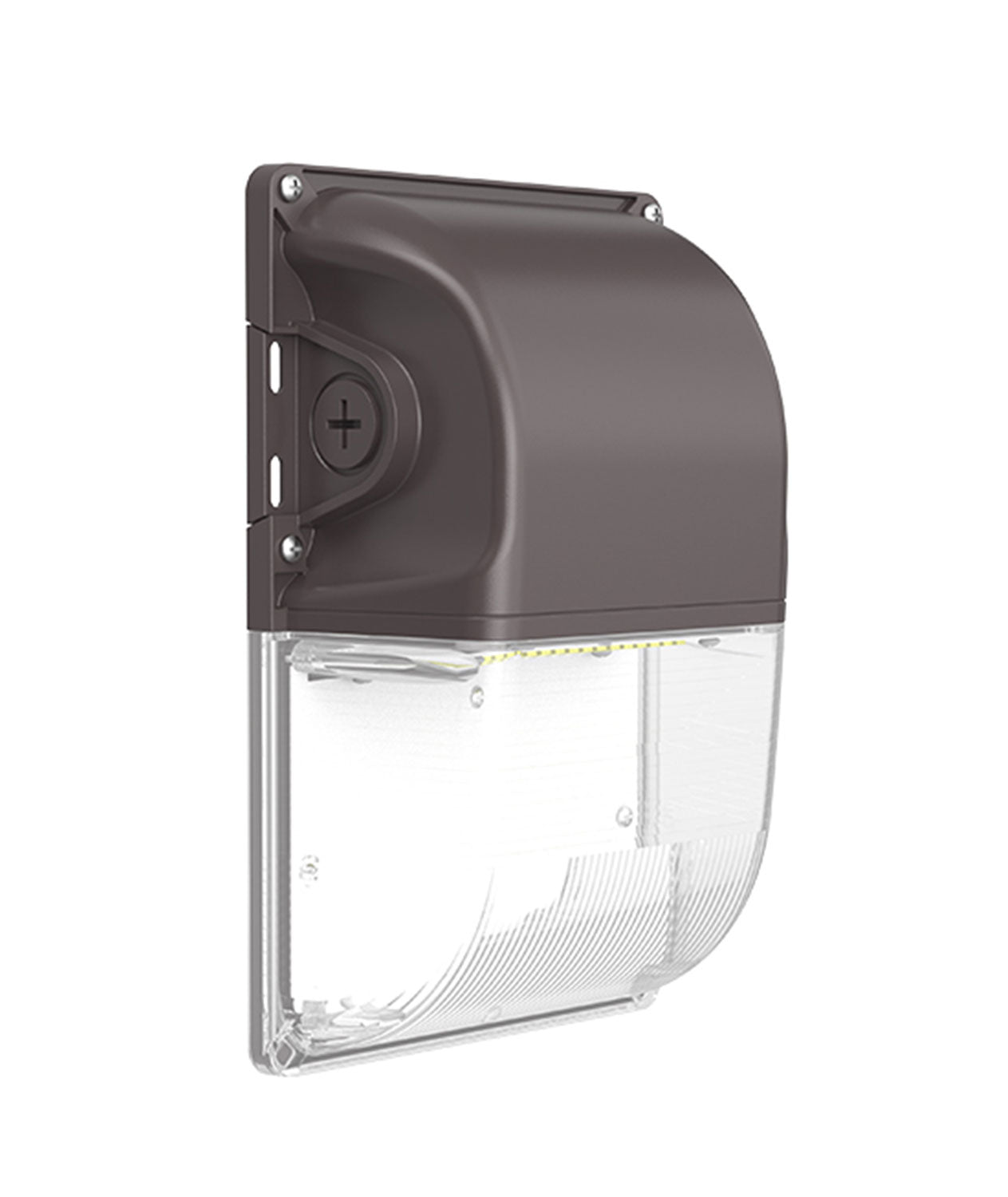

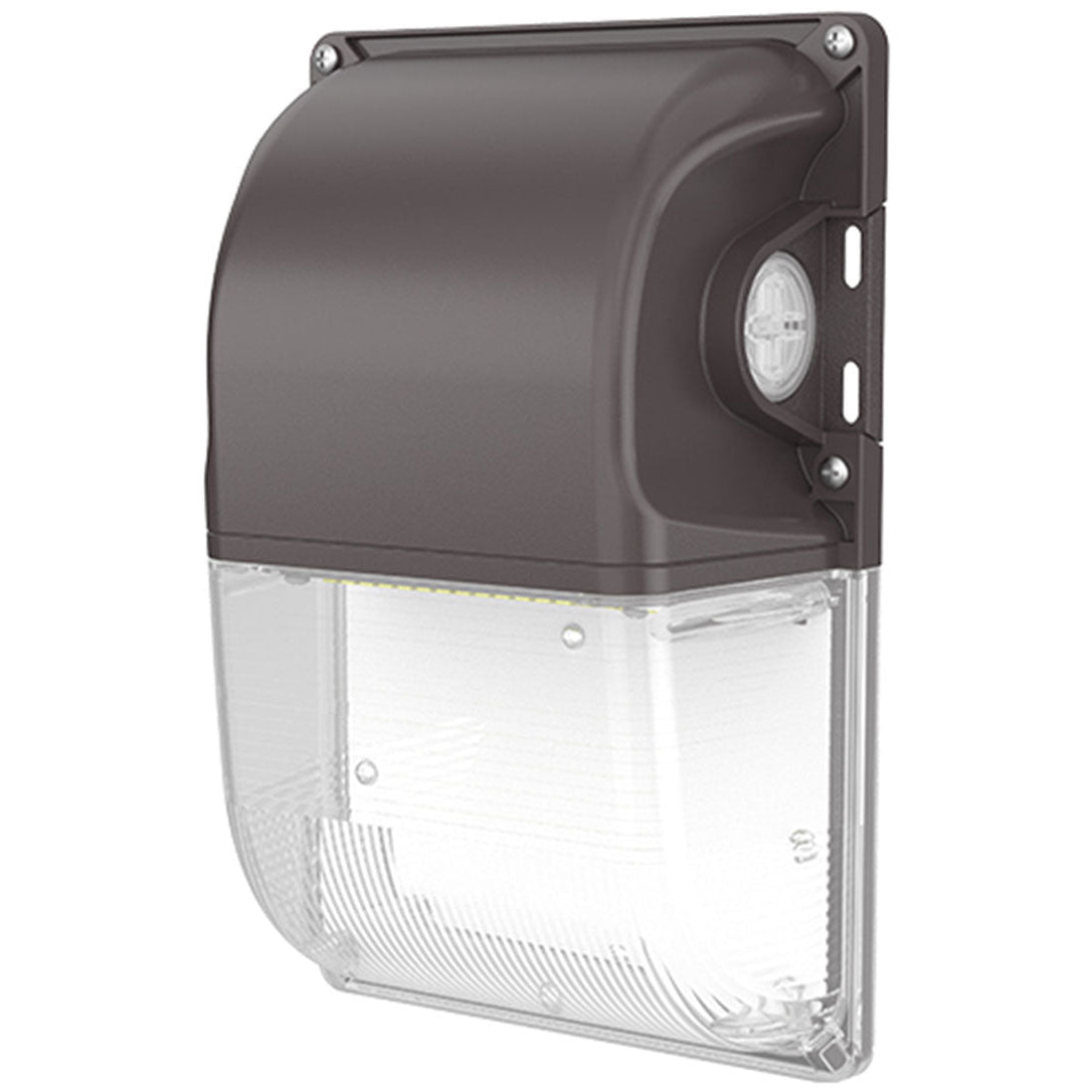

JEE WP10 Mini LED Wall Pack 15-30W
Product Number:J-WP10-30W-PCP-3CCT
Mini wall pack in ADC12 die-cast aluminium with a polycarbonate lens. Three switchable wattages, three switchable CCTs, dusk-to-dawn photocell.
Specifications
Wattage
15 / 20 / 30 W
Lumens
max. 3,900 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
> 80
Ingress rating
IP65
Surge protection
2kV
Operating temp
-20°C to 45°C
Construction
- ADC12 aluminium die casting
- Polycarbonate lens
- IP65 rated
Electrical
- AC120-277V, 0-10V dimming
- Surge protection L/N 2kV
- CCT and wattage selectable
Installation
- Photocell dusk-to-dawn function available
Ideal applications
- Security lighting
- Entryways
- Stairwells
- Hallways
- Outdoor commercial
- Outdoor residential
