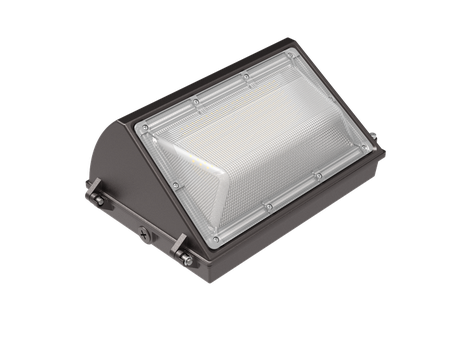

Gielight GL-WP4 LED Wall Pack 80-120W, Photocell
Product Number:GL-WP4-120W-HY-5000K (WIth photocell)
Die-cast wall pack with a photocell, three selectable wattages and three selectable CCTs on two DIP switches. Wall mount only, wet-location rated.
- 3 selectable wattages, 3 selectable CCTs on two DIP switches
- Photocell included
- UL Listed under file E503399
- DLC Premium
- Wet-location rated
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Wattage
80 / 100 / 120 W
Lumens
12,000 – 18,000 lm
Efficacy
up to 150 lm/W
Colour temperature
3000K / 4000K / 5000K
Voltage
120–277V
Dimming
14.32" x 9.18" x 6.42" (363.73 x 233.17 x 163mm)
Warranty
5-year limited warranty
CRI
Ra > 70
Power factor
> 0.95
THD
< 15% at full load
Rated life
> 54,000 hours
Operating temp
-30°C to 40°C
Dimensions
363.73 x 233.17 x 163mm
Housing note
The 60W GL-WP2 shares this exact housing. Only the 120W is stocked.
Efficacy conflict
The spec sheet and the price list both say 150 lm/W; the 2026-04 catalog says 140 lm/W. Two to one for 150, which is what is published here.
Lumens
calculated from rated efficacy
Construction
- Die-cast aluminium body
- High-impact polycarbonate diffused lens
- 363.73 x 233.17 x 163mm
Electrical
- Input 120-277VAC
- PF > 0.95
- THD < 15% at full load
- Switch 1 sets CCT 3000/4000/5000K, Switch 2 sets power 80/100/120W
- 0-10V dimming
Installation
- Wall mount only
- Wet location rated
- Photocell fits the knockout beside the conduit plug
- Operating range -30°C to 40°C
Ideal applications
- Building facades
- Entryways
- Perimeter lighting
- Security
- Loading docks
