JEE AR09 LED Area Light 300-500W with Photocell Base
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
-
Photocell OJ-M715
$6.75
-
Slip Fitter for 500W
$12.00
-
Trunnion Mount (TR) for AR09 500W
$12.00
-
Shorting Cap for Area Light
$2.50
- UL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-AR09-500W-L-PCX-3CCT-T3 |
| Fixture type | Area Lights |
| Family | AR09 Area Light |
| Color temperature (CCT) | 3000K, 4000K, 5000K |
| Input voltage | 120-277V |
| Controls | Photocell base |
| Certifications | UL, DLC |
| Product dimensions | 28.1 x 13.6 x 2.6 in (L x W x H) |
| Case pack quantity | 1 per case |
| Case pack dimensions (L x W x H) | 30.7 x 18.1 x 5.5 in |
| Case pack weight | 19.63 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

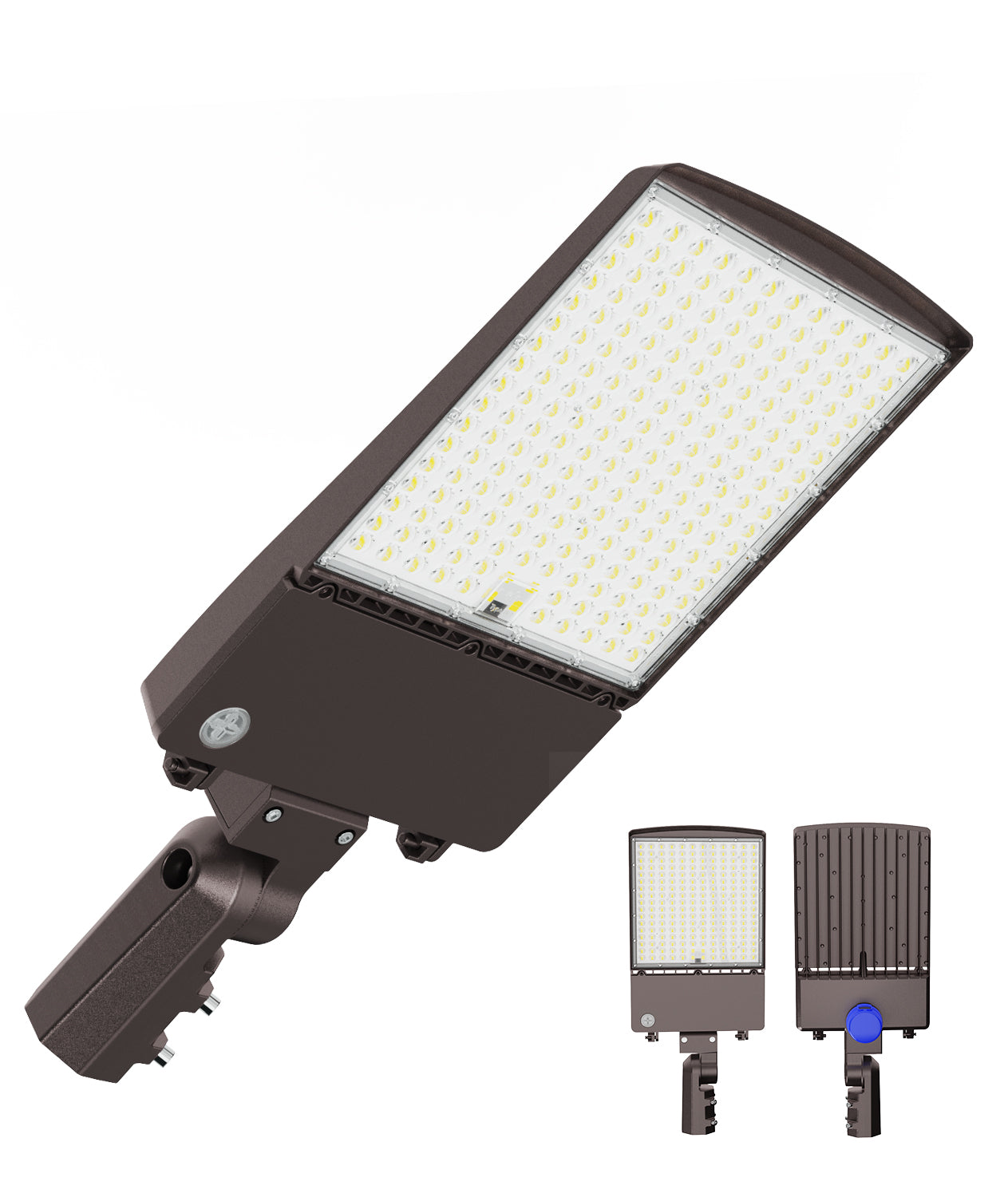

JEE AR09 shoebox area light. Die-cast aluminium with a T3 polycarbonate lens and clamshell access. Wattage and CCT are field-adjustable. Fitted with a photocell base for dusk-to-dawn control.
- 3 switchable wattages and 3 switchable CCTs on one SKU
- Up to 170 lm/W (160 lm/W on the 500W)
- Type III distribution
- IP65 die-cast aluminium with clamshell access
- Field-adjustable CCT and wattage
- UL listed, DLC Premium
- 5-year warranty
Specifications
Construction
- Die-cast aluminium housing
- Polycarbonate lens
- Clamshell design
- IP65 rated
Electrical

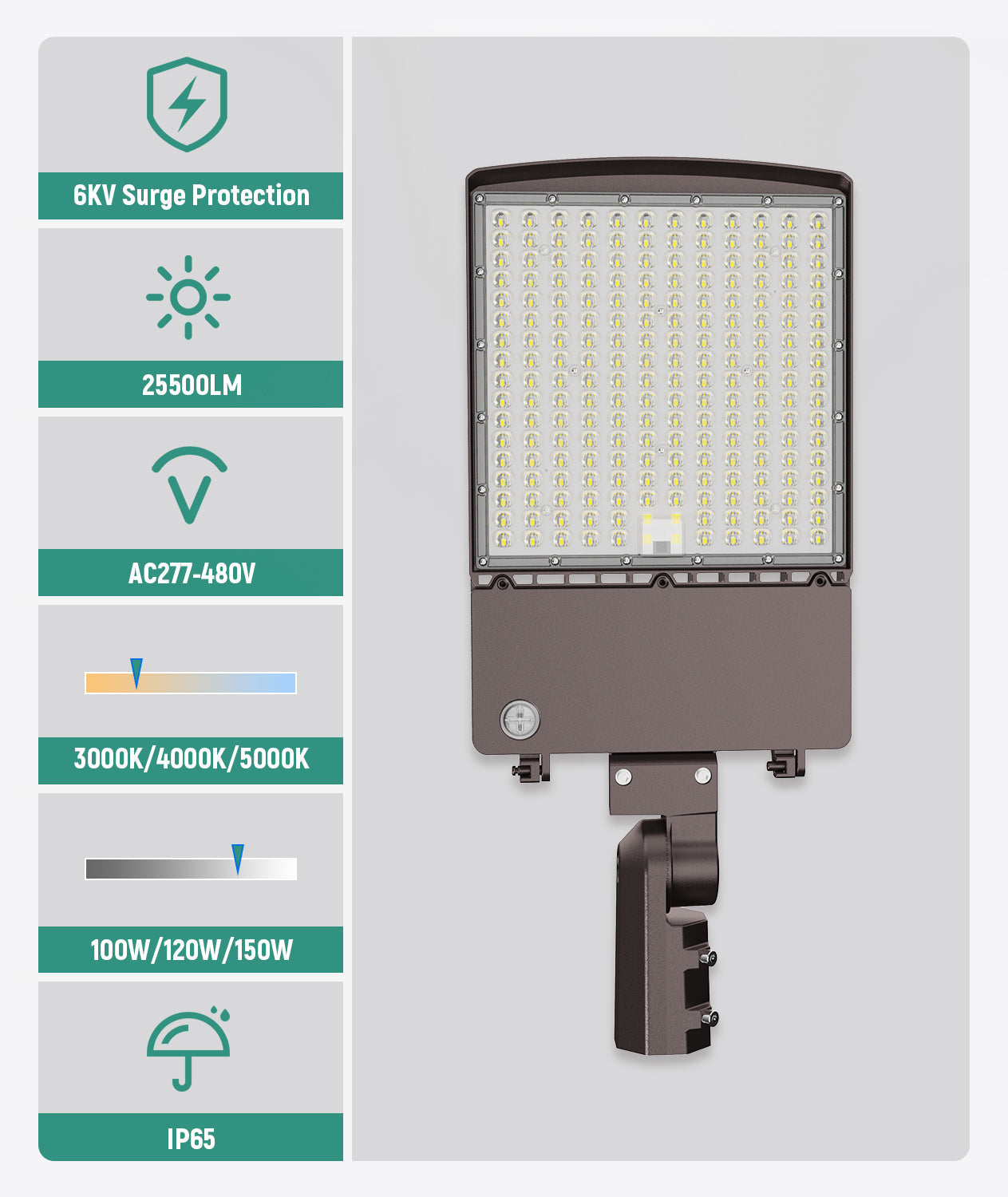

- AC120-277V or AC277-480V, 0-10V dimming
- Surge protection: 6kV on 150W, 10kV on 300W and 500W
- Field-adjustable CCT and wattage switches
Optics
- Type III light distribution
- T3 polycarbonate lens
Installation

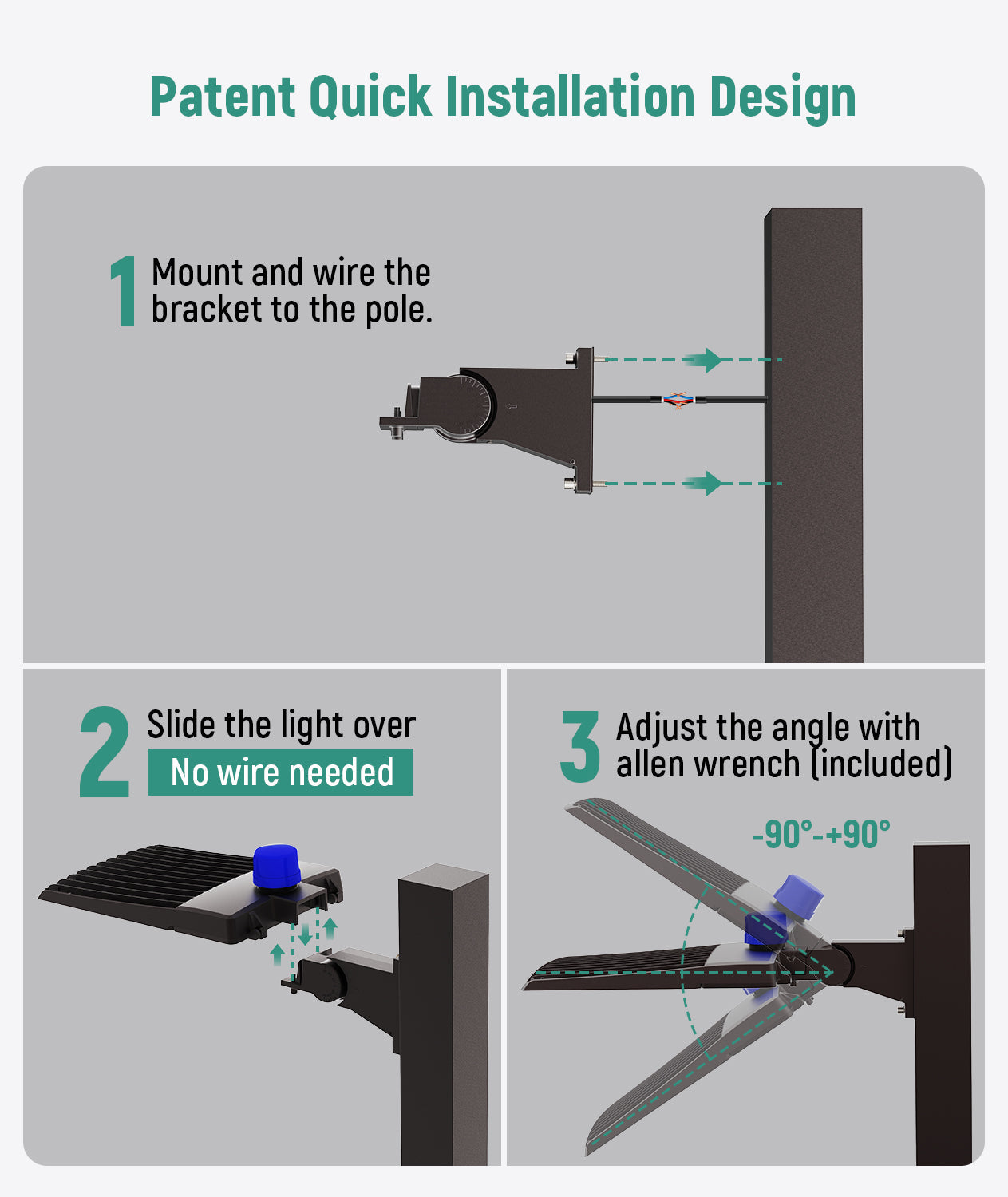

- Three mounting brackets available: slip fitter, direct mount, trunnion
- Plug-in and Zhaga socket microwave motion sensor available (factory)
- Dusk-to-dawn photocell optional
Ideal applications
- Parking lots
- Roadways
- Outdoor applications
Downloads
Spec sheet (PDF): JEE-Spec-J-AR09-Area-Light.pdf
Best uses
- Parking lots, roadways and other outdoor area lighting
- Installs with a slip fitter, direct mount or trunnion bracket
- Sites needing dusk-to-dawn control from a photocell
What's in the box
- One AR09 area light with Type III lens, packed one per carton (27.3 x 17.7 x 5.1 in, 17.6 lb gross)
Accessories you may need
- A mounting bracket: Slip Fitter for 500W, direct mount or trunnion
- A photocell rated for your supply, listed as sold separately on the spec sheet
- Shorting Cap, sold separately
- Glare shield or plug-in microwave motion sensor, also listed as sold separately
Product FAQs
Can I change the colour temperature?
Yes. It selects 3000K, 4000K or 5000K.
What voltage and dimming does it take?
120-277V with 0-10V dimming.
Is it rated for outdoor use?
Yes. It is IP65 with an operating range of -40C to 50C.
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $161.75
- $6.75
- $12.00
- $12.00
- $2.50
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
Photocell OJ-M715
$6.75
Slip Fitter for 500W
$12.00
Trunnion Mount (TR) for AR09 500W
$12.00
Shorting Cap for Area Light
$2.50
Compare other brands
The same kind of fixture from the other manufacturers we carry.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 300 / 350 / 400 / 450 / 500 W. Color temperature: 3000K, 4000K, 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Photocell base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: UL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
