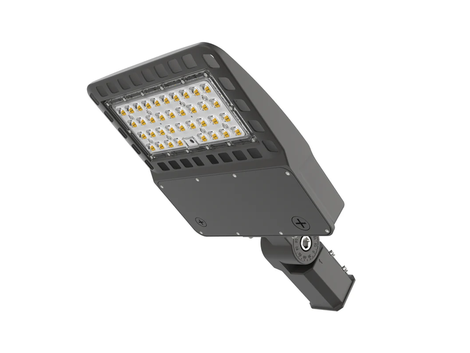

Gielight LED Shoebox Area Light 100-200W SXT-200W-H-H

Name: Gielight SXT LED Shoebox Area Light 100-200W
Brand: Gielight
SKU: SXT-200W-H-H-5000K
Price: 66.5 USD
Availability: InStock

Gielight SXT LED Shoebox Area Light 100-200W

Product Number:SXT-200W-H-H-5000K

$66.50

Add-ons for this fixture

Pick several at once

Sensors, connectors and parts that fit this fixture. They ship on the same freight.

PIR Motion Sensor, 3.5mm Jack (ANT-6-4T-PR) $13.00
Bluetooth + Infrared Sensor, 3.5mm Jack (ANT-6-4T-BLE-GE) $23.50
Microwave Motion Sensor, 3.5mm Jack (HD07VR-MH) $13.00
Remote Controller (RC-100) $14.50
Infrared Remote Control, LCD (HD06R) $19.00
Photocell Sensor, 3.5mm Jack (ANT-5-4T-PC) $13.00
Shoebox Mount, Type A Slip Fitter $13.00
Shoebox Mount, Type B Square and Round Pole $17.00
Shoebox Mount, Type D Slip Fitter / Trunnion $13.00

ETL Listed
5 Year Warranty

Automatic volume discount on your product total (freight not included)

$500 to $1,9995%
$2,000 to $3,9996%
$4,000 to $5,9997%
$6,000 to $7,9998%
$8,000 to $9,9999%
$10,000 to $19,99910%
$20,000 to $49,99912%
$50,000+15%

Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.

Spec sheet (PDF) From the manufacturer, opens in a new tab

Key specifications

Manufacturer	Gielight
Model / part number	`SXT-200W-H-H-5000K`
Fixture type	Area Lights
Family	Shoebox
Color temperature (CCT)	5000K
Input voltage	120-347V
Certifications	ETL
Warranty	5 year minimum manufacturer warranty
Shipping	Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works

Product family Shoebox

Factory controls No controls

Certifications ETL

Square-shouldered shoebox area light, three selectable wattages on a wide AC120-347V input. Single LED module in the 334mm body.

3 selectable wattages (100/150/200W)
AC120-347V wide input
IP65, wet location
150 lm/W
Type III / IV / V lens options
Four mount types available
5-year limited warranty

Specifications

Wattage

100 / 150 / 200 W

Lumens

15,000 to 30,000 lm

Efficacy

up to 150 lm/W

Colour temperature

5000K

Voltage

120 to 347V

Warranty

5-year limited warranty

CRI

Ra 70

IP rating

IP65

Housing length

334mm

CCT

Stocked in 5000K. The spec sheet lists 4000K to 5700K for the SXT family.

Sensor jack

This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here. A 2.5mm head will not seat in this base.

Construction

Die-cast aluminium fin-shape heat sink, free convection
PC milky white mask, seamless, no water leakage path
Housing length by output: 334mm at 200W, 455mm at 300W, 579mm at 400W

Electrical

Wide input AC120-347V
PF > 0.95
Watt tunable by DIP switch
0-10V dimmers supported

Installation

Slip fitter, rotatable round pole, square pole rotatable or trunnion mount
IP65, wet location
Type III, Type IV and Type V PC lenses available

Ideal applications

Parking lots
Car lots
Yards
Loading areas
Campuses

Downloads

Spec sheet (PDF): Gielight-LED-Shoebox-Light-SXT.pdf

Best uses

Pole mounted area and roadway lighting
Wet locations (IP65)
Sites that want photocell or microwave sensor control

What's in the box

One SXT shoebox light. Mounts are packed separately on the spec sheet, so order the mount you need

Accessories you may need

A mount: Type A Slip Fitter, Type B Square and Round Pole or Type D Trunnion
Audio jack sensor: HD07VR-PH infrared or HD07VR-MH microwave (set with the HD06R remote), or ANT-6-4T PIR (set with the RC-100 remote)

Product FAQs

Can I change the wattage on site?
Yes. It selects 100, 150 or 200W.

What voltage does it take?
120-347V with 0-10V dimming.

How do I add a sensor?
Unscrew the cover on the sensor base and plug in the sensor.

Compare other brands

The same kind of fixture from the other manufacturers we carry.

Questions about this fixture

What wattage, color temperature and voltage options does it have?

Wattage: 100 / 150 / 200 W. Color temperature: 5000K. Voltage: 120-347V.

Does it come with a sensor or controls?

It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.

What certifications does it have?

Listed by the manufacturer as: ETL.

What is the warranty?

Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.

Is there a spec sheet?

Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)

Is there a minimum order, and how does shipping work?

No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
