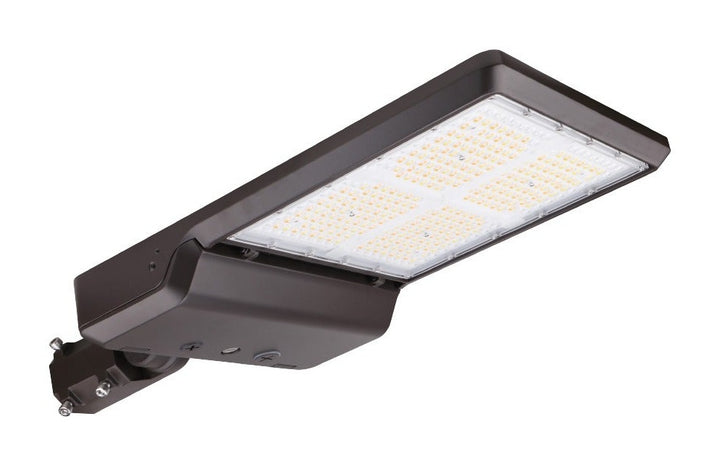

JEE AR08 LED Area Light 100-150W
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
-
Slip Fitter Mount, 08 Series
$12.00
-
Adjustable Arm Mount, 08 Series
$12.00
-
Trunnion Mount, 08 Series
$12.00
-
Photocell OJ-M715
$6.75
-
Shorting Cap for Area Light
$2.50
- UL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-AR08-150WBT3DA2 |
| Fixture type | Area Lights |
| Family | AR08 Area Light |
| Color temperature (CCT) | 3000K, 4000K, 5000K |
| Input voltage | 120-277V |
| Certifications | UL, DLC |
| Product dimensions | 22.59 x 10.39 x 3.31 in (L x W x H), with arm |
| Case pack quantity | 1 per case |
| Case pack dimensions (L x W x H) | 21.65 x 12.6 x 5.91 in |
| Case pack weight | 11.24 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
JEE AR08 shoebox area light. Die-cast aluminium with a UV-stabilised polycarbonate lens, Lumileds chips and a Sosen driver. Wattage and CCT set with tool-free switches.
- 3 switchable wattages and 3 switchable CCTs on one SKU
- Lumileds chips with a Sosen driver
- Type III distribution
- 10kV surge protection
- IP65 die-cast aluminium housing
- Tool-free wattage and CCT switches
- UL listed, DLC Premium
- 5-year warranty
Specifications
Construction
- Die-cast aluminium housing with powder coat finish
- UV stabilised polycarbonate lens
- IP65 rated
Electrical
- Lumileds chips, 140 lm/W
- Sosen LED driver, AC120-277V
- 0-10V dimming
- 10kV surge protection
- Tool-free wattage and CCT selectable switches
Optics
- Type III light distribution
Installation
- Slip-fitter, trunnion, yoke, adjustable arm mount or arm mount
- Photocell option
Ideal applications
- Parking lots
- Factories
- Playgrounds
- Retail centres
- Walkways
- Warehouses
Downloads
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $69.00
- $12.00
- $12.00
- $12.00
- $6.75
- $2.50
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
Slip Fitter Mount, 08 Series
$12.00
Adjustable Arm Mount, 08 Series
$12.00
Trunnion Mount, 08 Series
$12.00
Photocell OJ-M715
$6.75
Shorting Cap for Area Light
$2.50
Compare other brands
The same kind of fixture from the other manufacturers we carry.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 100 / 120 / 150 W. Color temperature: 3000K, 4000K, 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.
What certifications does it have?
Listed by the manufacturer as: UL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
