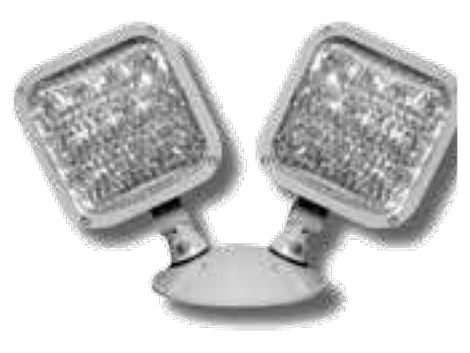

Name: TCP LED Outdoor Polycarbonate / Die-Cast Remote Head, Double Head
Brand: TCP
SKU: RHLEDW2
Availability: OutOfStock

TCP LED Outdoor Polycarbonate / Die-Cast Remote Head, Double Head

Product Number:RHLEDW2

$0.00

This item is priced on quote. Add any priced item to your quote and mention this part in the notes, or contact us and we will price it for you.

Product family Remote Head - Wet Location

Factory controls No controls

Certifications UL

Adjustable LED lamp head with chrome-plated metallized reflector and plastic lens. Powered from a low voltage source on the host unit; low voltage wiring not provided. Universal mounting plate included for wall or ceiling mount. White injection-molded thermoplastic, 5VA flame retardant. UL listed for wet locations (-30C to 50C).

Adds illumination to existing exit signs and emergency lights
Adjustable heads for optimal centre-to-centre spacing
Chrome-plated metalized reflector and plastic lens
Universal mounting plate for a single-gauge switch box
Wall or ceiling mount
UL listed for wet locations

Specifications

Wattage

1.0 W per head (2 heads)

Voltage

Low voltage from host unit

Dimming

10 3/8 in W x 6 3/4 in H

Warranty

Five-year manufacturer's warranty on electronics and housing

Min start temp

32°F (0°C)

Max operating temp

122°F (50°C)

Supply

Low voltage from host unit; wiring not provided

Mounting

Universal baseplate, wall or ceiling

Construction

White injection-molded thermoplastic, 5VA flame retardant

Electrical

Powered from a low voltage power source with low voltage wiring (not provided)

Optics

Long life, efficient, ultra-bright white LED lamp heads
1.0W (8 LED x 0.125W) per head
Chrome-plated metallized reflector and plastic lens
Adjustable lamp head(s) for optimal centre-to-centre spacing

Installation

Universal mounting baseplate included with mounting hardware
Maximum run distance is determined by system voltage, wire gauge and total wattage on the run
Wall or ceiling mount
