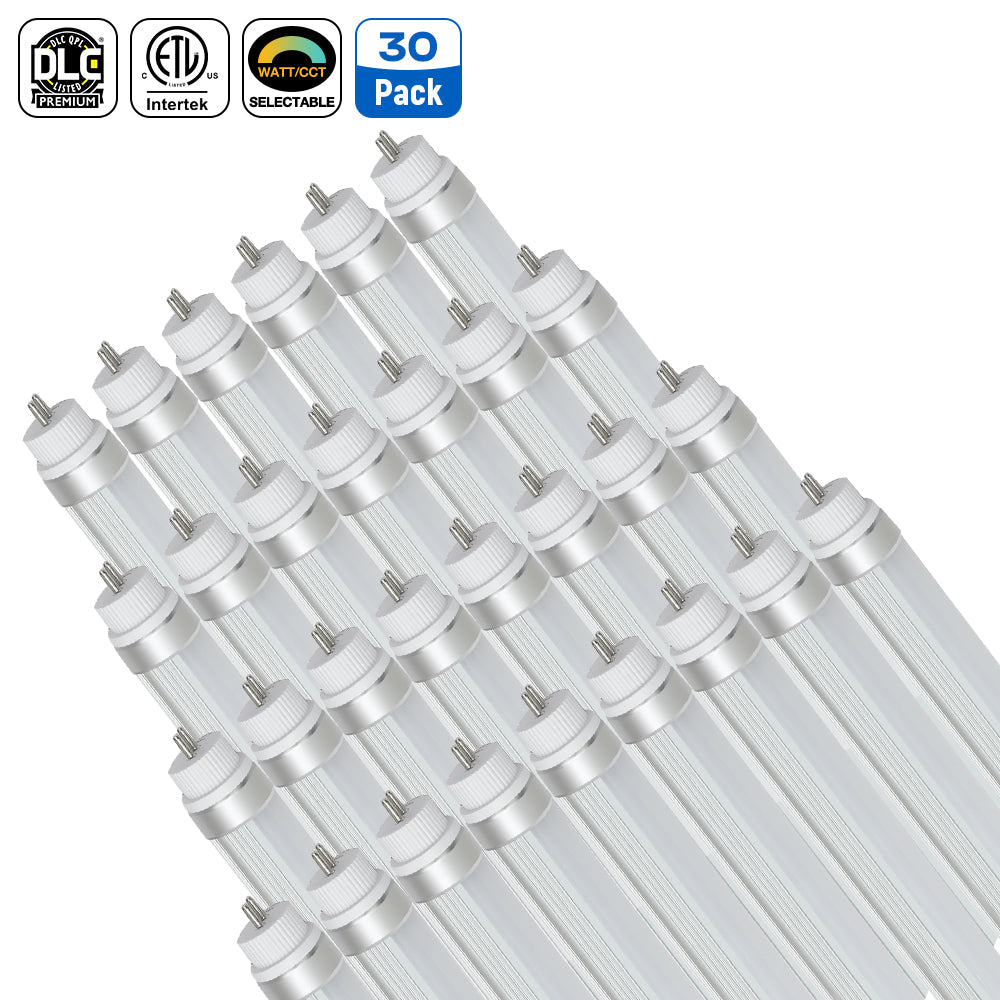

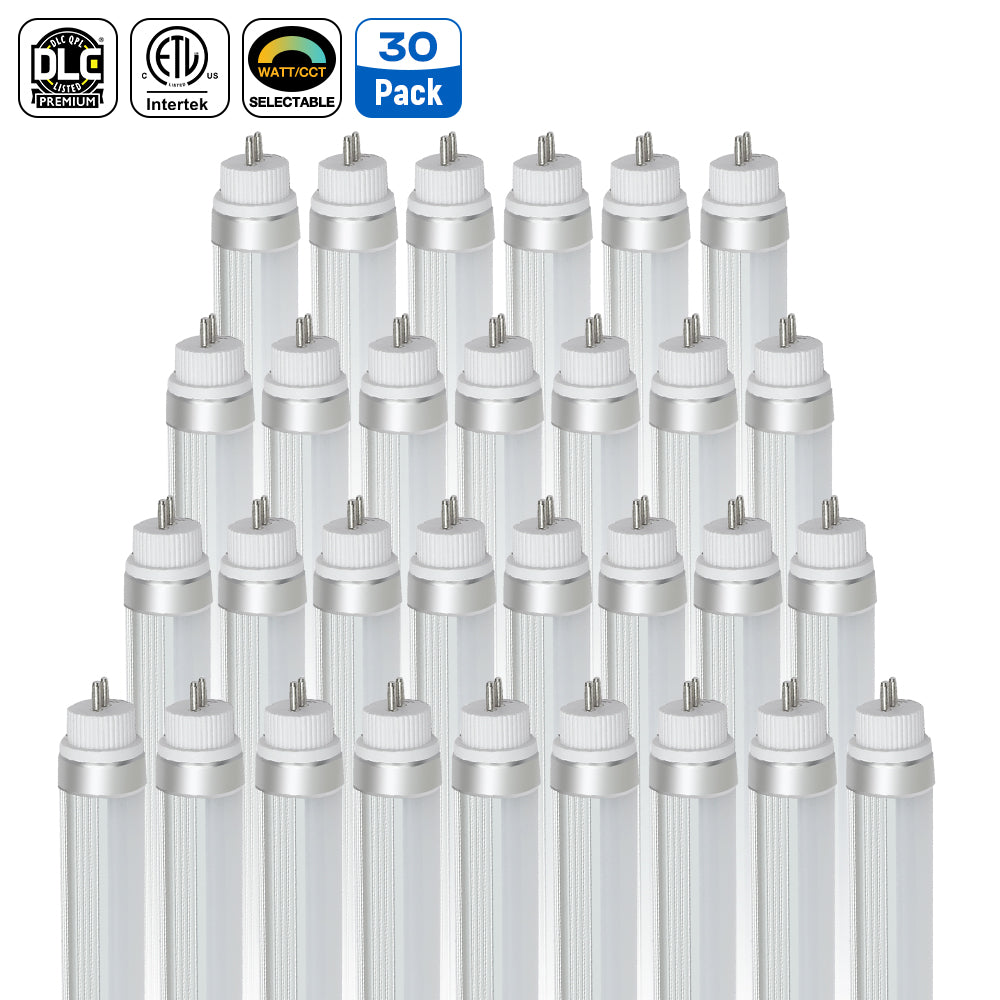

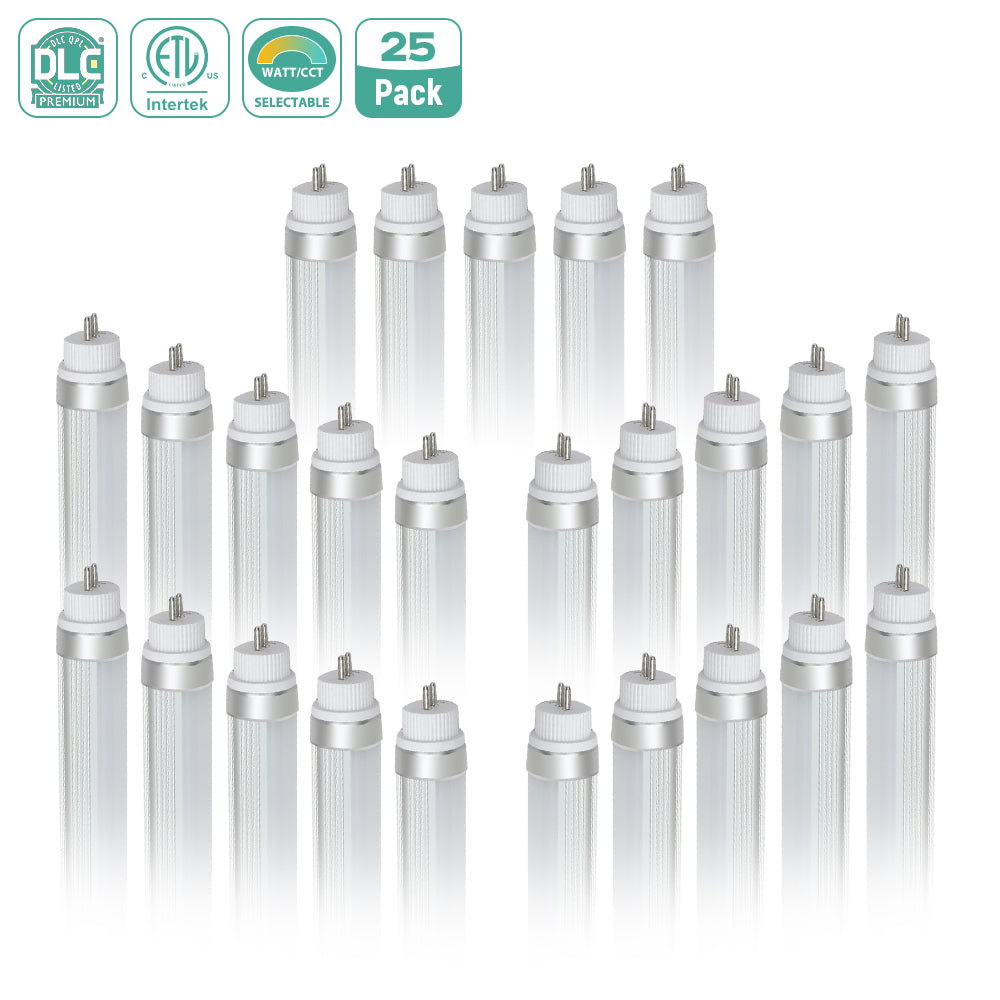

JEE 4ft T5 LED Tube 24W 5000K
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per tube. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more tubes and your cost per tube goes down.
- Packed tight for the trip. A sealed factory case keeps tubes snug and protected from the warehouse to your job site.
- Extras on hand. A few extra tubes cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | ORM-TF24-YY-5K |
| Fixture type | LED Tubes |
| Family | T5 Tube |
| Size | 4ft |
| Color temperature (CCT) | 5000K |
| Input voltage | 120-277V |
| Certifications | ETL |
| Product dimensions | 45.79 in long (with pins) |
| Case pack quantity | 25 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 46.86 x 6.3 x 6.5 in |
| Case pack weight | 17.42 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
4ft T5 LED tube with a milky cover, bypass ballast direct wire, double-ended. Medium bi-pin G5 lamp holder.
Specifications
Construction
- Aluminium + PC housing
- Milky cover
- Medium bi-pin (G5) lamp holder
Electrical
- Input voltage 120-277Vac 50/60Hz
- 150 lumens per watt
Installation
- Bypass ballast (direct wire)
- Double-end wiring
- Damp or dry locations only
- Operating temperature -20°C to 45°C
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Compare other brands
The same kind of fixture from the other manufacturers we carry.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 24 W. Color temperature: 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
