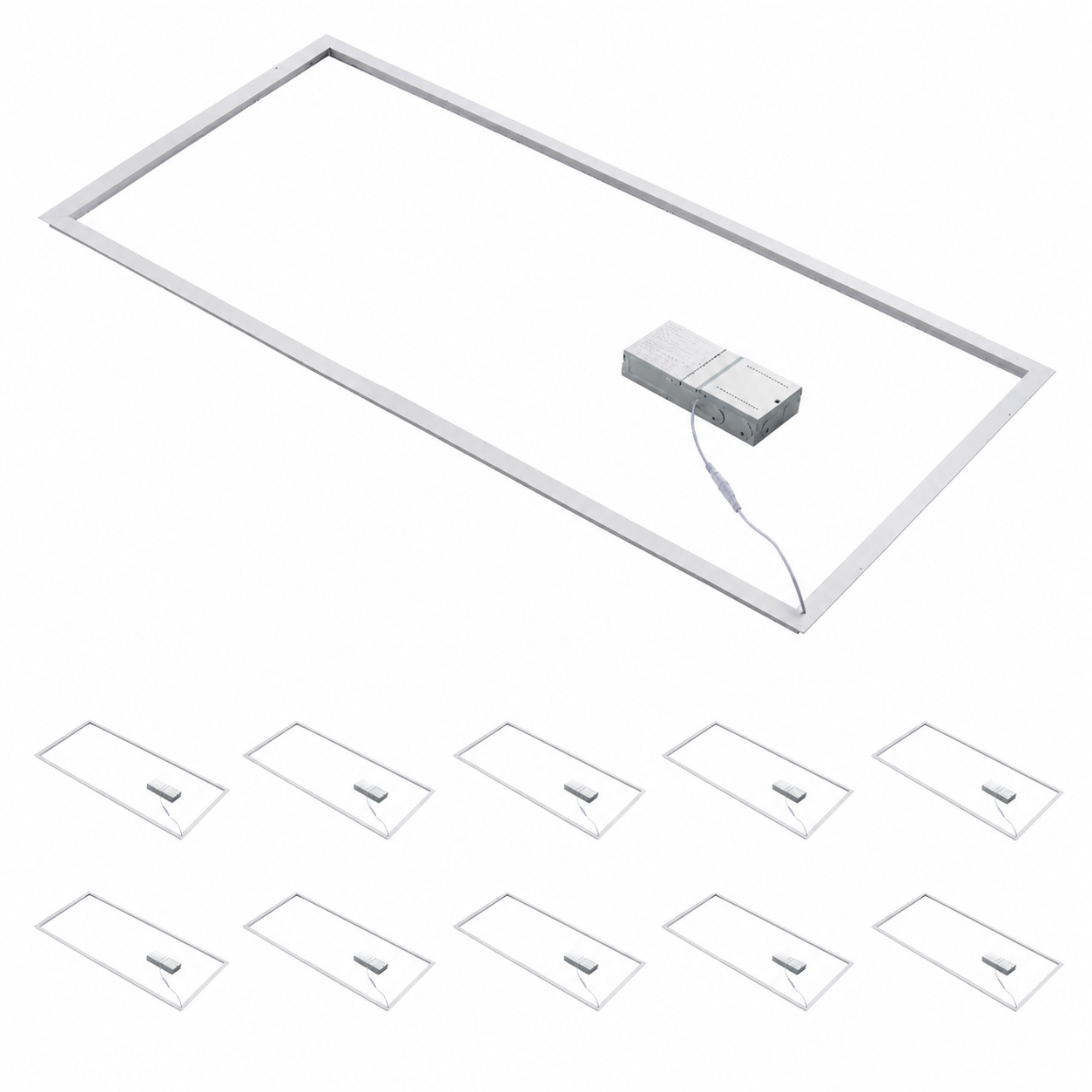

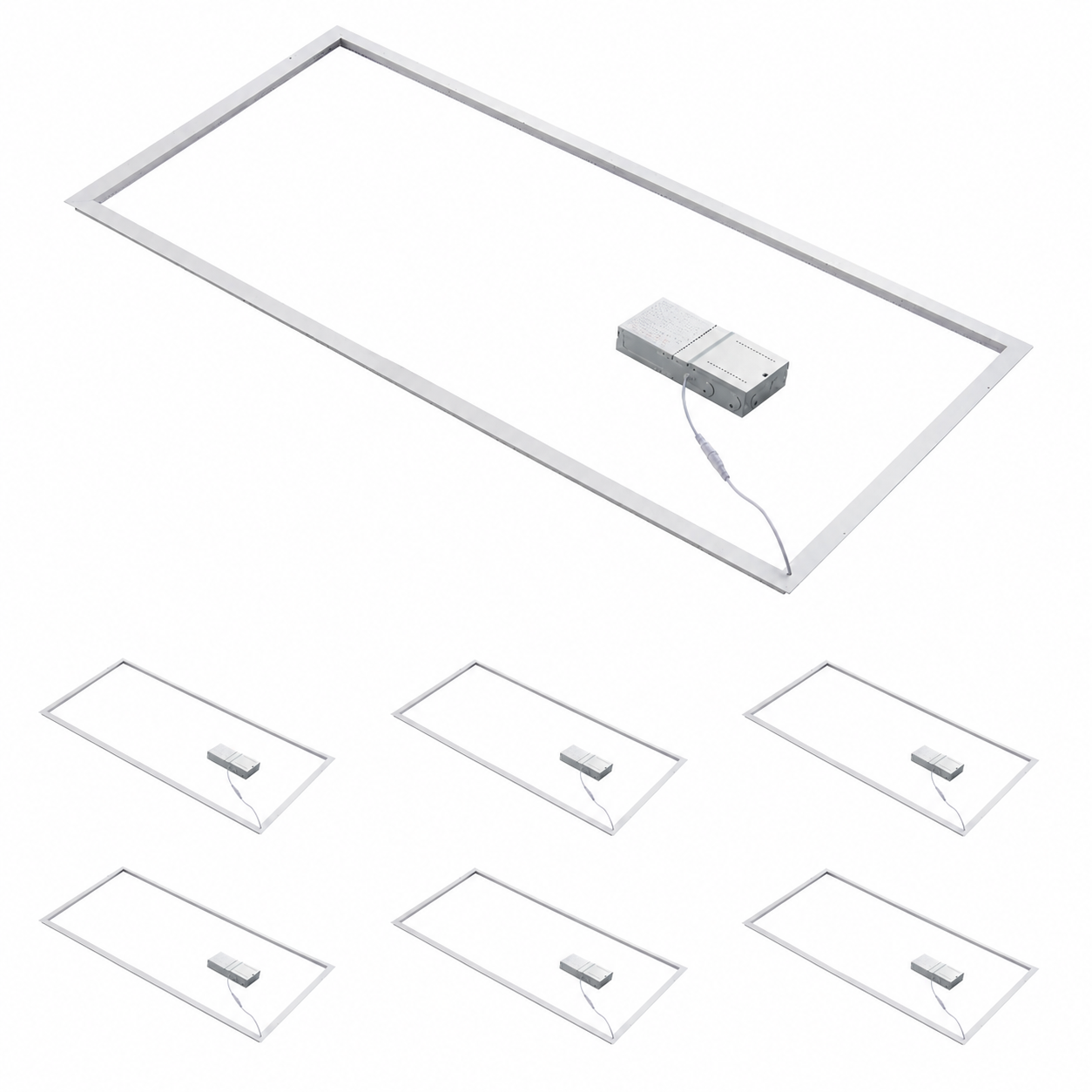

JEE 2x4 LED Frame Light 40-60W
JEE 2x4 LED Frame Light 40-60W

JEE 2x4 LED Frame Light 40-60W

Product Number:JEN-F4-K60-3065
$35.25

Compatible accessories

Sensors, mounts, drivers and controls that fit this fixture.

Emergency LED Driver – 8W, for fixtures ≤ 80W BLD-HM08D-YYY $56.00
Emergency LED Driver – 15W, for fixtures ≤ 150W BLD-HM15D-YYY $60.75
Emergency LED Driver – 25W, for fixtures ≤ 150W BLD-HM25D-YYY $77.25
Product family 2x4 Frame Light
Factory controls No controls
Certifications ETLDLC

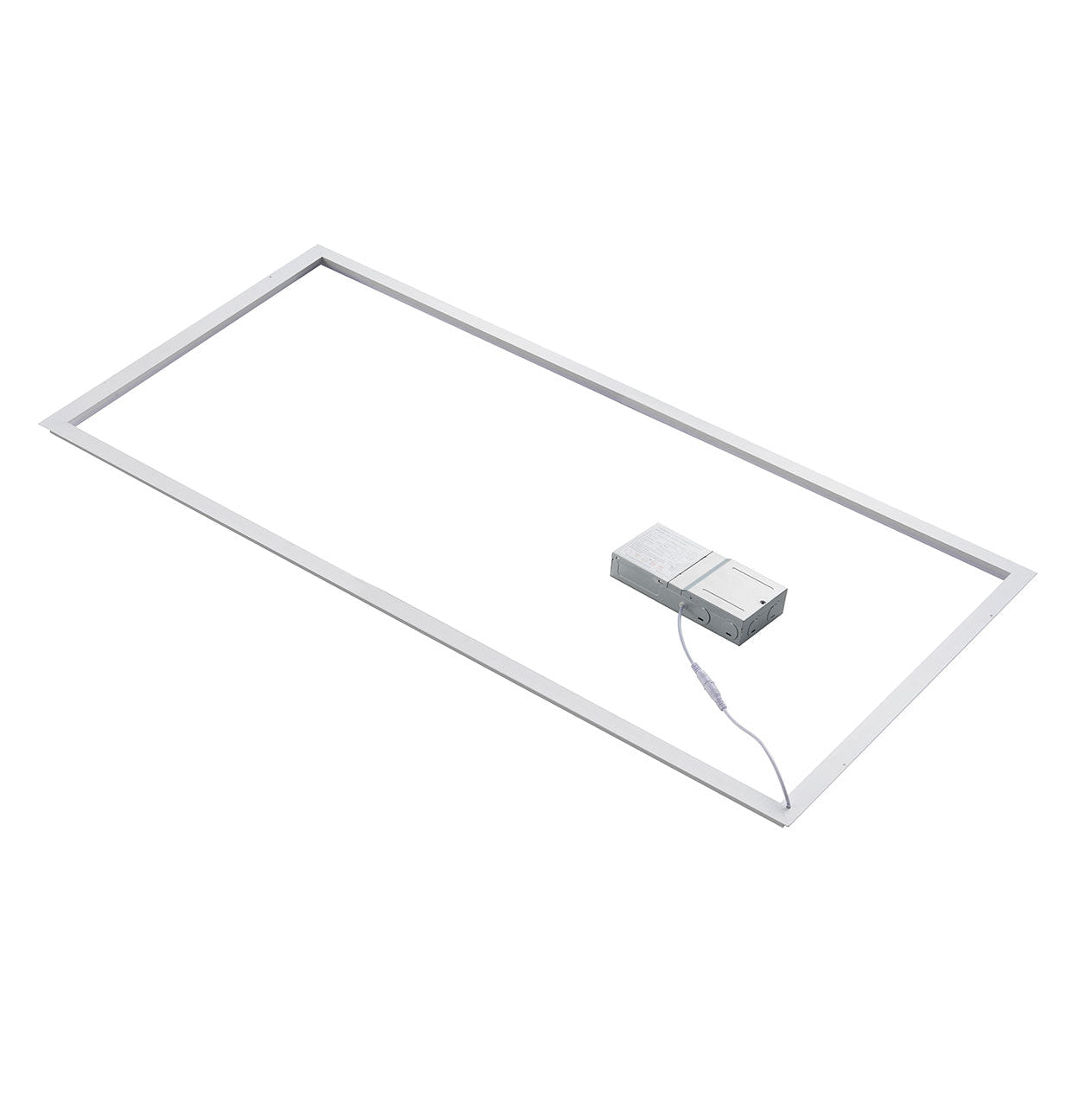

JEE 2x4 T-bar grid frame light. Three selectable wattages and five selectable CCTs on one SKU, with optics matched to a traditional LED panel.

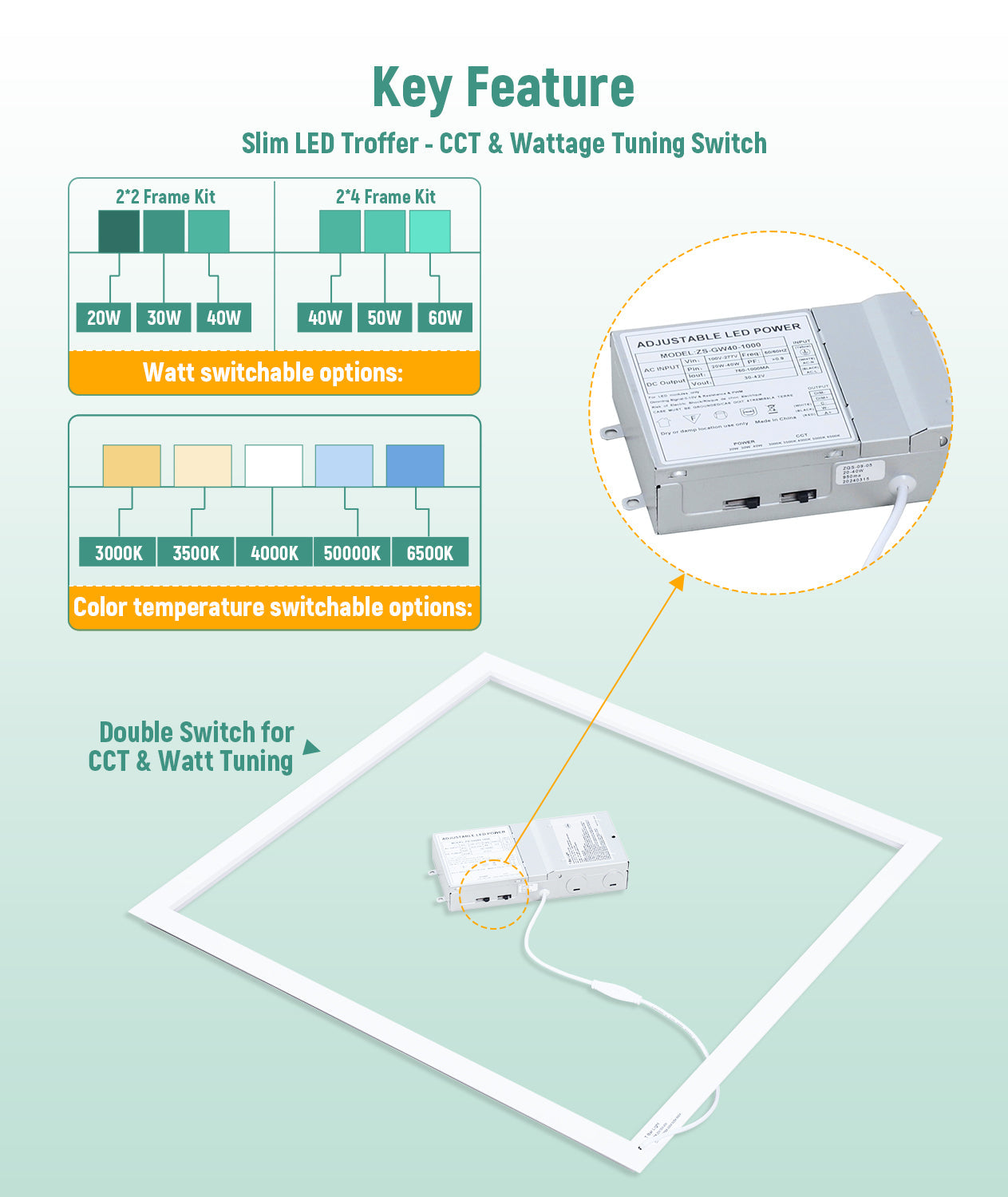

  • 3 selectable wattages and 5 selectable CCTs on one SKU
  • Frame form factor — sleek modern look, panel-equivalent output
  • 0-10V dimming as standard
  • IP40, 120° beam angle
  • ETL listed and suitable for damp location
  • DLC Premium
  • 5-year limited warranty

Specifications

Wattage
40 / 50 / 60 W
Lumens
5,000 – 7,500 lm
Efficacy
up to 125 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Dimming
47.76" x 23.75" x 0.6"
Warranty
5-year limited warranty
CRI
> 80
Beam angle
120°
Ingress rating
IP40
Operating temp
-20°C to +45°C
THD / PF
< 10% / > 0.95

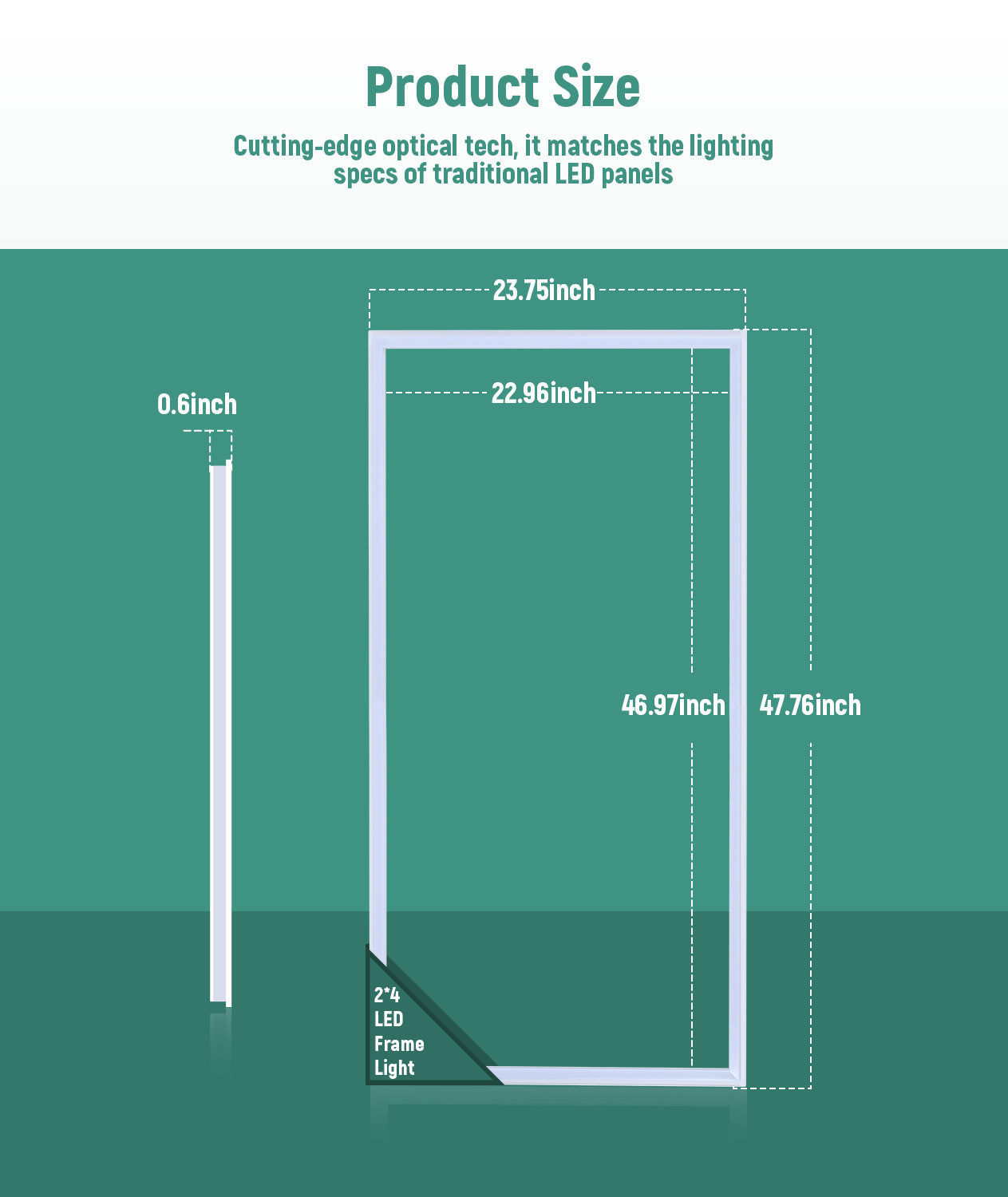

Dimensions
47.76" x 23.75" x 0.6"

Construction

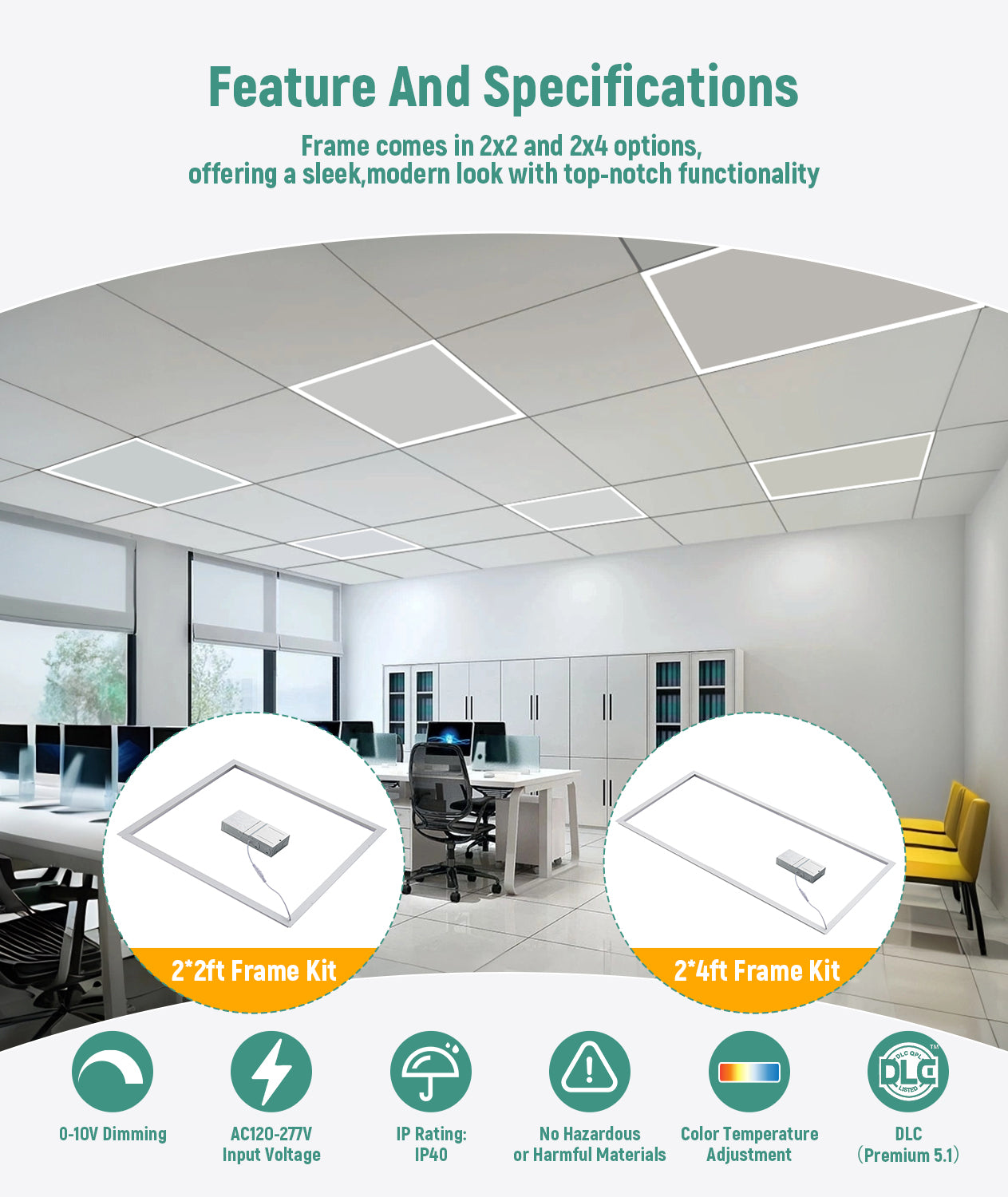

  • Available in 2x2 and 2x4, sleek modern frame
  • Wattage and CCT selectable to reduce stock SKUs
  • Optical design matches the lighting specs of traditional LED panels

Electrical

  • Input voltage 120-277V, 50/60Hz
  • 0-10V dimming
  • THD < 10%, power factor > 0.95

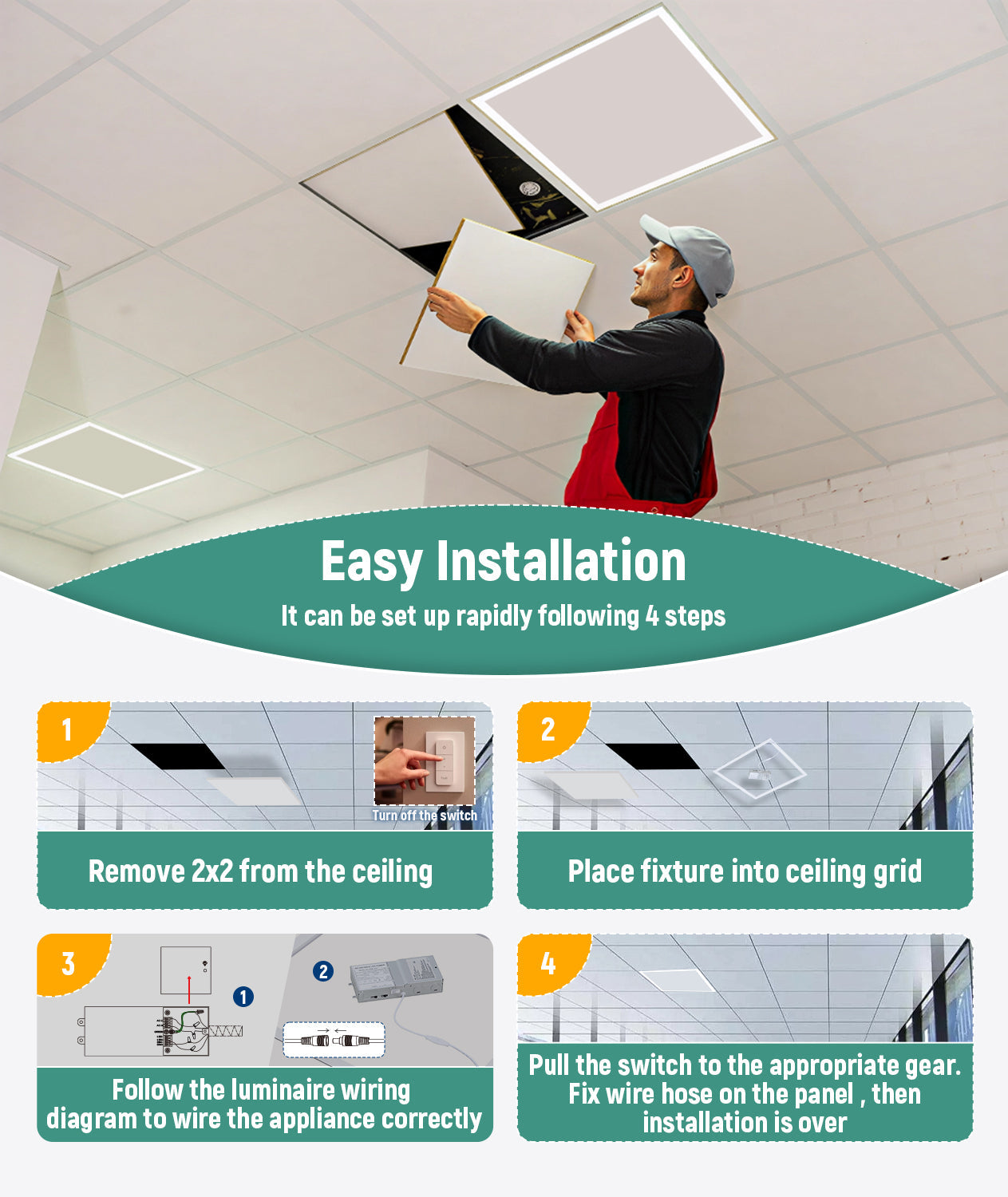

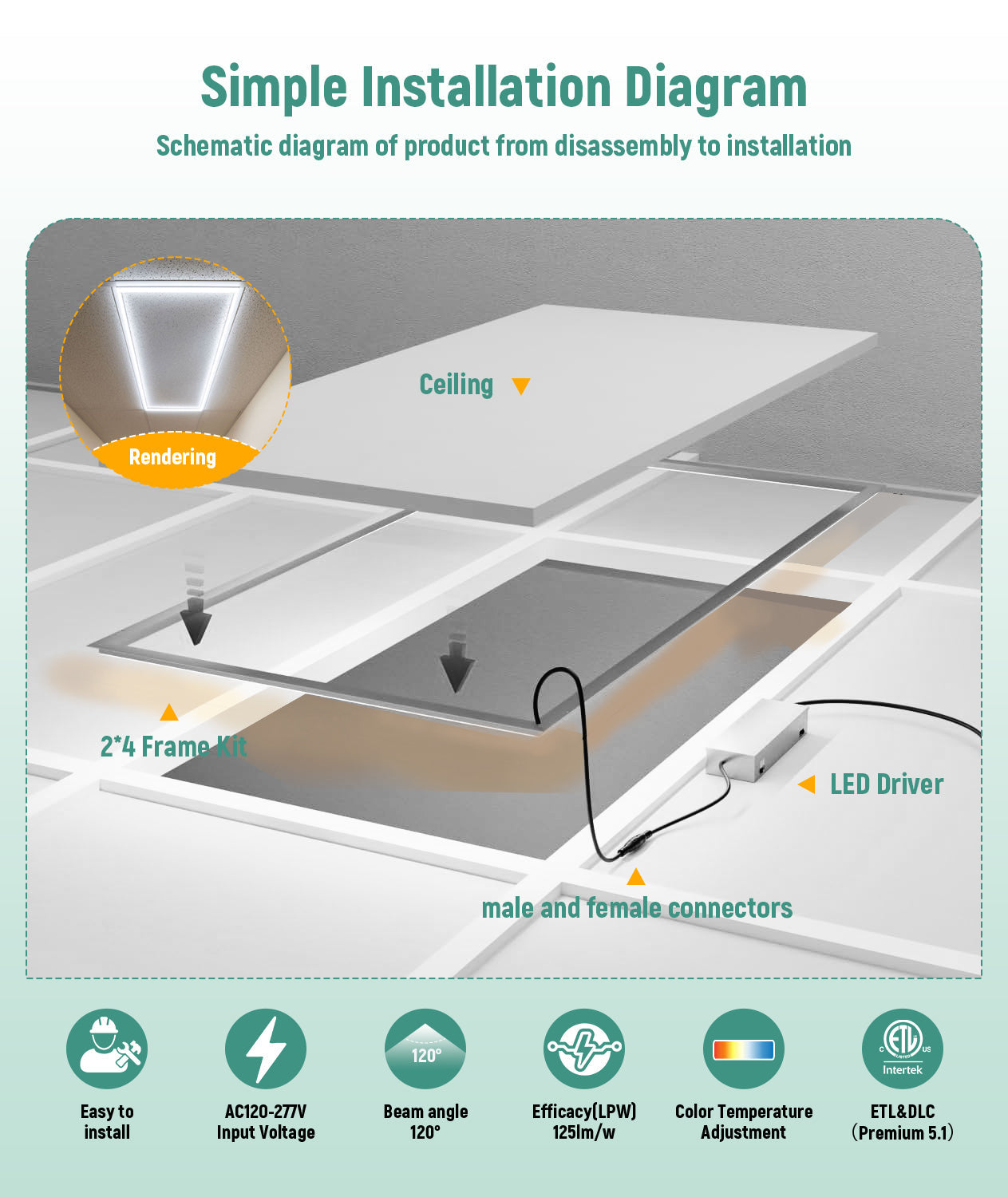

Installation

  • Recessed mounting with T-bar

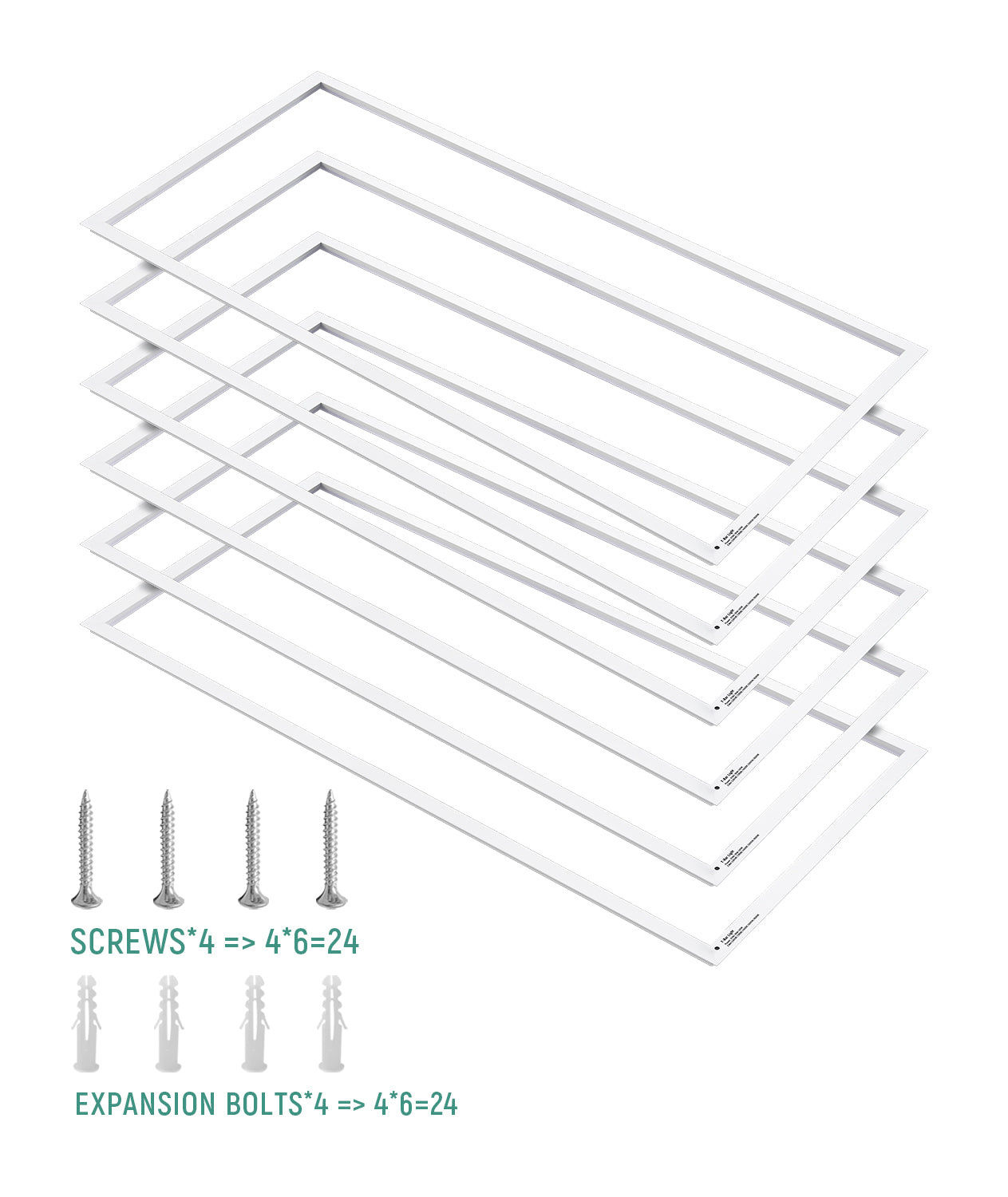

  • Suspended mounting with canopy and lifting ropes

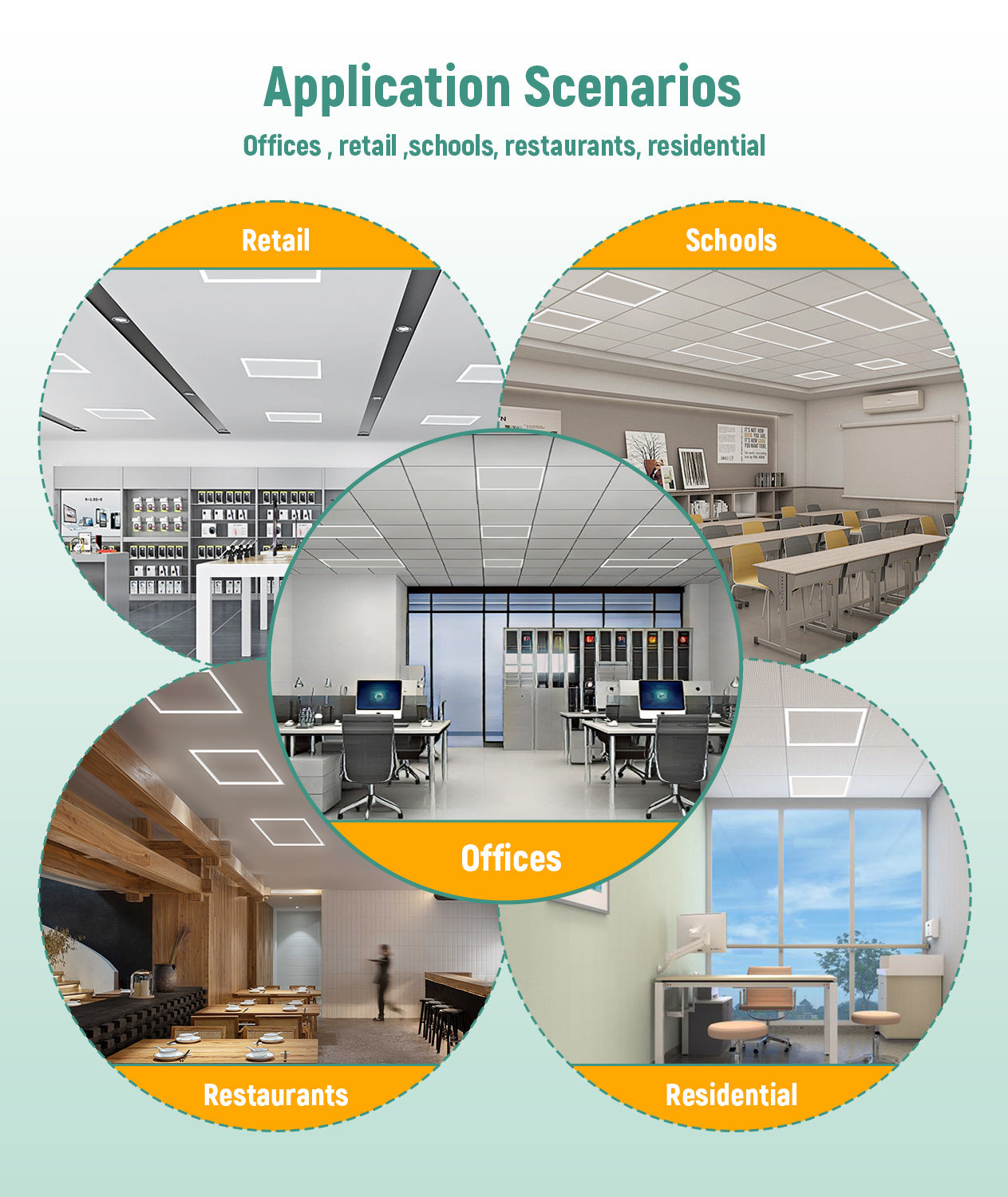

Ideal applications

  • Offices
  • Retail
  • Schools
  • Restaurants
  • Residential

Downloads

Spec sheet (PDF) — JEE-Spec-T-Bar-Grid-Frame-Light.pdf
