JEE J-UFO12-150W-120W-100W-H LED UFO high bay
JEE LED UFO High Bay 100-150W 277-480V

JEE LED UFO High Bay 100-150W 277-480V

Product Number:J-UFO12-150W/120W/100W-H
$62.50

Add-ons for this fixture

Pick several at once

Sensors, connectors and parts that fit this fixture. They ship on the same freight.

  • ETL Listed
  • 5 Year Warranty

Automatic volume discount on your product total (freight not included)

  • $500 to $1,9995%
  • $2,000 to $3,9996%
  • $4,000 to $5,9997%
  • $6,000 to $7,9998%
  • $8,000 to $9,9999%
  • $10,000 to $19,99910%
  • $20,000 to $49,99912%
  • $50,000+15%

Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.

Spec sheet (PDF) From the manufacturer, opens in a new tab

Key specifications

ManufacturerJEE Lighting
Model / part numberJ-UFO12-150W/120W/100W-H
Fixture typeHigh Bays
FamilyUFO High Bay
Color temperature (CCT)3000K, 4000K, 5000K
Input voltage277-480V
CertificationsETL
Product dimensions9.45 in dia, 5.08 in tall
Case pack quantity1 per case
Case pack dimensions (L x W x H)9.85 x 9.85 x 5.91 in
Case pack weight5.08 lbs (full case, gross)
Warranty5 year minimum manufacturer warranty
ShippingShips from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works
Product family UFO High Bay
Factory controls No controls
Certifications ETL

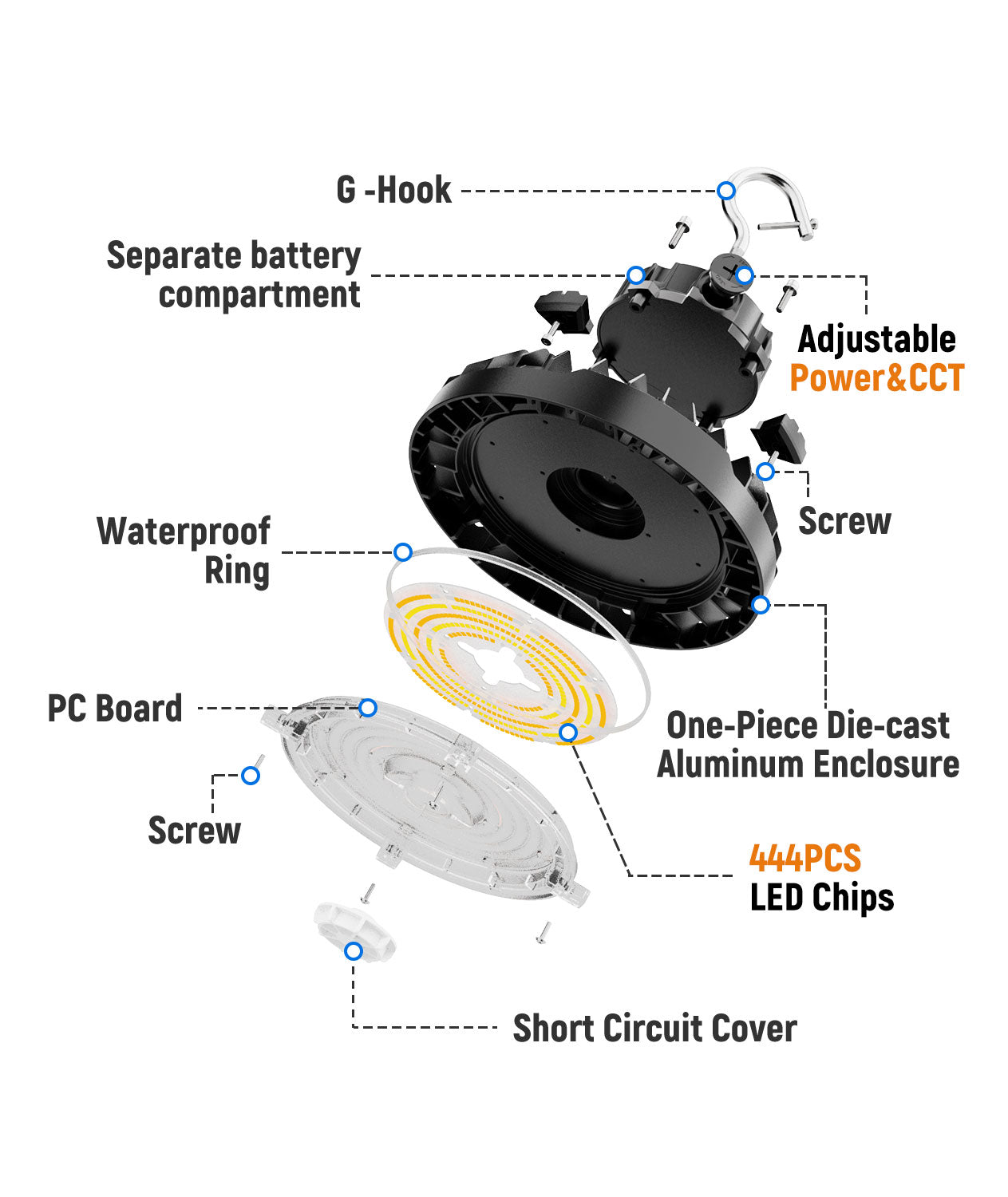

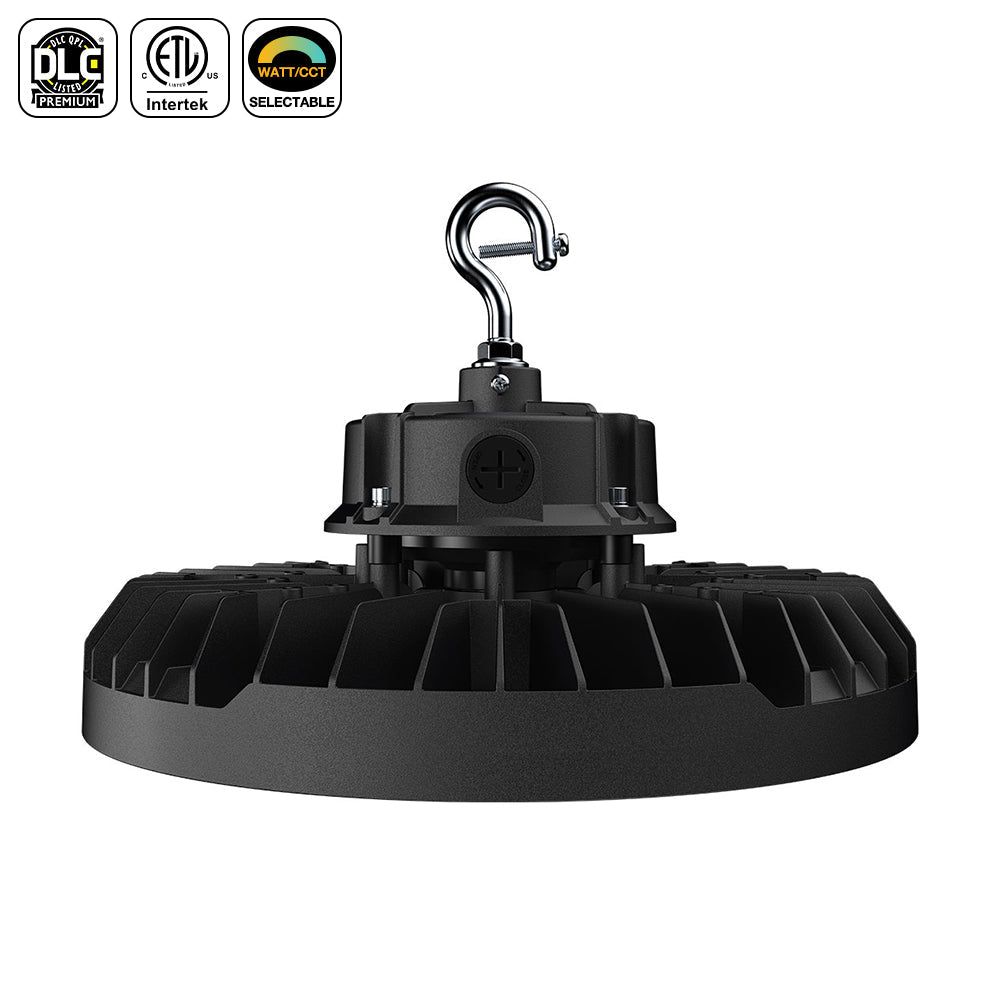

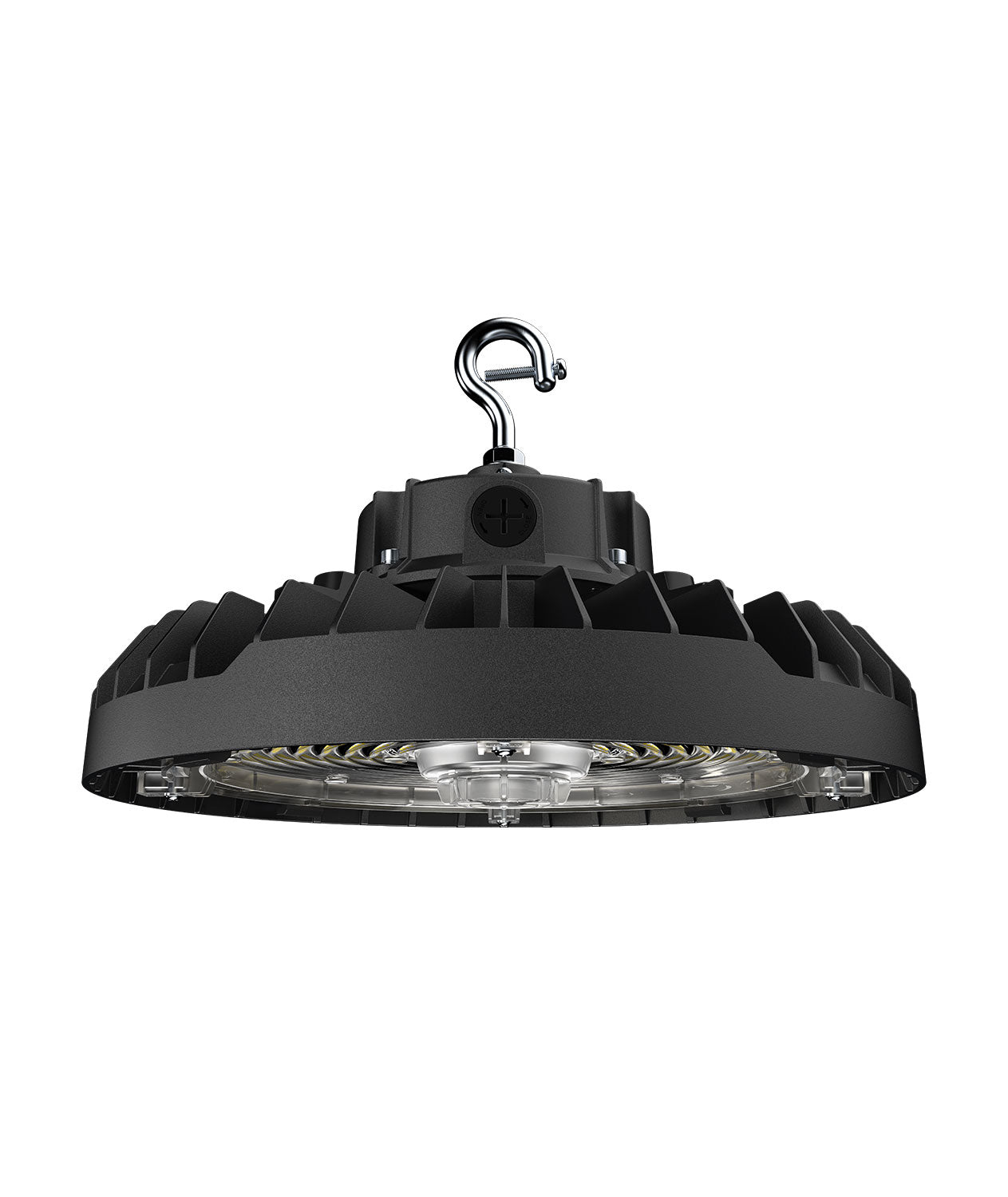

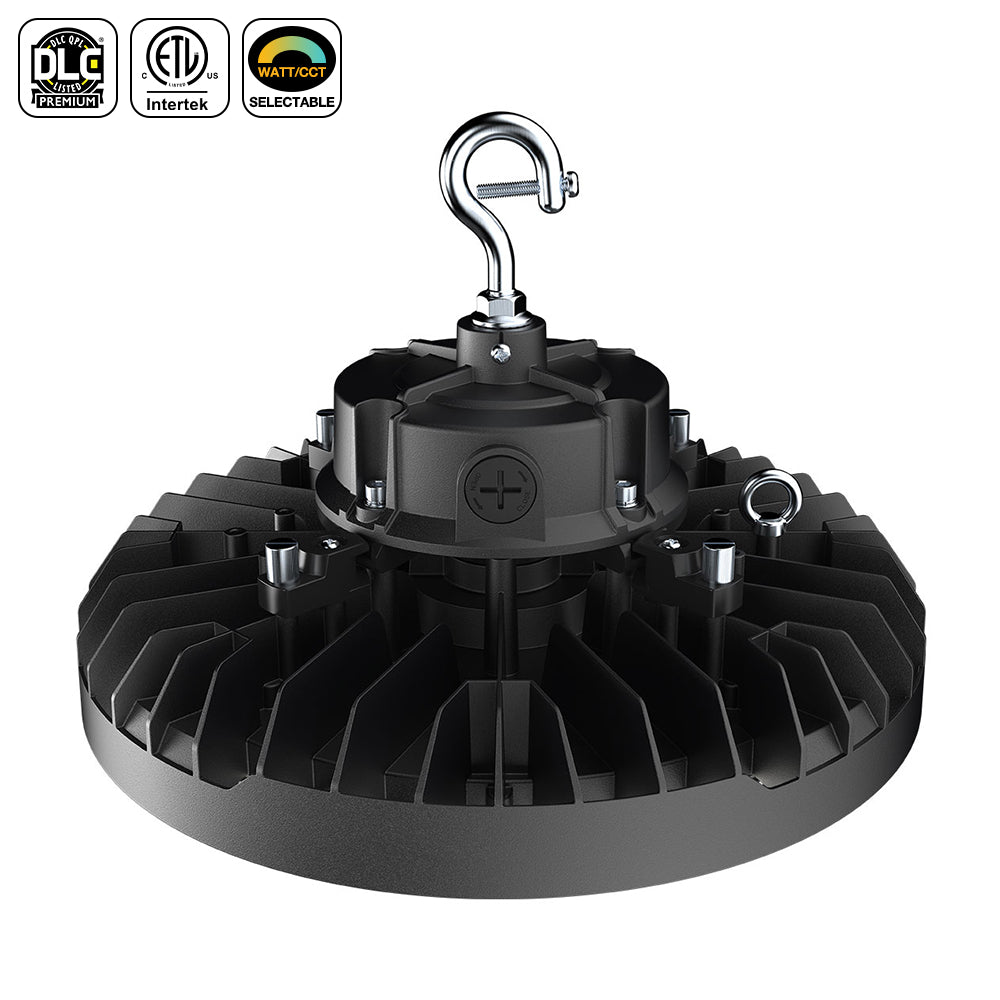

JEE UFO high bay in die-cast aluminium with a UV-stabilised polycarbonate lens, Lumileds LEDs, and switchable wattage and CCT.

  • 3 switchable wattages and 3 switchable CCTs on one SKU

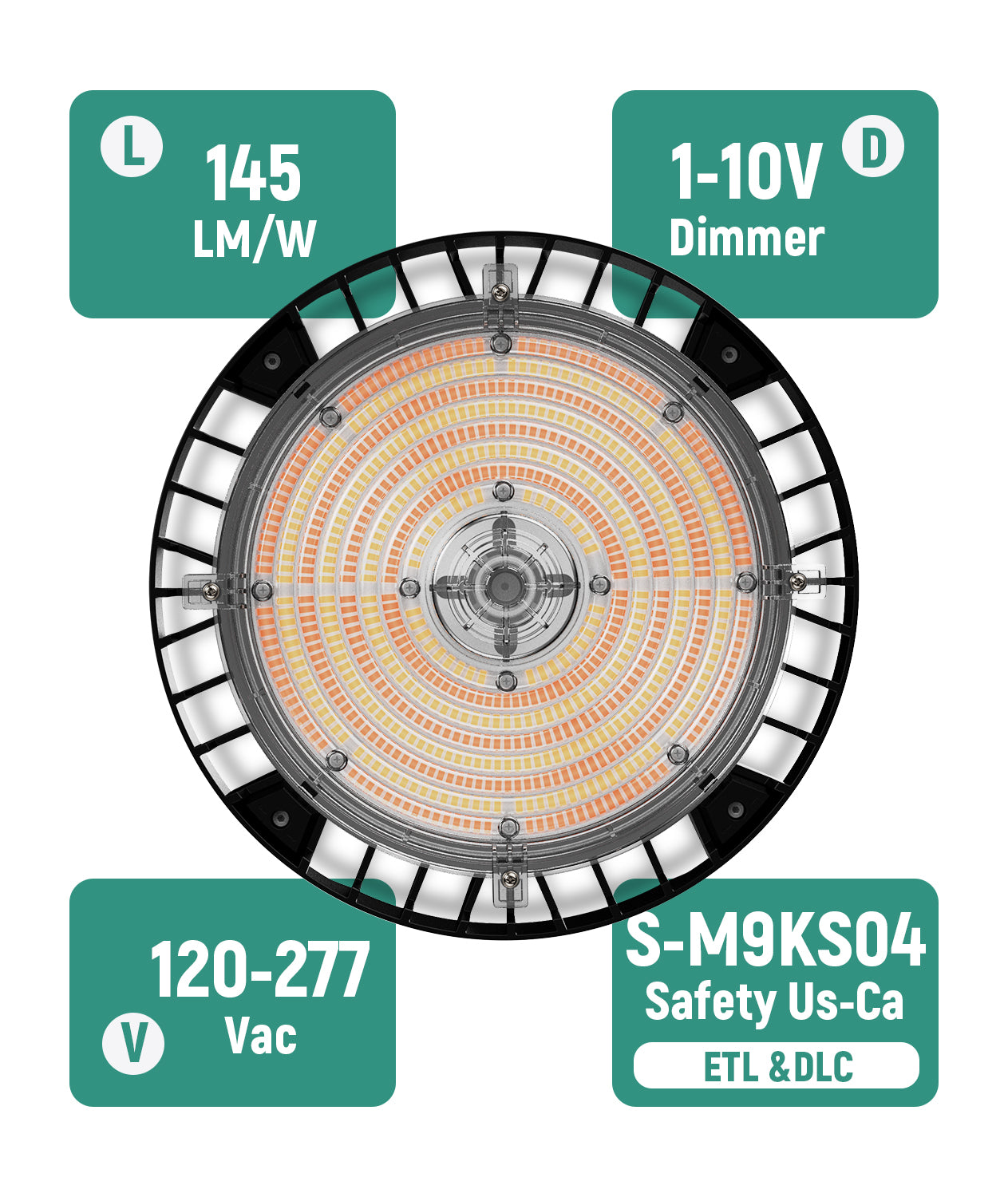

  • Lumileds LEDs, up to 140 lm/W
  • IK08 polycarbonate lens

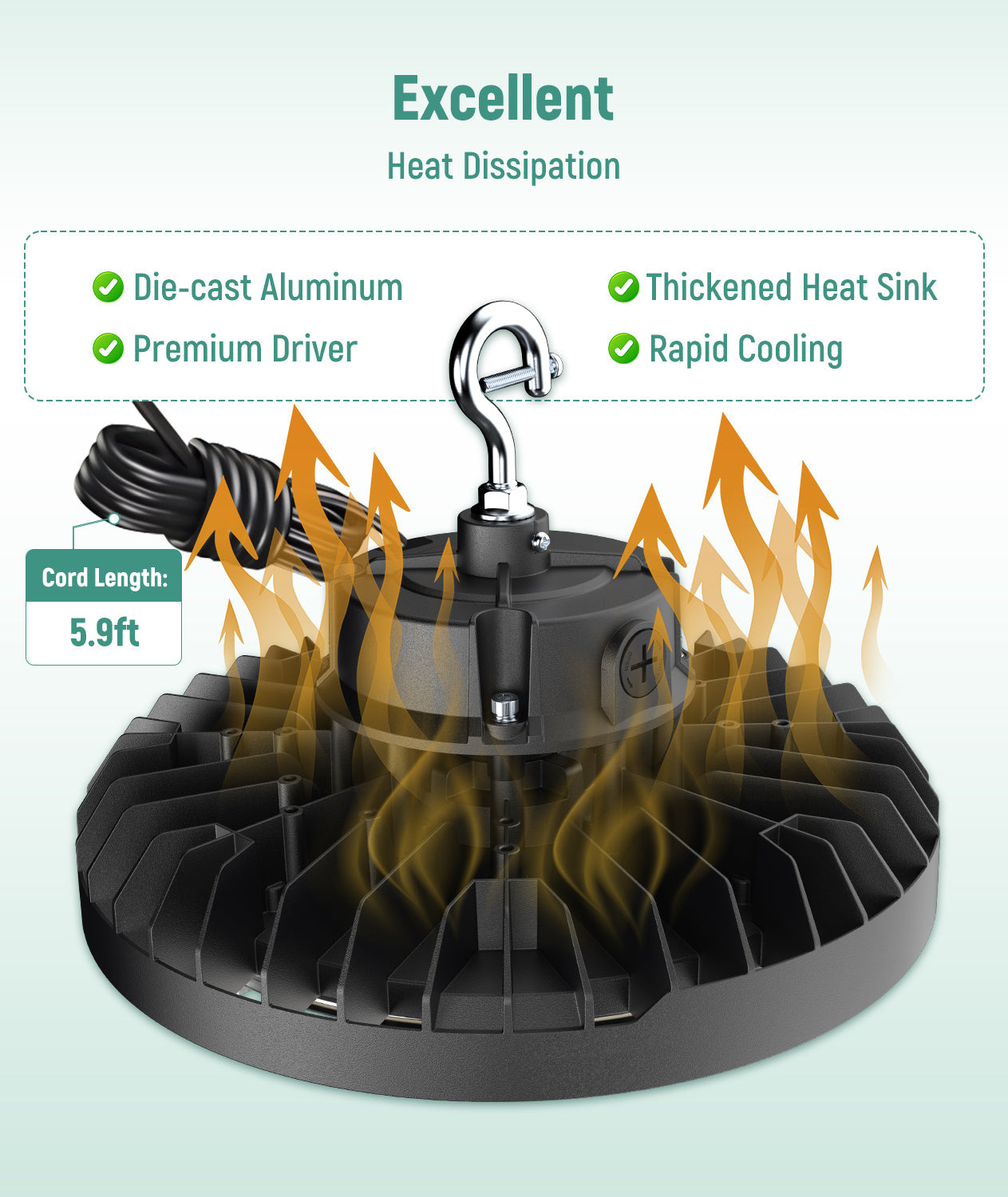

  • Die-cast aluminium housing
  • Hook or yoke mount
  • 5-year warranty

Specifications

Wattage
100 / 120 / 150 W
Lumens
14,000 / 16,800 / 21,000 lm
Efficacy
up to 140 lm/W
Colour temperature
3000K / 4000K / 5000K tunable
Voltage
277 to 480V
Warranty
5-year warranty
CRI
> 80
Distribution
90°
Lens IK rating
IK08
LED source
Lumileds

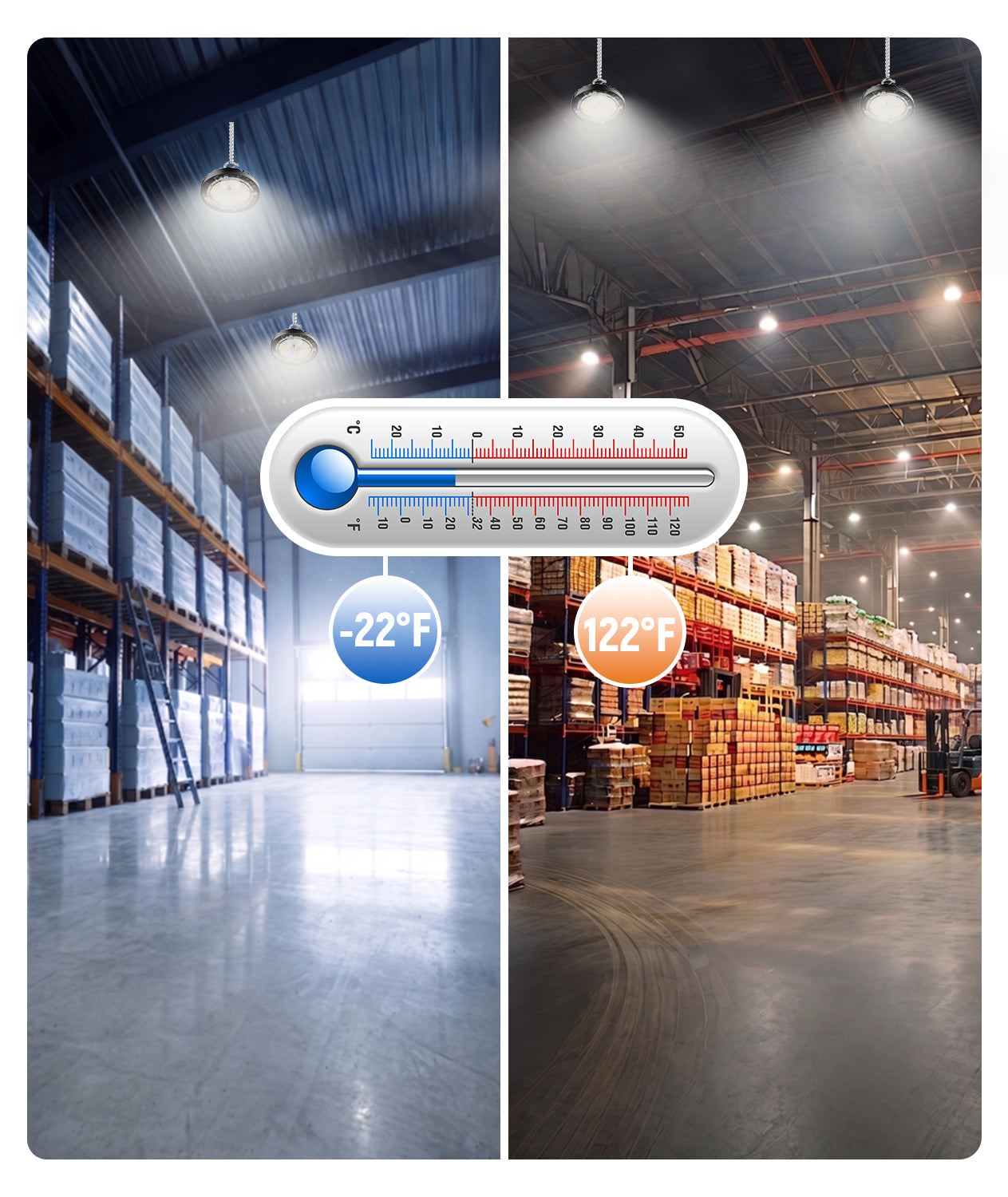

Operating temp
-30°C to 50°C

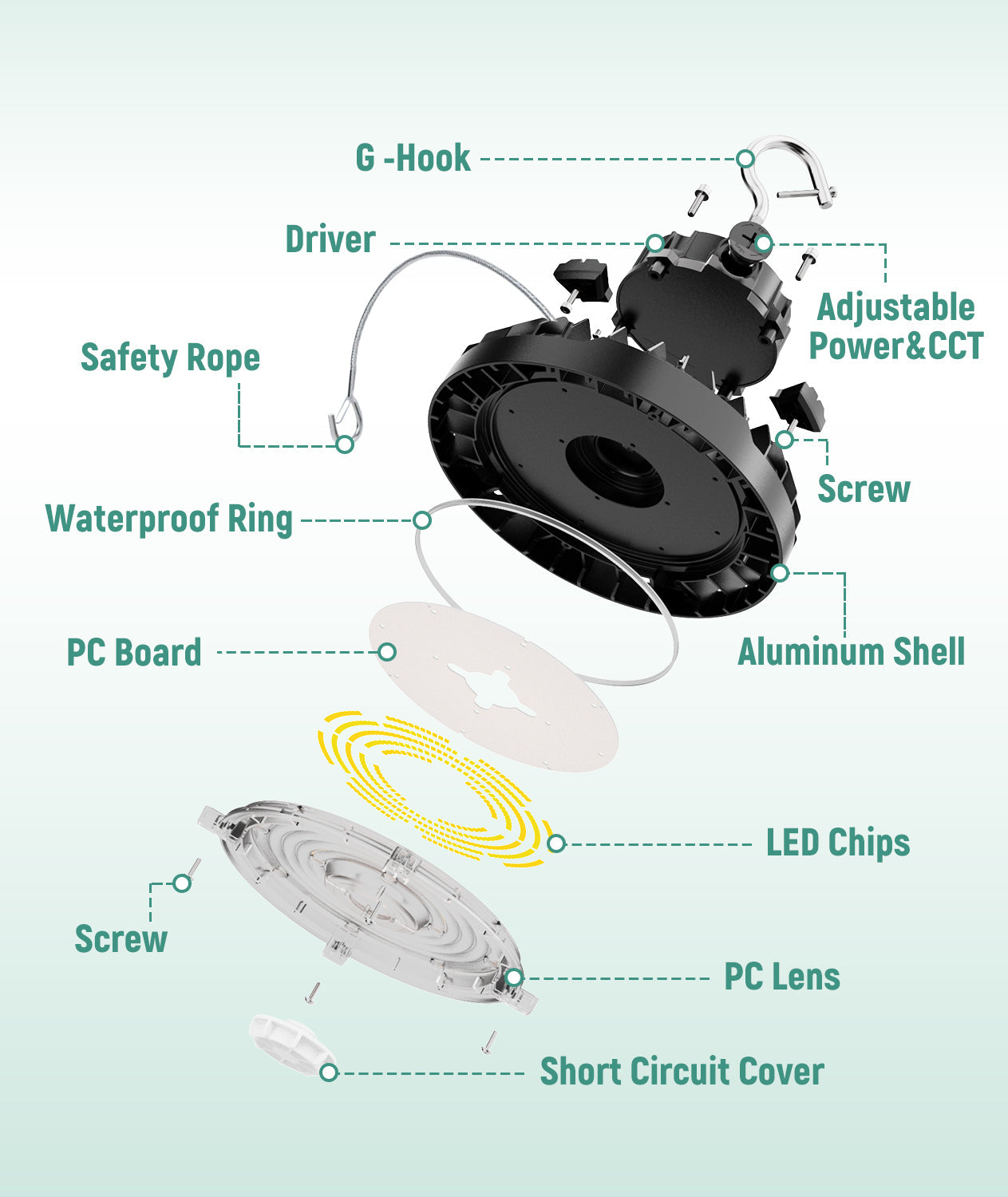

Construction

  • Die-cast aluminium housing with powder coat finish
  • UV stabilised polycarbonate lens
  • Lens IK grade IK08
  • Wattage and CCT selectable

Electrical

  • 120-277V or 277-480V
  • Lumileds LED source

Optics

  • 90° lens cover
  • 90° distribution

Installation

  • Hook or yoke mount

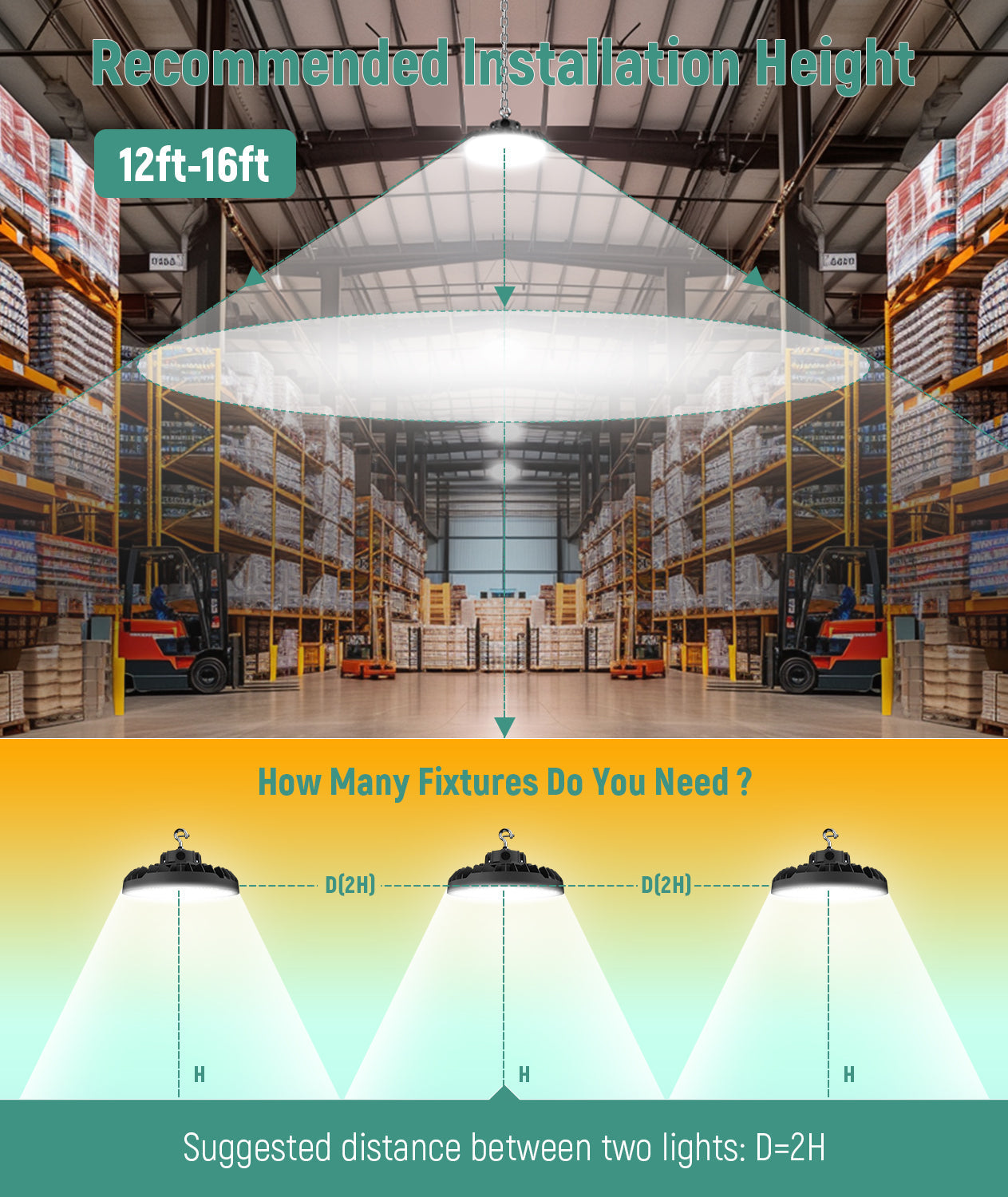

Ideal applications

  • Warehouses
  • Factories
  • Airports
  • High bay applications

Downloads

Spec sheet (PDF): JEE-Spec-LED-UFO12-Highbay.pdf

Best uses

  • Warehouses, factories, airports and other high bay spaces
  • Sites with a 277-480V supply

What's in the box

  • One UFO high bay with tin-plated bare-wire AC and control leads (0.3m exposed length)

Accessories you may need

  • 150W PC reflector
  • Safety rope
  • U bracket for yoke mounting
  • Plug and play sensor or emergency backup, both listed as accessories on the spec sheet
  • A ceiling hook or chain for suspended installs

Product FAQs

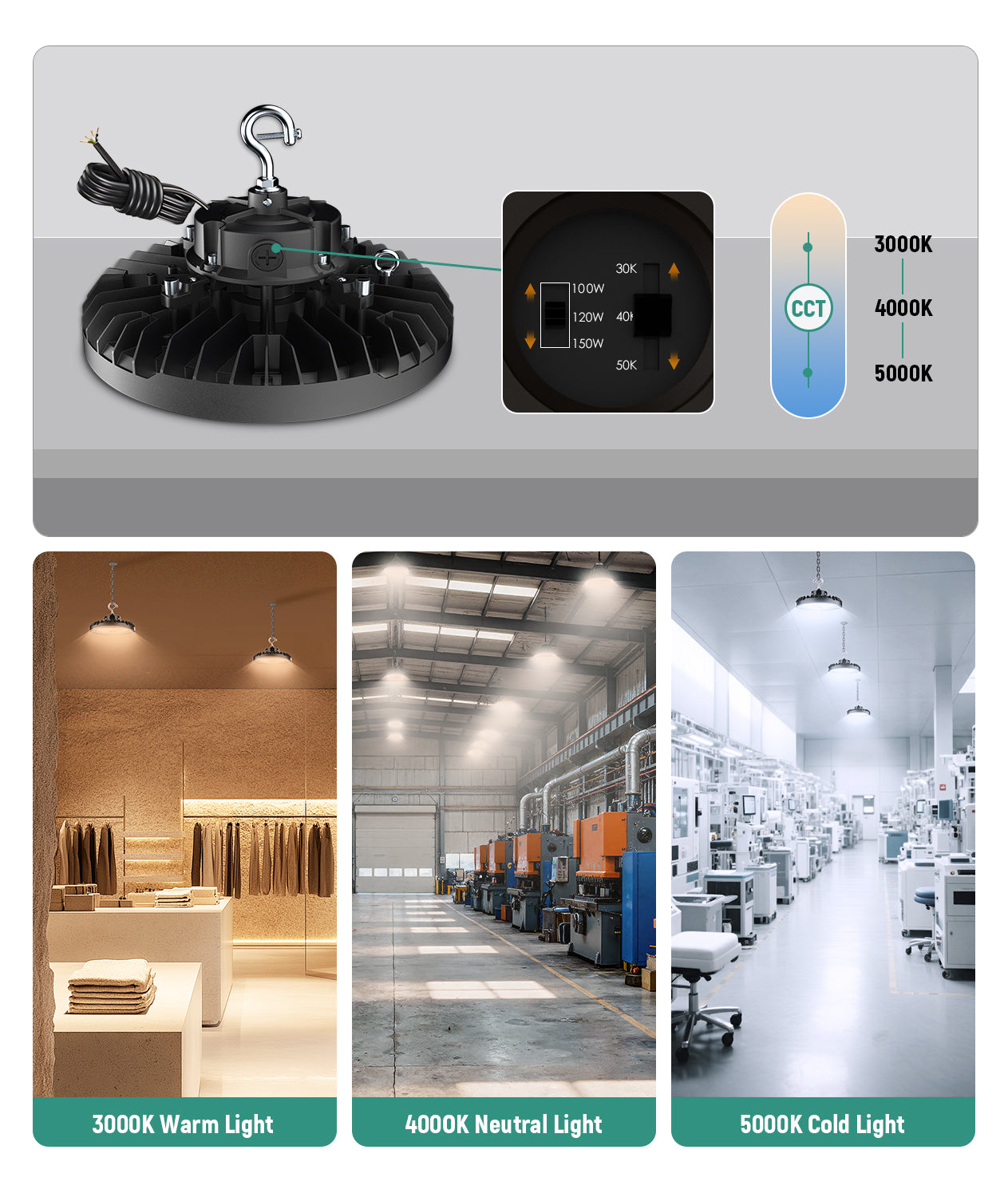

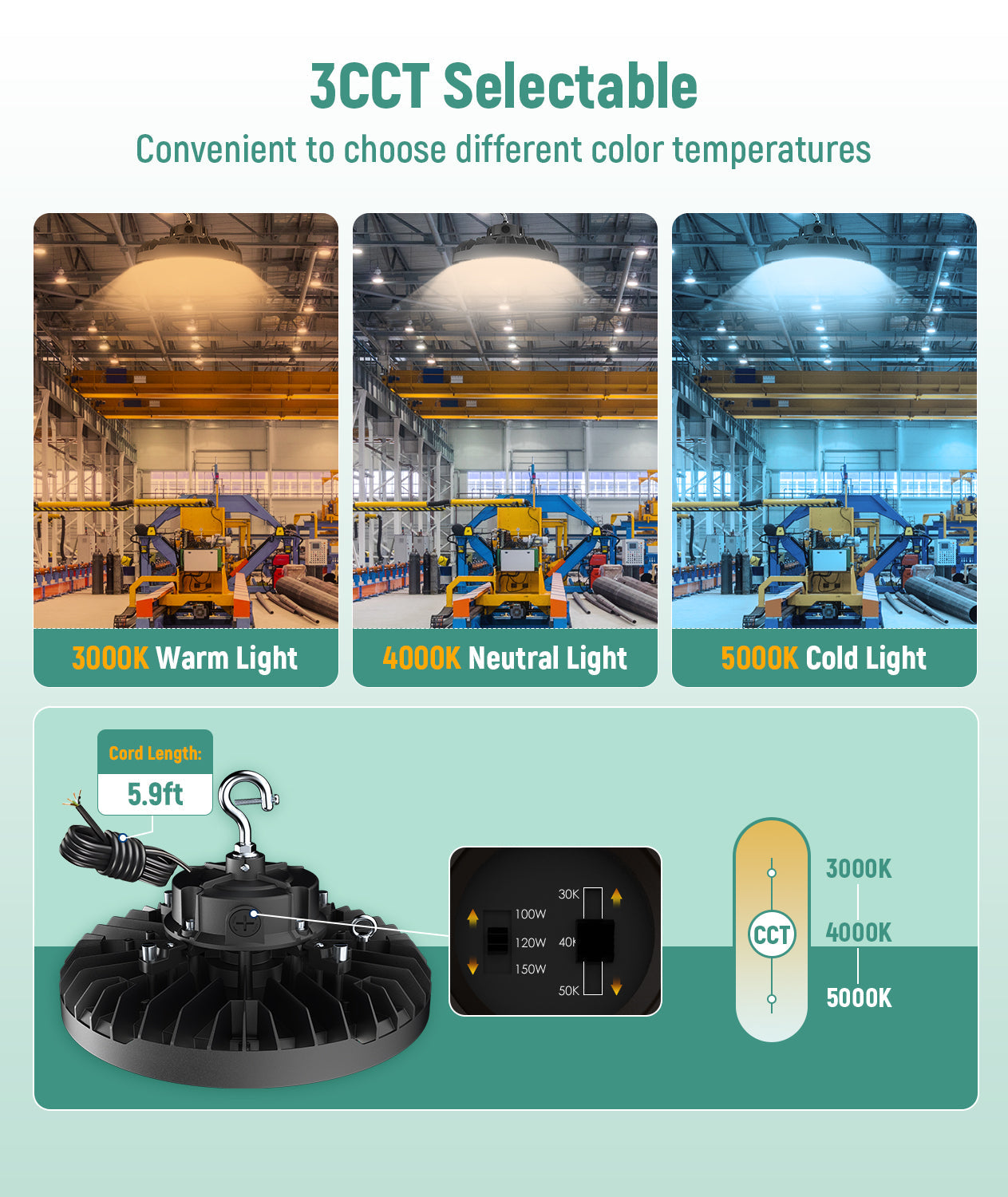

Can I change the wattage and colour on site?

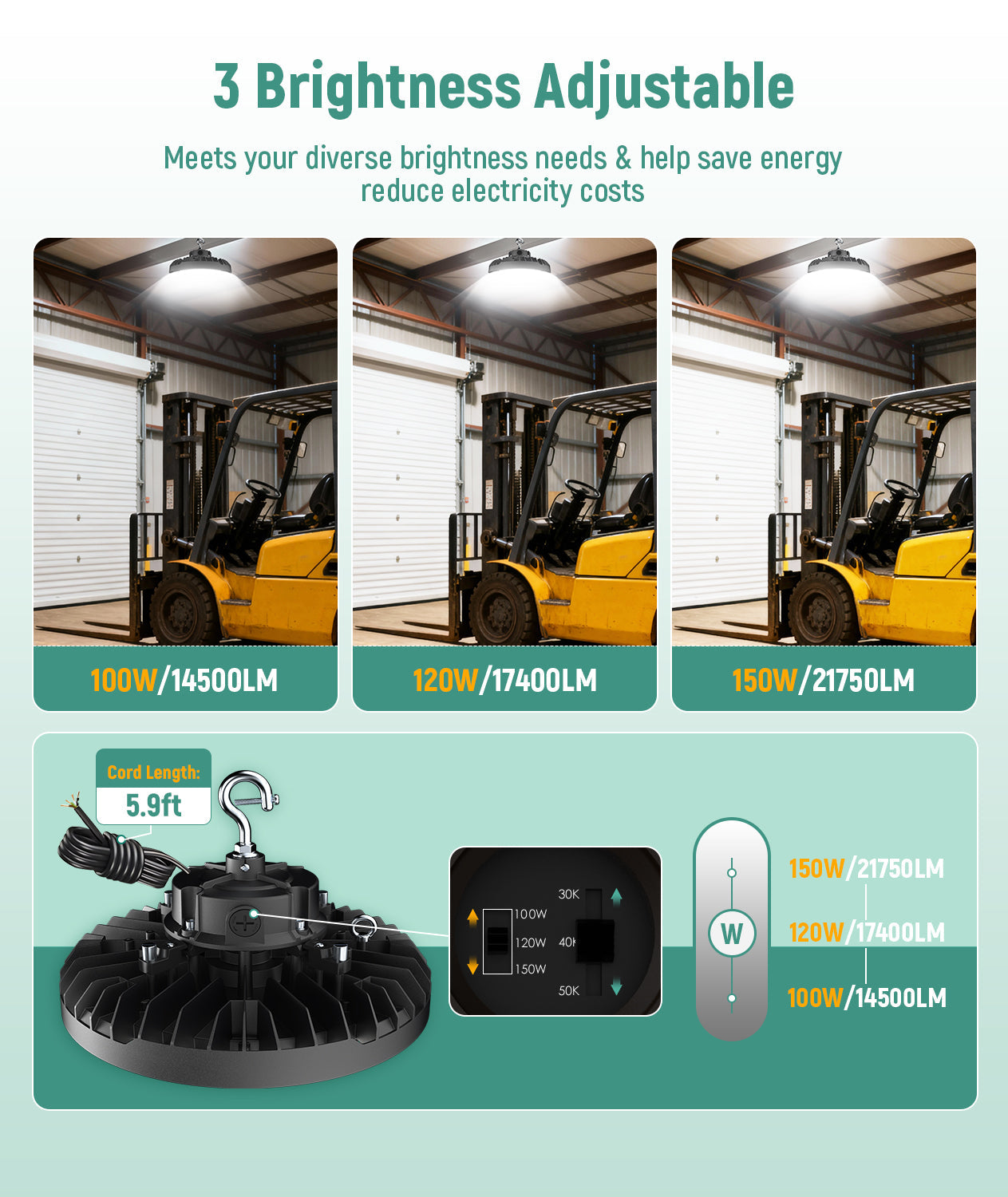

Yes. A double switch selects 100, 120 or 150W (14,000, 16,800 or 21,000 lm) and 3000K, 4000K or 5000K.

How does it mount?
Hook (suspended) or yoke with the U bracket.

Which voltage is this one?
277-480V.

Complete your setup

Pick the add-ons you need and add everything in one tap.

JEE LED UFO High Bay 100-150W 277-480V 150W PC reflector Smart Sensor PIR Sensor, HB01 Series Emergency LED Driver, 40W, 90-minute backup
  • $62.50
  • $12.50
  • $15.50
  • $22.75
  • $105.75

Total price: $0.00

Volume discount applies to your product total on your quote.

Anything else for this fixture?

150W PC reflector 150W PC reflector $12.50
Smart Sensor Smart Sensor $15.50
PIR Sensor, HB01 Series PIR Sensor, HB01 Series $22.75
Emergency LED Driver, 40W, 90-minute backup Emergency LED Driver, 40W, 90-minute backup $105.75

Compare other brands

The same kind of fixture from the other manufacturers we carry.

Questions about this fixture

What wattage, color temperature and voltage options does it have?

Wattage: 100 / 120 / 150 W. Color temperature: 3000K, 4000K, 5000K. Voltage: 277-480V.

Does it come with a sensor or controls?

It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.

What certifications does it have?

Listed by the manufacturer as: ETL.

What is the warranty?

Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.

Is there a spec sheet?

Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)

Is there a minimum order, and how does shipping work?

No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
