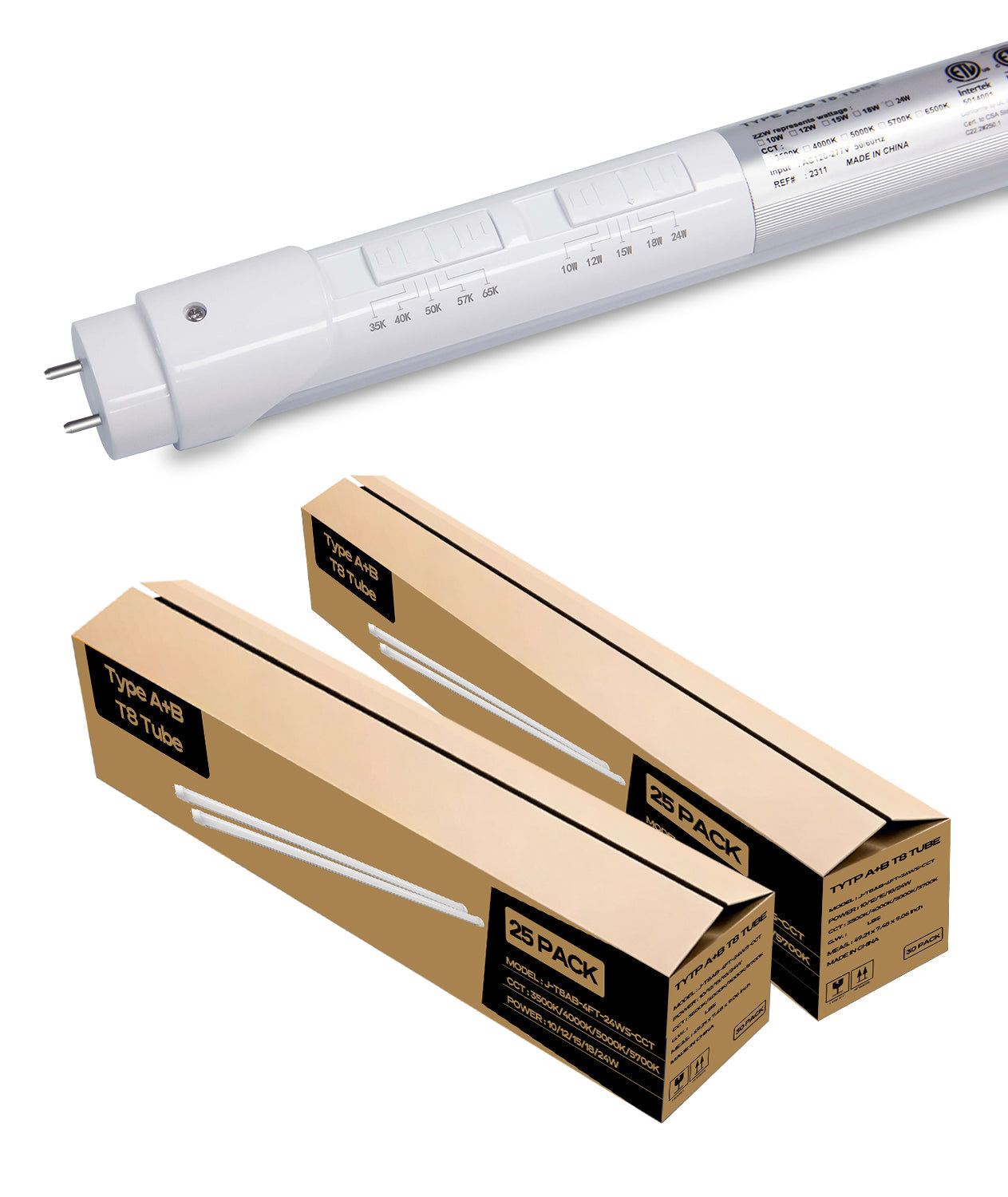

JEE 4ft T8 LED Tube Type A+B 10-24W
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per tube. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more tubes and your cost per tube goes down.
- Packed tight for the trip. A sealed factory case keeps tubes snug and protected from the warehouse to your job site.
- Extras on hand. A few extra tubes cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-T8AB-4FT-24WS-CCT |
| Fixture type | LED Tubes |
| Family | T8 Tube – Type A+B |
| Size | 4ft |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 5700K, 6500K |
| Input voltage | 120-277V |
| Certifications | ETL, DLC |
| Product dimensions | 47.17 in long (with pins), 1.15 in dia |

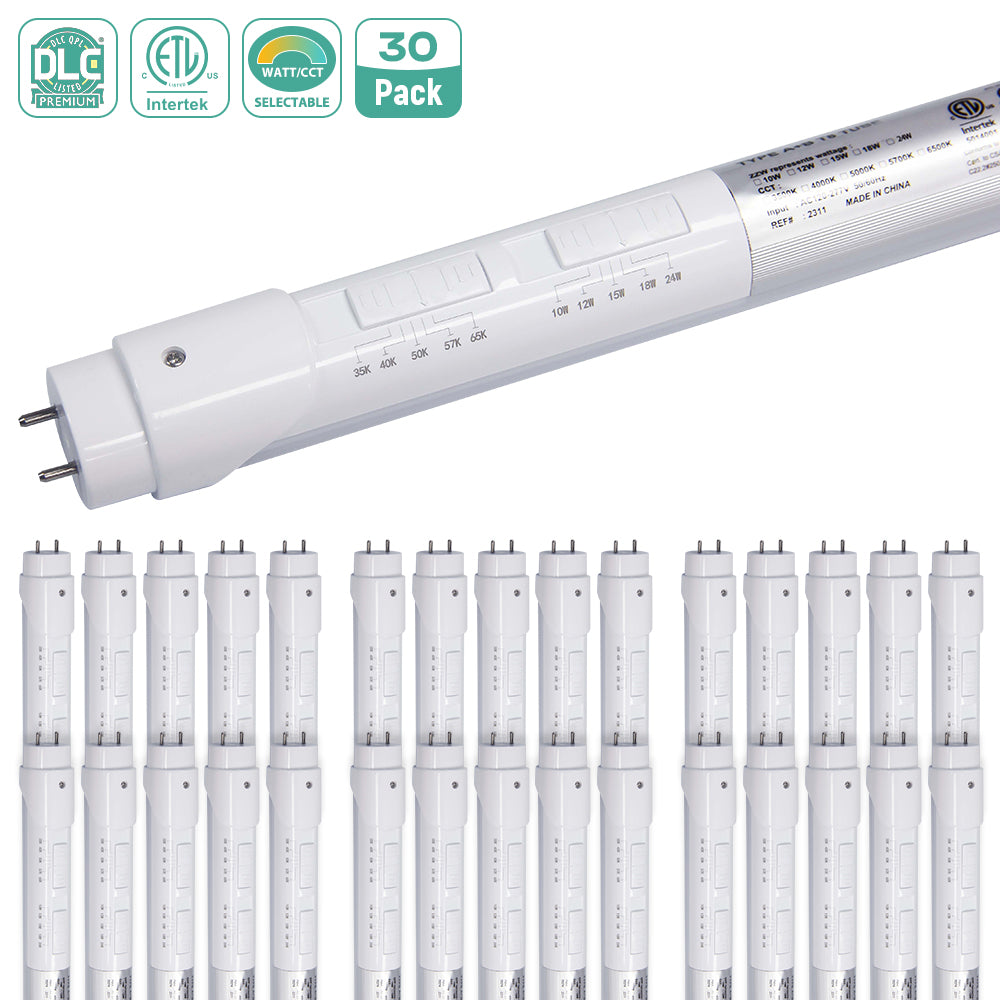

| Case pack quantity | 30 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 48.82 x 7.49 x 7.09 in |
| Case pack weight | 15.88 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
4ft T8 LED tube, Type A+B, that works on a fluorescent ballast (Type A) or on line voltage with the ballast bypassed (Type B), single-ended or double-ended. It is a direct replacement for a conventional 4ft T8 fluorescent lamp in offices, schools, retail, healthcare and hospitality spaces. Wattage and color temperature are selectable, and the frosted lens eliminates pixelation.
Key details
- Direct replacement for a conventional 4ft T8 fluorescent lamp; roughly 60% more efficient than a standard F32 T8 lamp

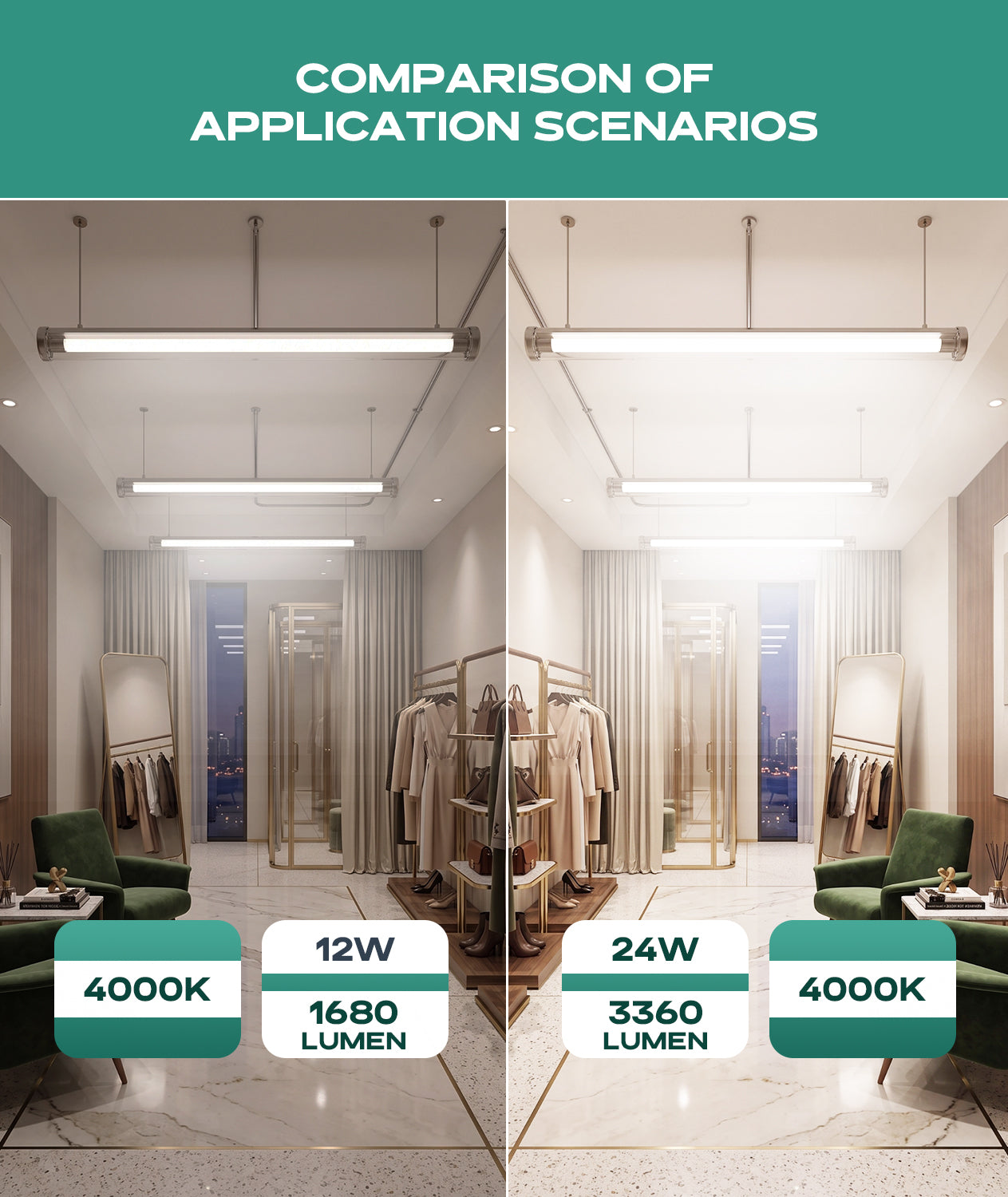

- Selectable 10, 12, 15, 18 or 24W, 1,400 to 3,080 lumens, up to 140 lm/W

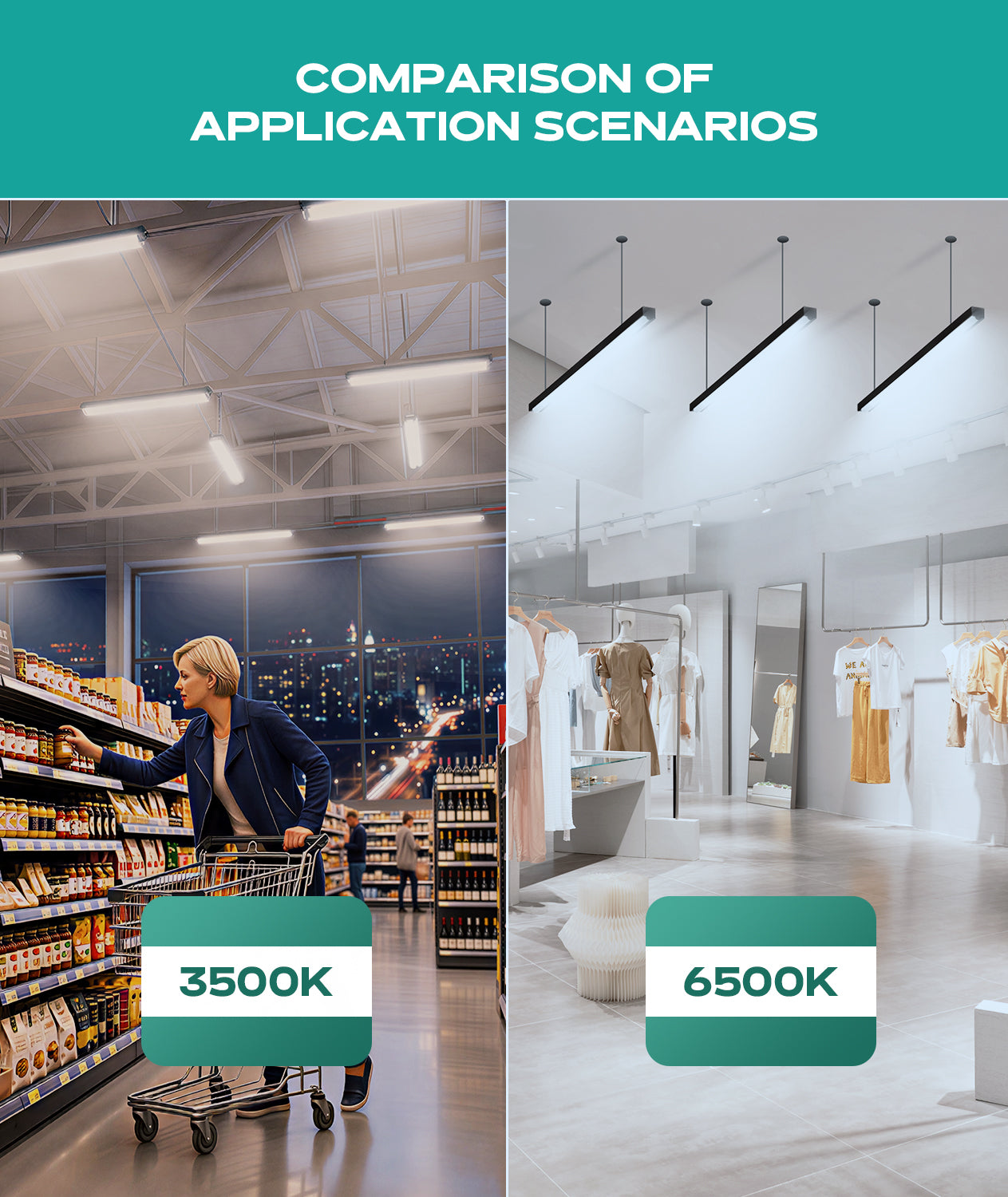

- Selectable 3500K, 4000K, 5000K, 5700K or 6500K

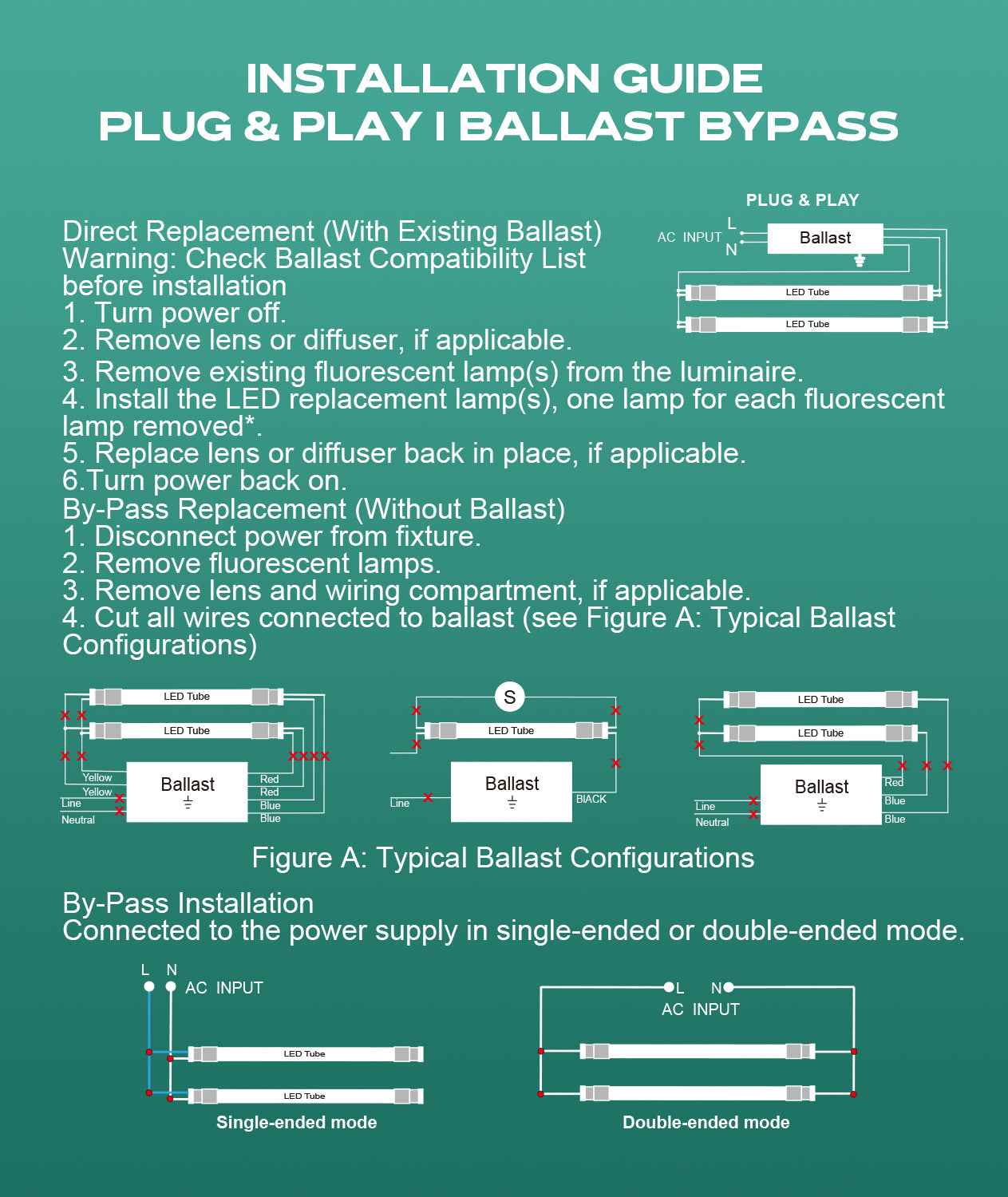

- Type A+B: ballast compatible or ballast bypass, single-ended or double-ended wiring
- 120 to 277V, G13 base
- Frosted PC lens, CRI above 80

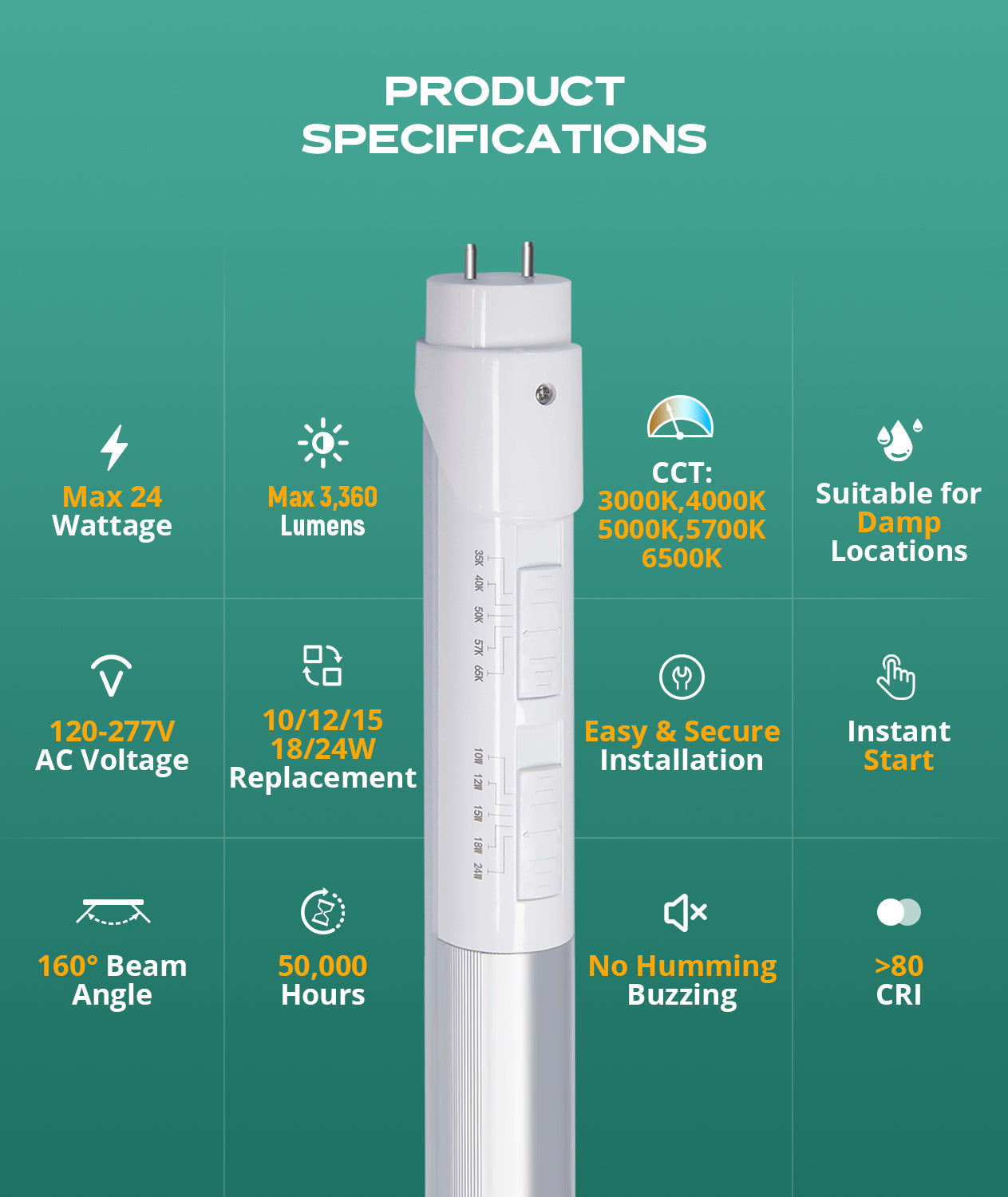

Specifications
Construction
- Aluminium + PC housing
- Frosted PC lens eliminates pixelation
- G13 base
Electrical
- Input voltage 120-277Vac 50/60Hz

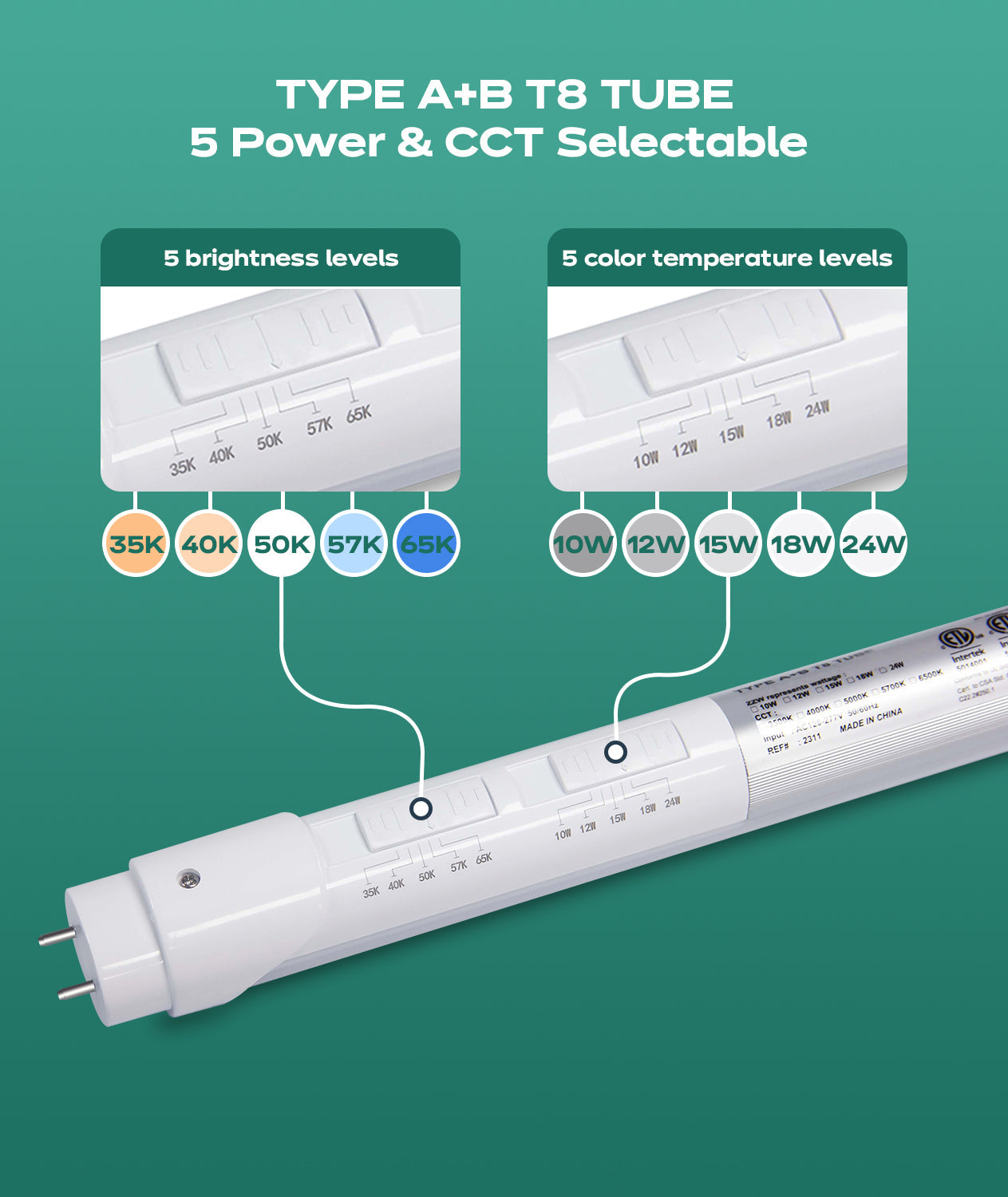

- Colour Select technology across five CCTs
- Roughly 60% more efficient than a standard F32 T8 lamp
Installation
- Direct replacement for a conventional fluorescent lamp
- Single- or double-ended line voltage wiring
- Operating temperature -20°C to 45°C
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Compare other brands
The same kind of fixture from the other manufacturers we carry.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 10 / 12 / 15 / 18 / 24 W. Color temperature: 3500K, 4000K, 5000K, 5700K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
