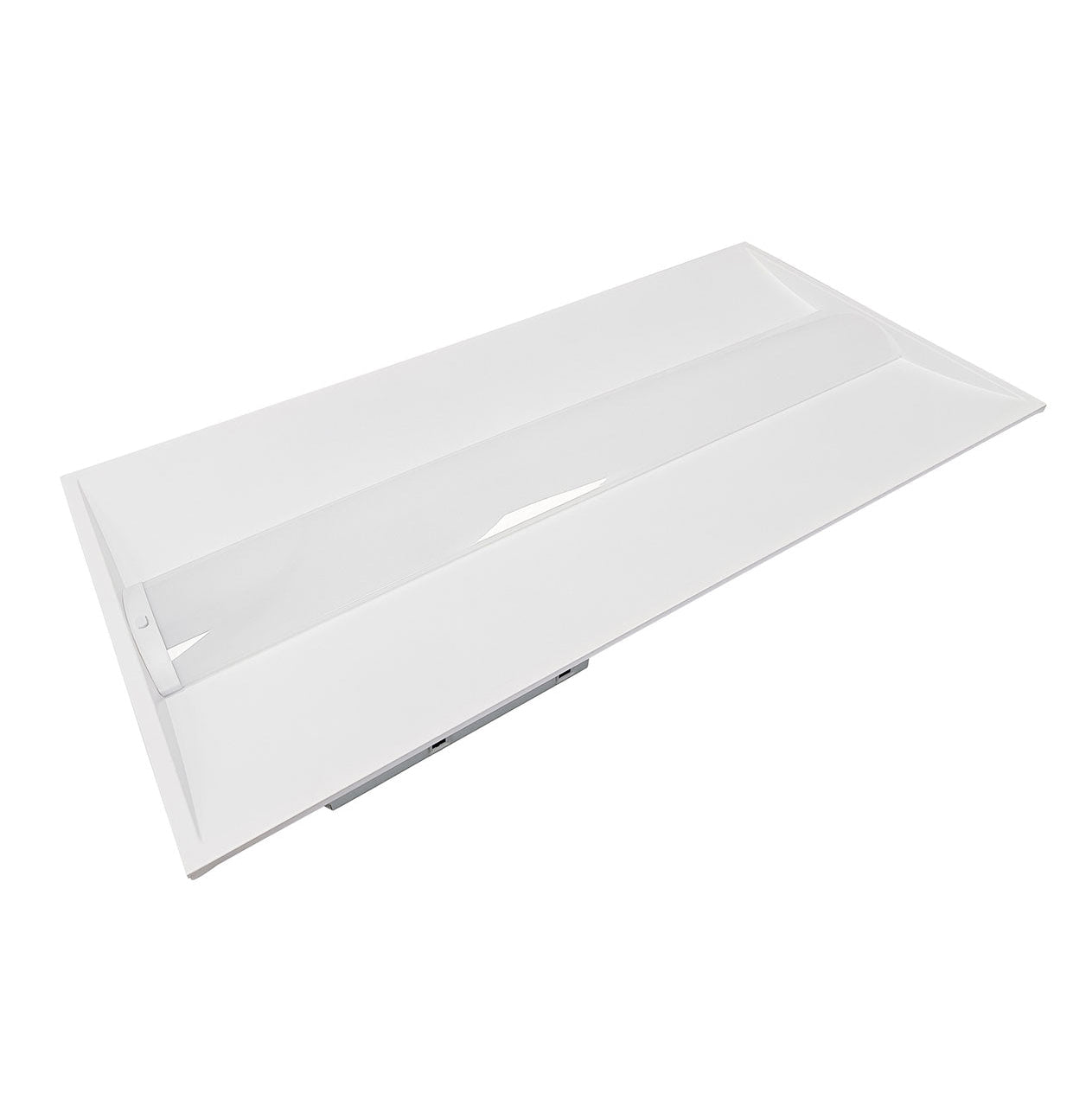

JEE 2x4 LED Center Basket 30-72W with Emergency Battery Backup
Product Number:J-T4-S72-3565-EM
JEE 2x4 recessed LED centre basket with a factory-installed 8W emergency driver.

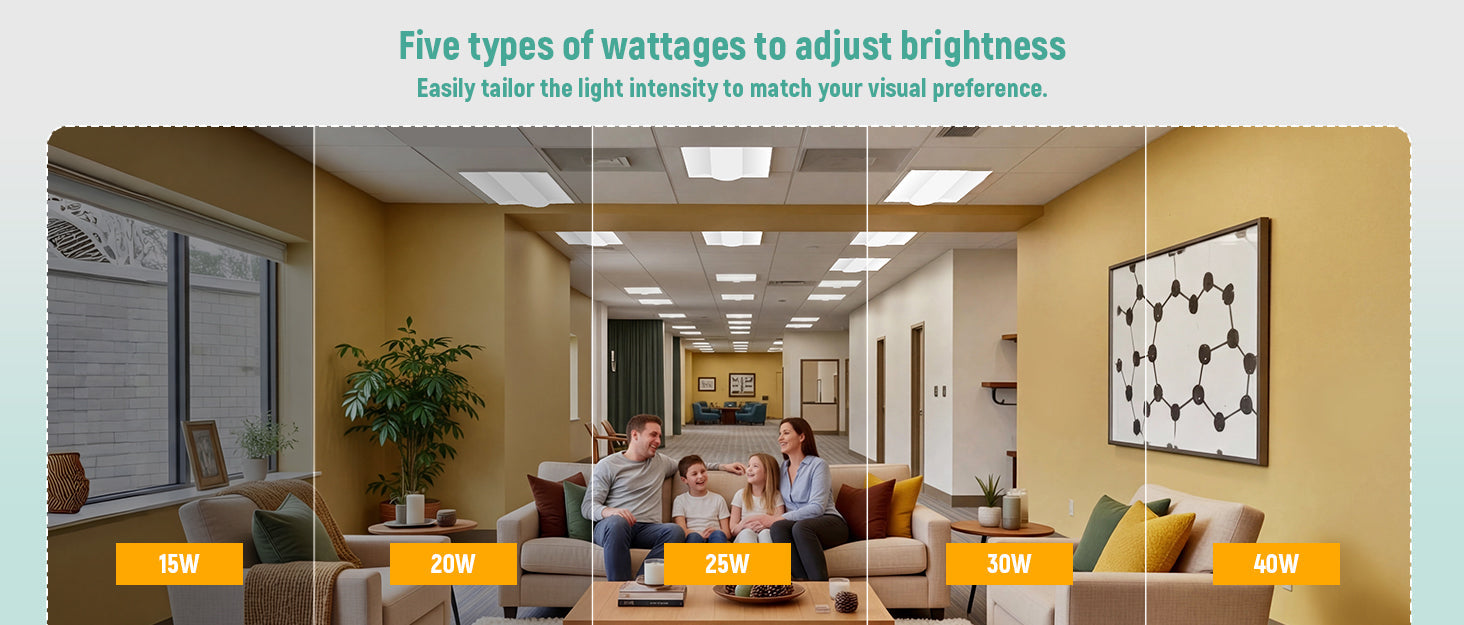

- 5 selectable wattages and 5 selectable CCTs on one SKU
- Over 50% energy saving against fluorescent
- 0-10V dimming standard
- 130 lm/W
- Rated for 50,000 hours
- ETL, DLC 5.1 Premium, FCC, RoHS
- 5-year limited warranty
Specifications
Wattage
30 / 40 / 50 / 60 / 72 W
Lumens
3,900 – 9,000 lm
Efficacy
up to 130 lm/W
Colour temperature
3500K / 4000K / 5000K / 5700K / 6500K
Voltage
120–277V
Dimming
23.74" L x 23.74" W x 2.12" H
Warranty
5-year limited warranty
CRI
≥ 80
Rated life
50,000 hours
THD / PF
≤ 20%
Operating temp
-20°C to 45°C
Dimensions
23.74" L x 23.74" W x 2.12" H

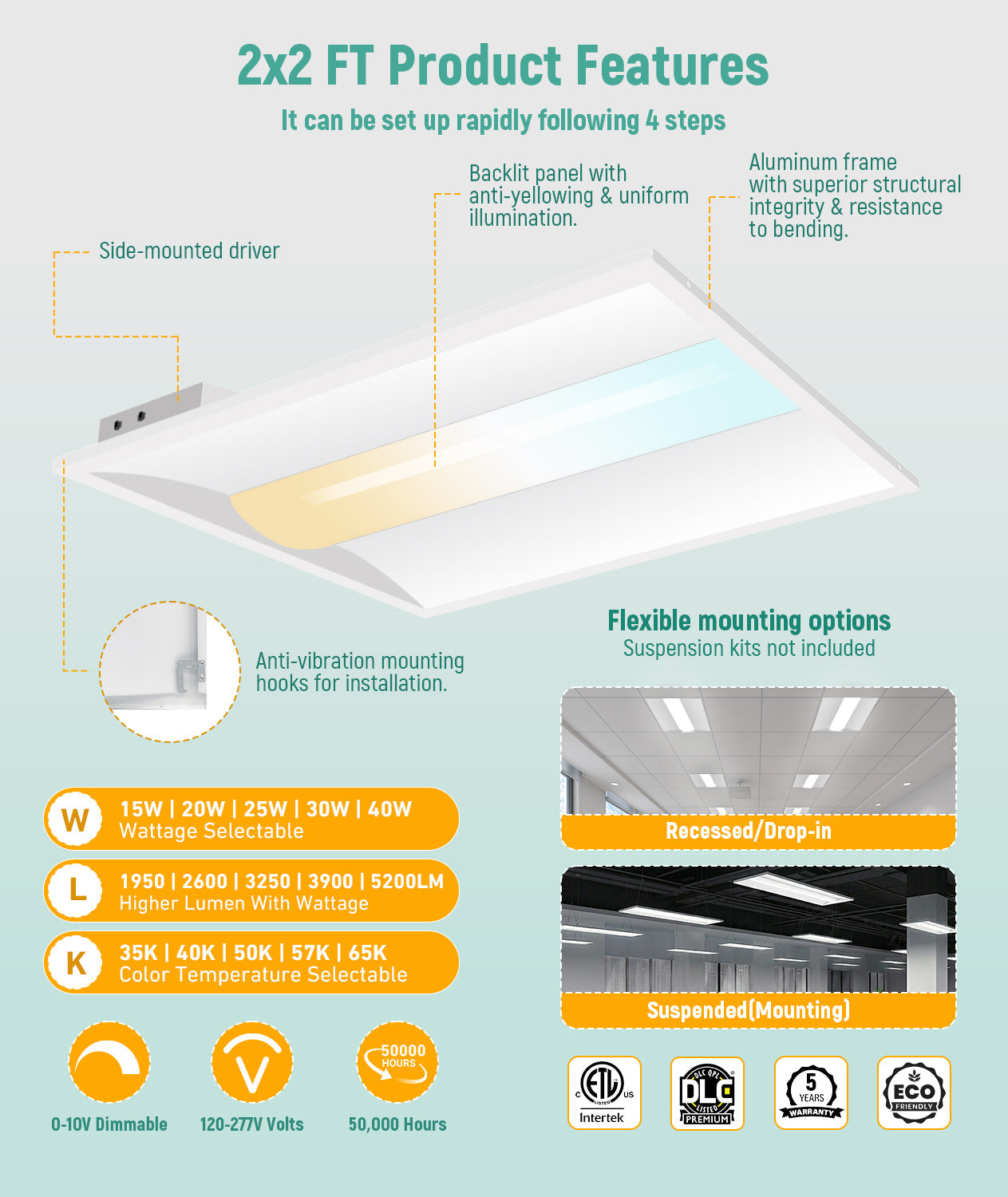

Construction
- One-piece ribbed unitized housing with interlocking corners
- All sides and corners turned in and hemmed — no sharp edges
- Driver fixed to the back of the panel to survive shipping
Electrical
- Universal voltage driver, 120-277V
- 0-10V continuous dimming standard
- THD ≤ 20%

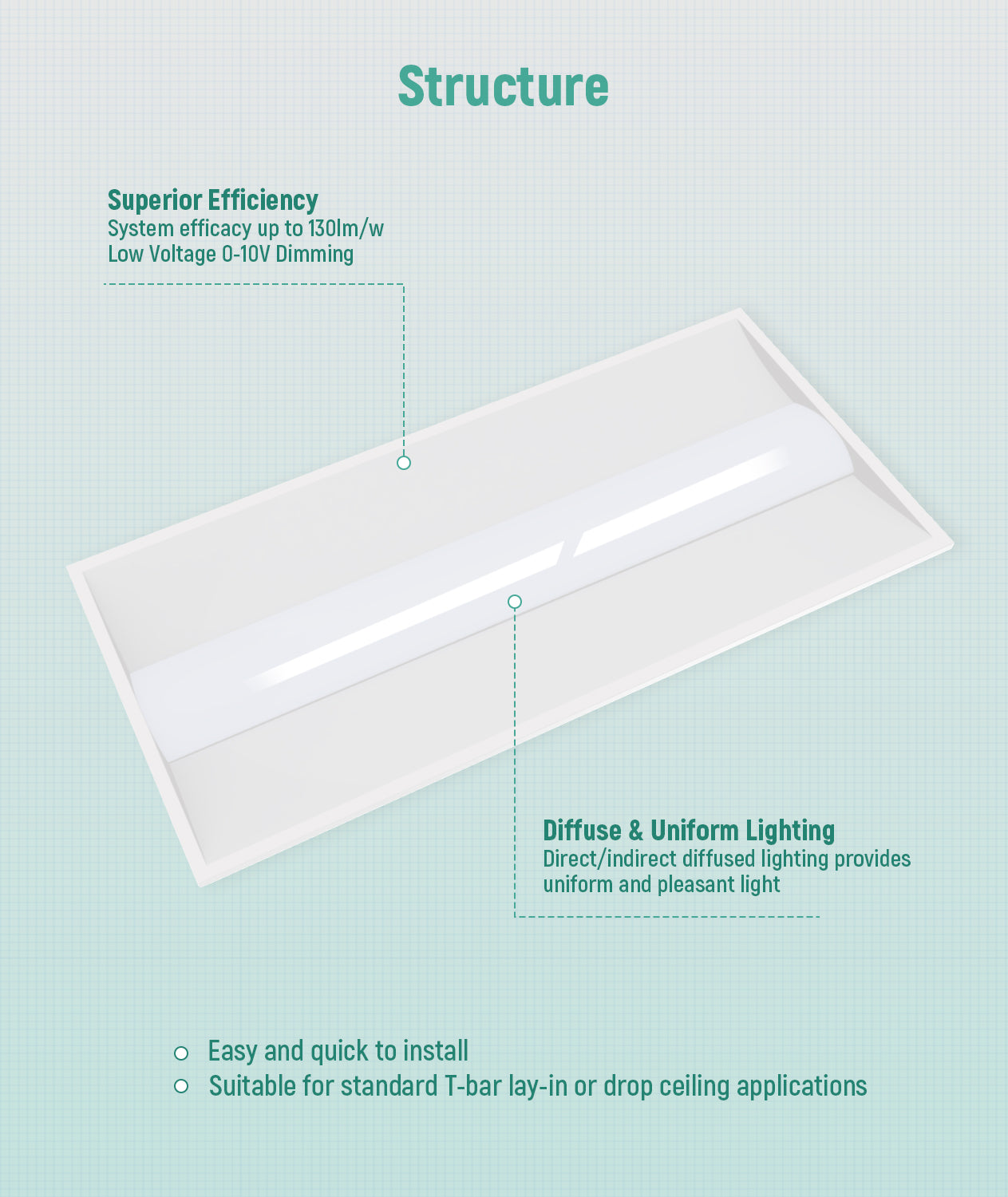

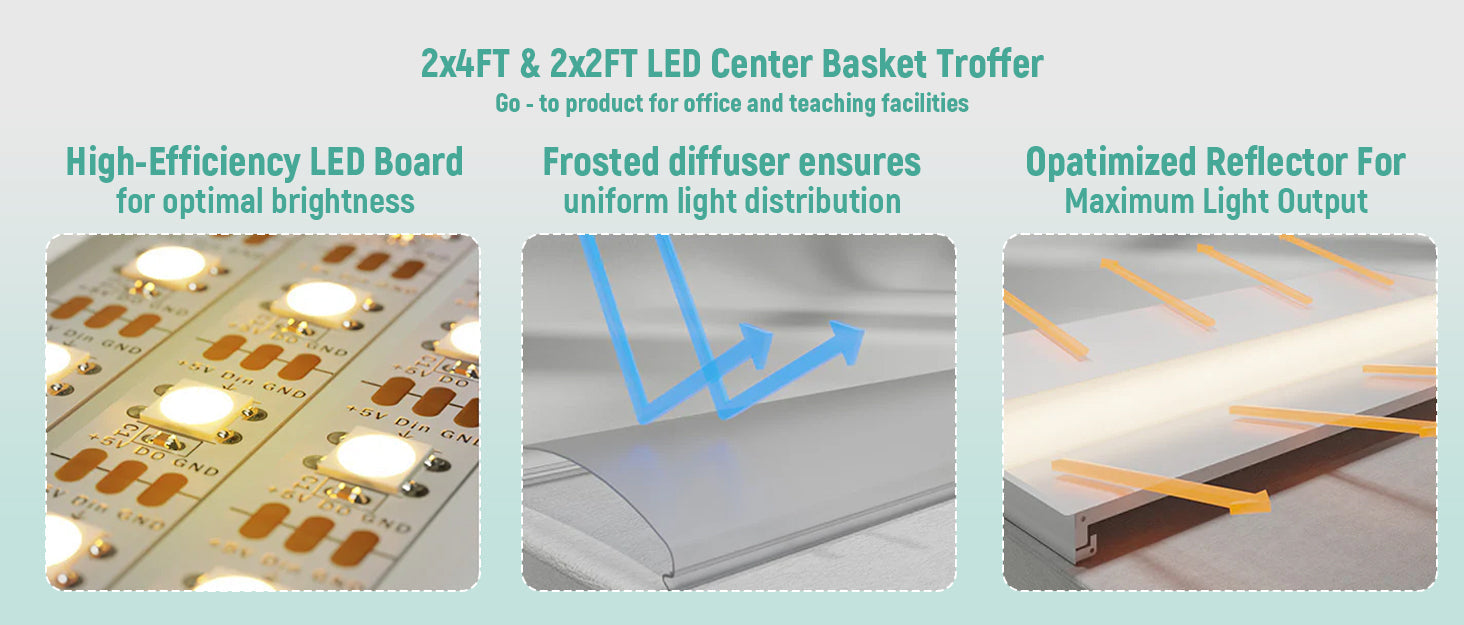

Optics
- Precision-formed optical system designed to reduce glare and improve distribution

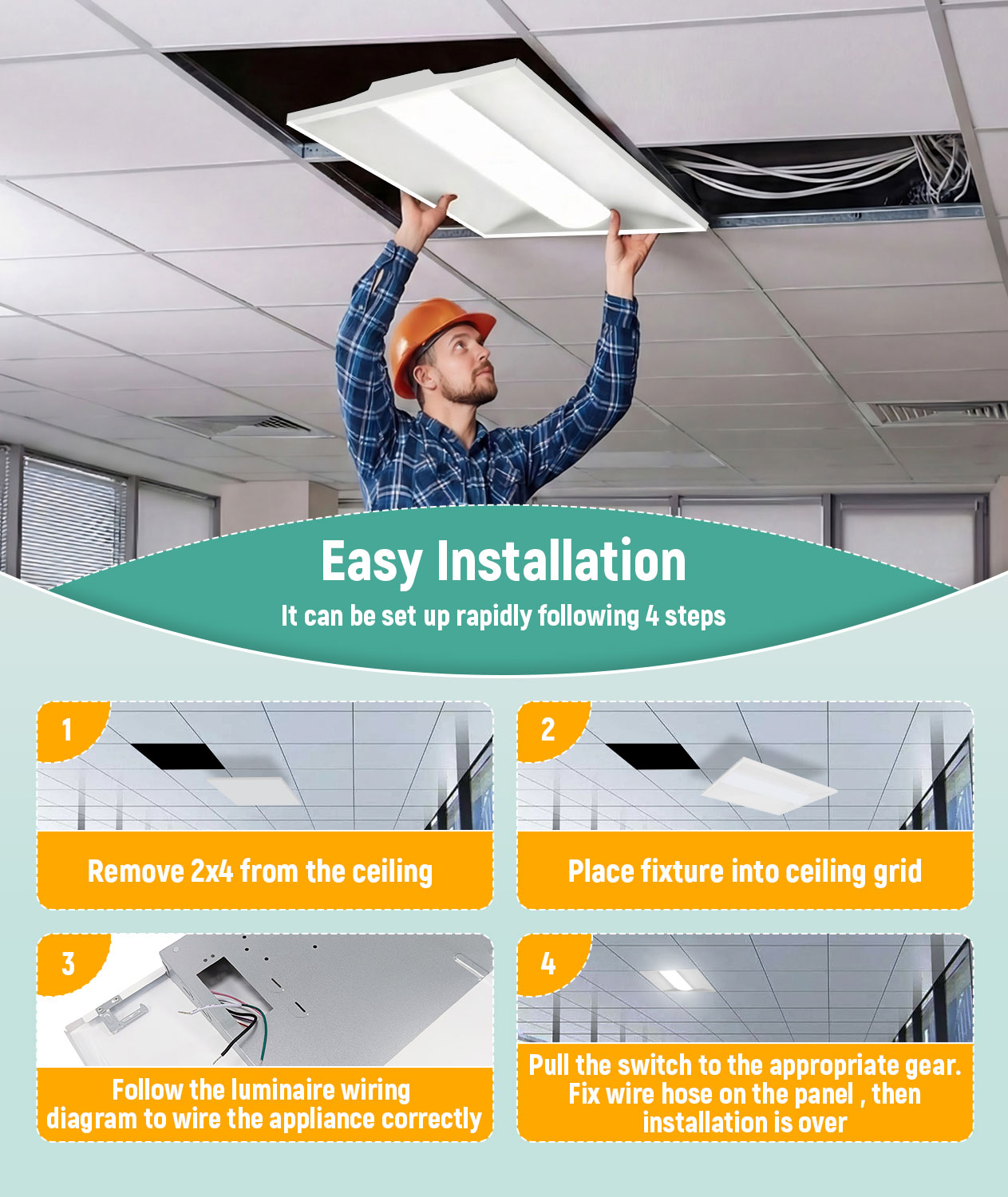

Installation
- Recessed into standard T-bar grid ceilings

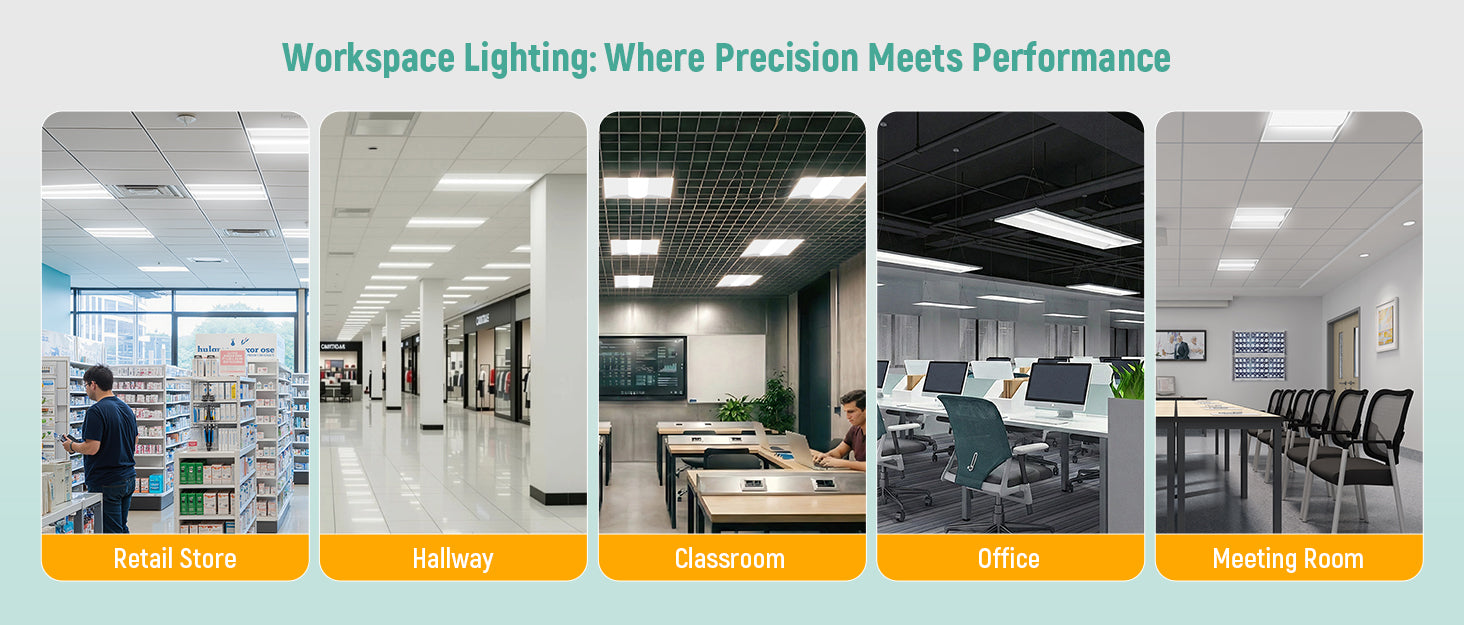

Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Residential
Downloads
Spec sheet (PDF) — JEE-Spec-LED-Troffer-with-sensor-base.pdf
