JEE 2x4 LED Center Basket 15-50W
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
This item is priced on quote. Add any priced item to your quote and mention this part in the notes, or contact us and we will price it for you.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-T4-S50-1536 |
| Fixture type | Panels & Center Baskets |
| Family | 2x4 Center Basket |
| Size | 2x4 |

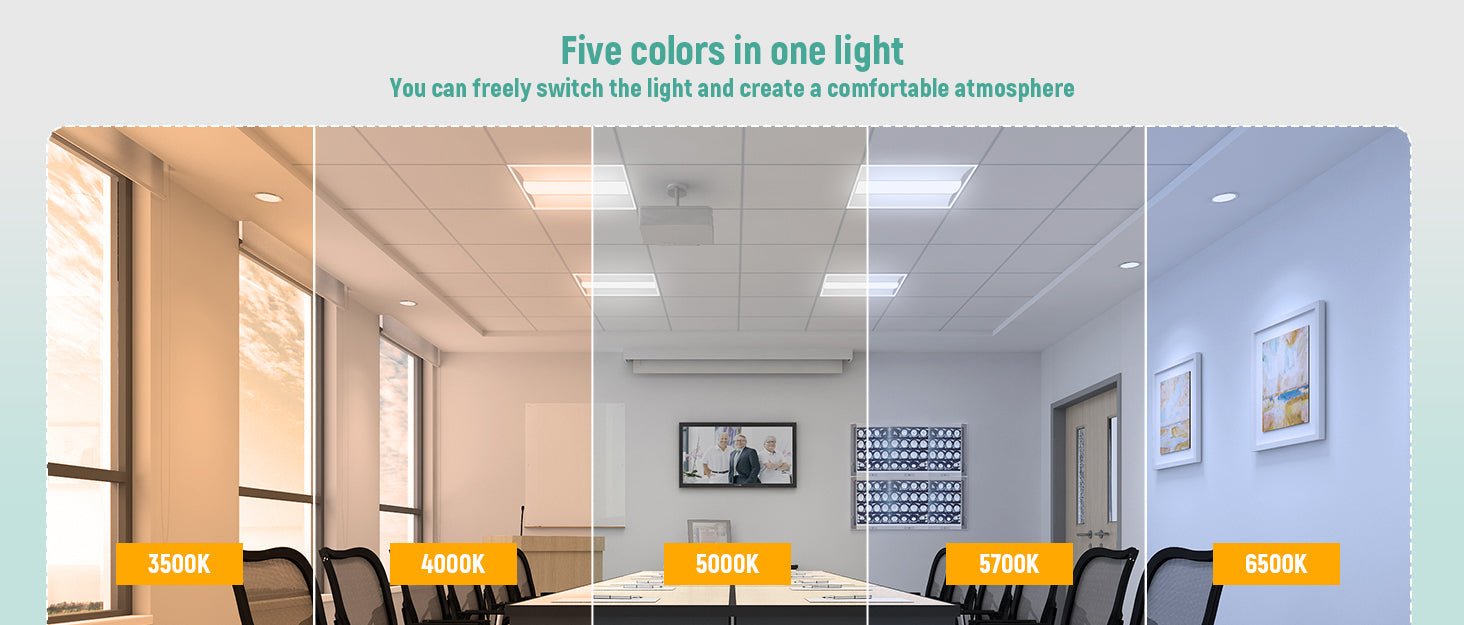

| Color temperature (CCT) | 3500K, 4000K, 5000K, 5700K, 6500K |
| Input voltage | 120-277V |
| Certifications | ETL, DLC |
| Product dimensions | 47.72 x 23.74 x 2.12 in (L x W x H) |

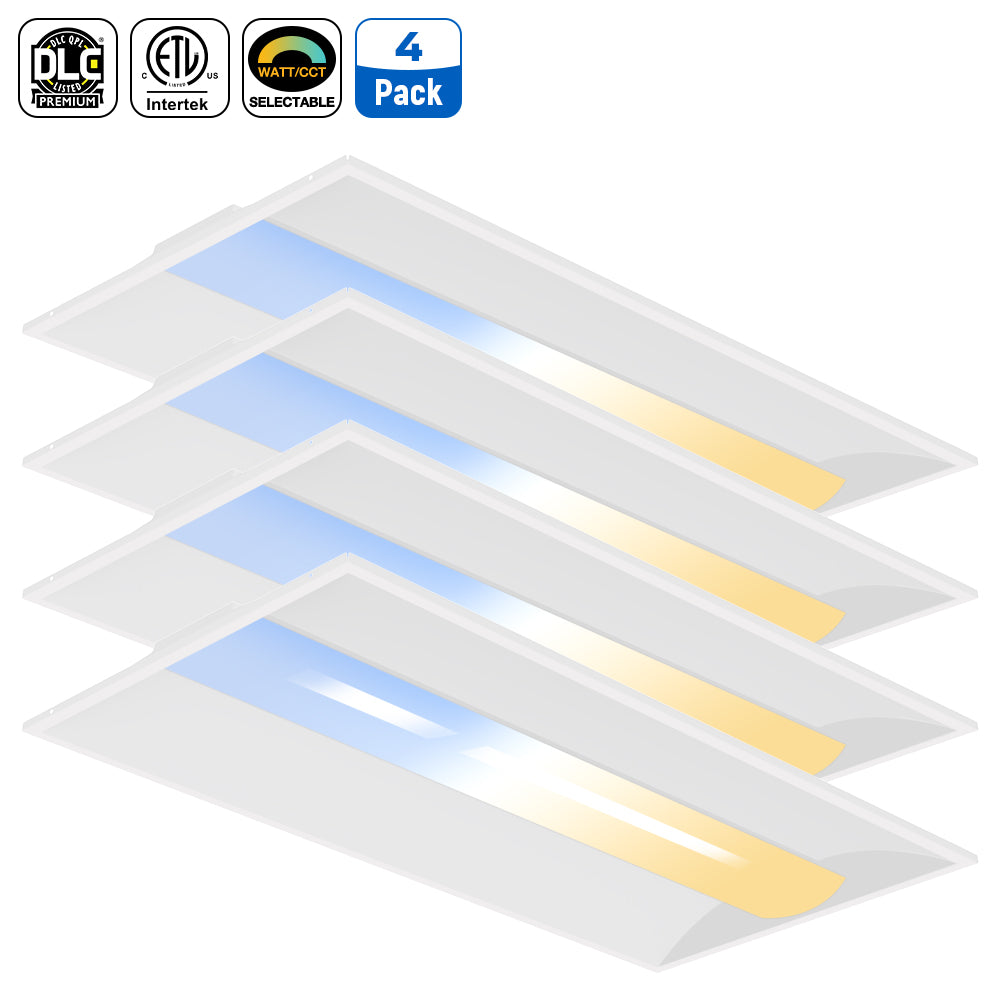

| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 48.63 x 8.59 x 25.08 in |
| Case pack weight | 39.82 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

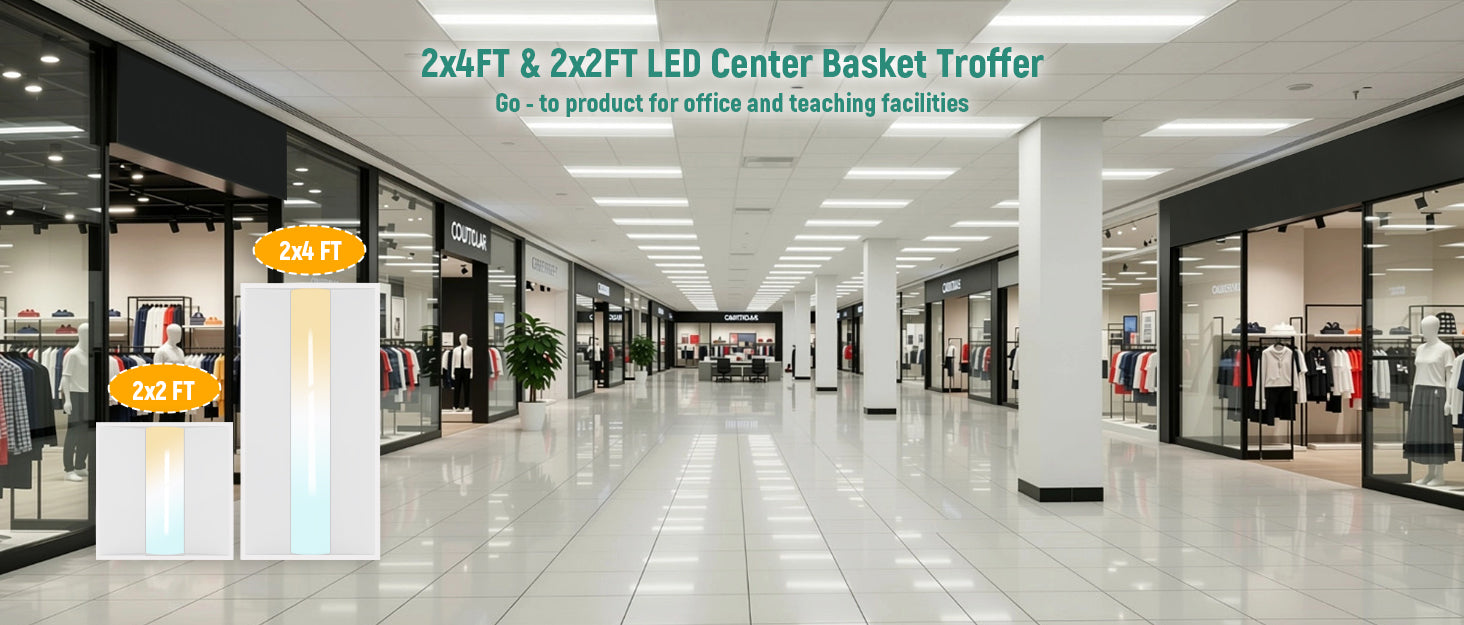

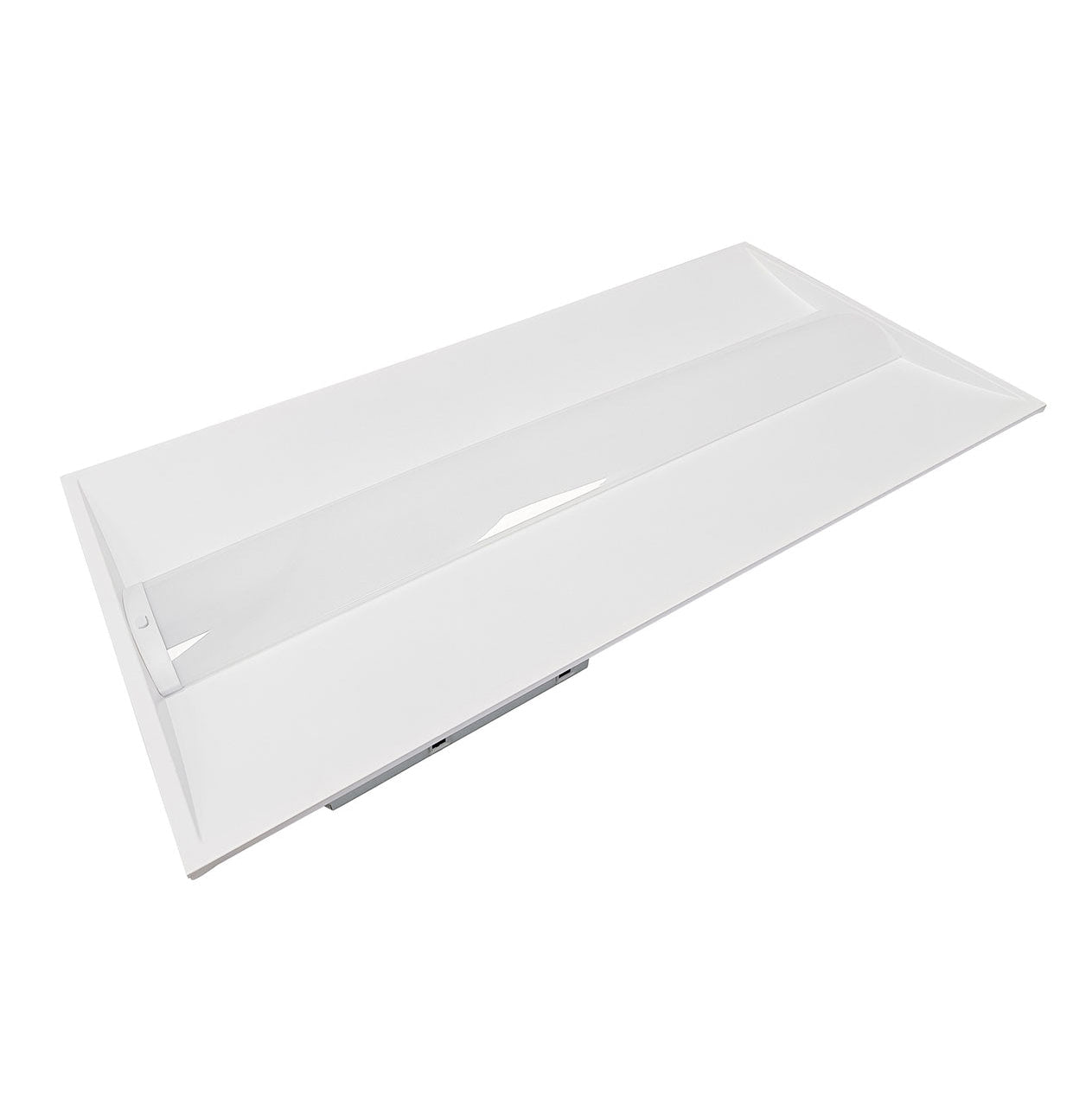

JEE 2x4 recessed LED centre basket troffer, five selectable wattages and five selectable CCTs set from switches on the driver box. No sensor base; sensors cannot be fitted to this version.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Over 50% energy saving against fluorescent
- 0-10V dimming standard

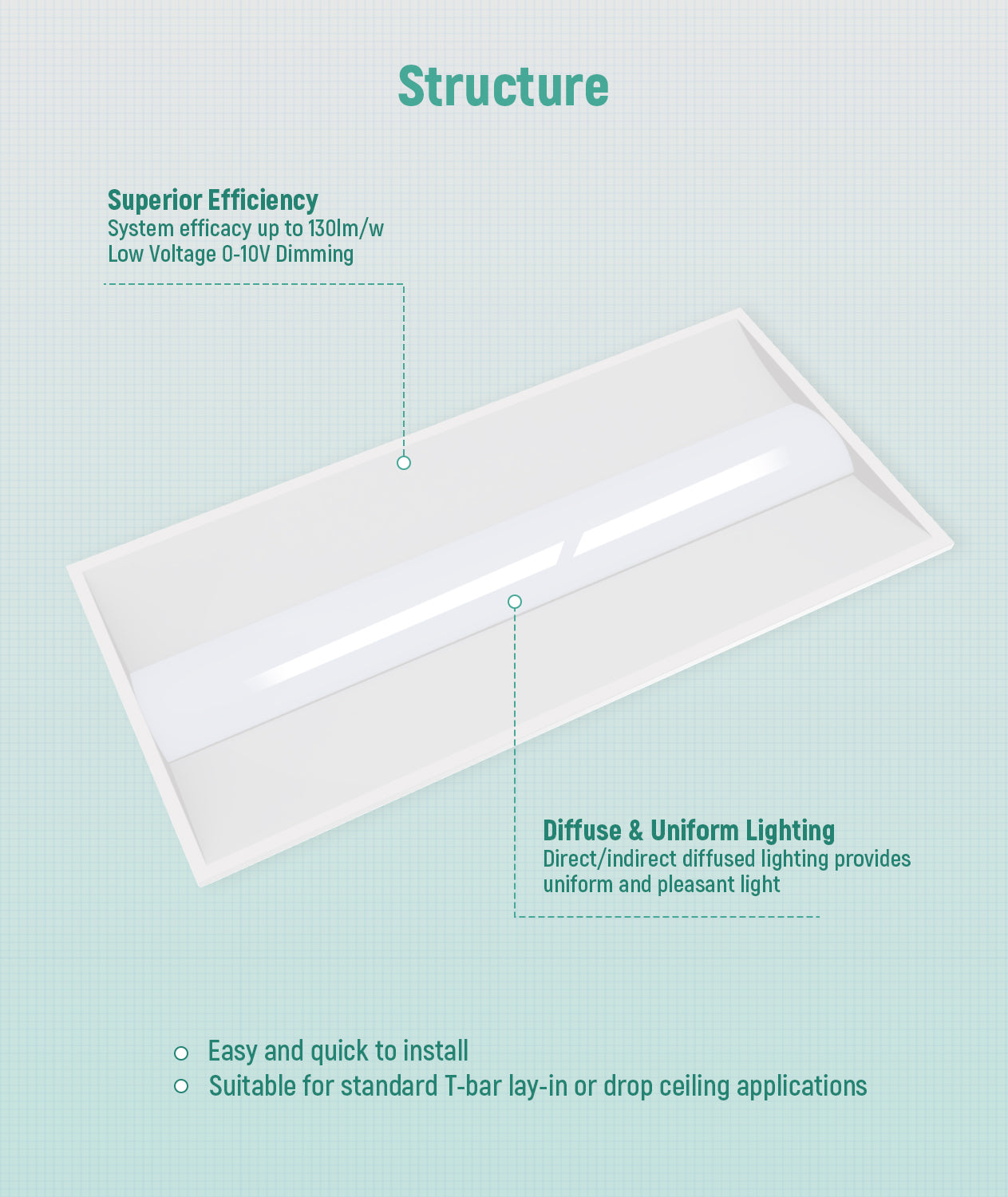

- 130 lm/W
- Rated for 50,000 hours
- ETL, DLC 5.1 Premium, FCC, RoHS
- 5-year limited warranty
Specifications
Construction
- One-piece ribbed unitized housing with interlocking corners
- All sides and corners turned in and hemmed, no sharp edges
- Driver fixed to the back of the panel to survive shipping
Electrical
- Universal voltage driver, 120-277V
- 0-10V continuous dimming standard
- THD ≤ 20%

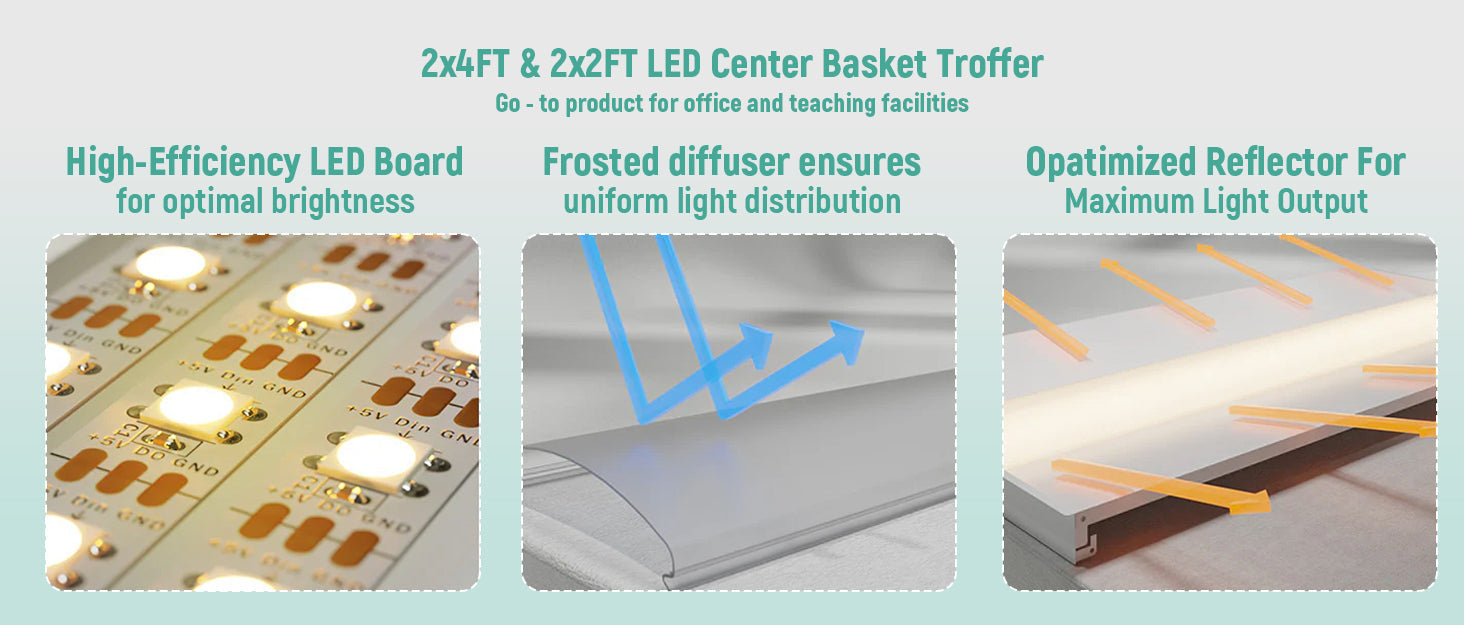

Optics
- Precision-formed optical system designed to reduce glare and improve distribution
Installation
- Recessed into standard T-bar grid ceilings

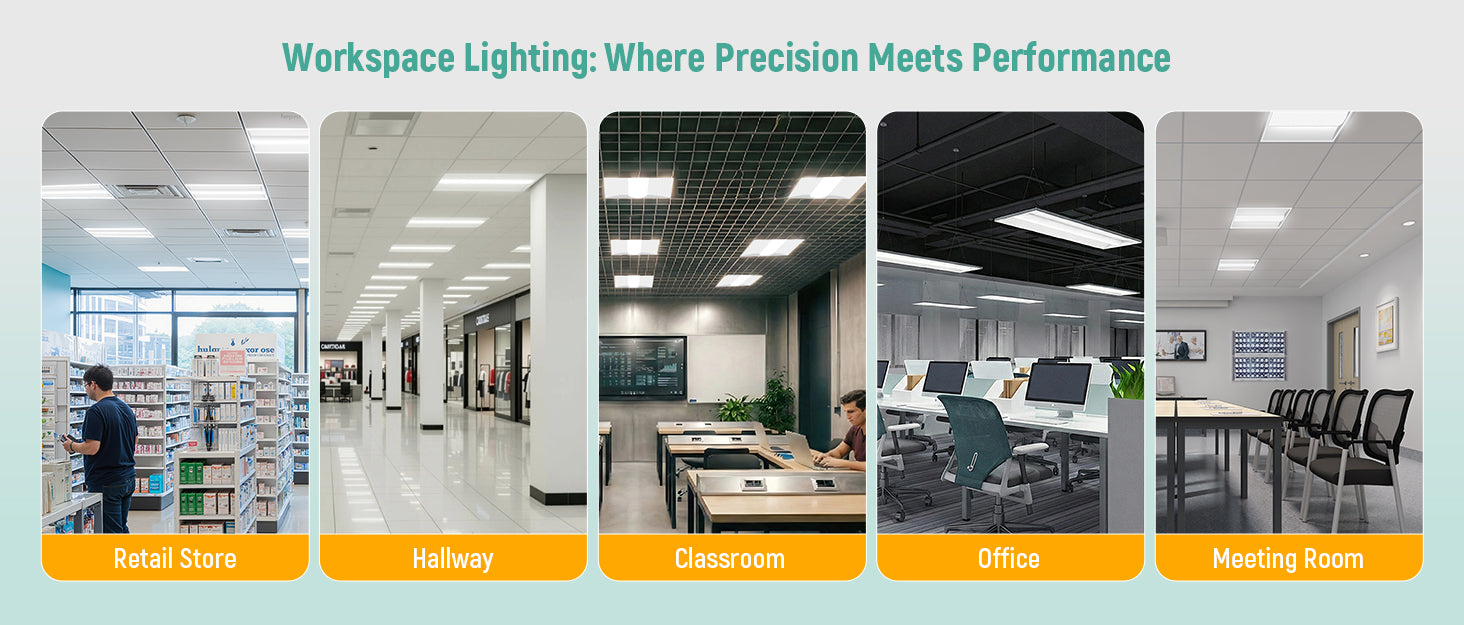

Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Residential
Downloads
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
Gielight
Gielight BPL5 2x4 Back-Lit LED Panel 30-72W30 / 40 / 50 / 60 / 72 W
$33.25
View →
-
EDIPAI
EDIPAI 2x4 LED Flat Panel G3, No Sensor Base 72W 10000lm, High or Low Bay15 / 30 / 40 / 50 / 72 W
$35.75
View →
-
StarLake
StarLake 2x4 LED Back-Lit Panel 30-72W72 / 60 / 50 / 40 / 30 W selectable
$37.00
View →
-
TCP
TCP 2x4 LED Panel 18-36W18 / 22 / 26 / 36 W
$39.75
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 15 / 20 / 30 / 40 / 50 W. Color temperature: 3500K, 4000K, 5000K, 5700K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
