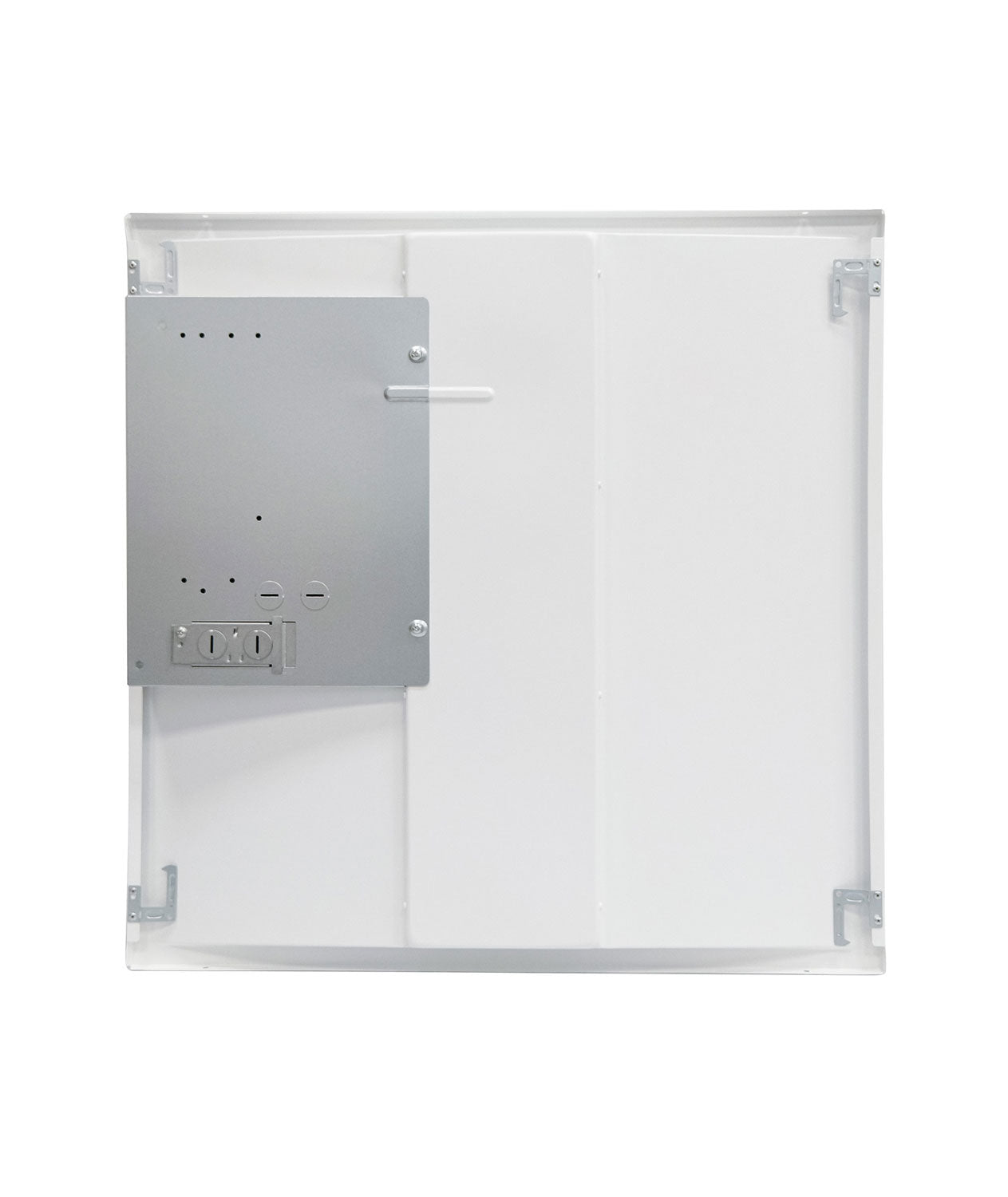

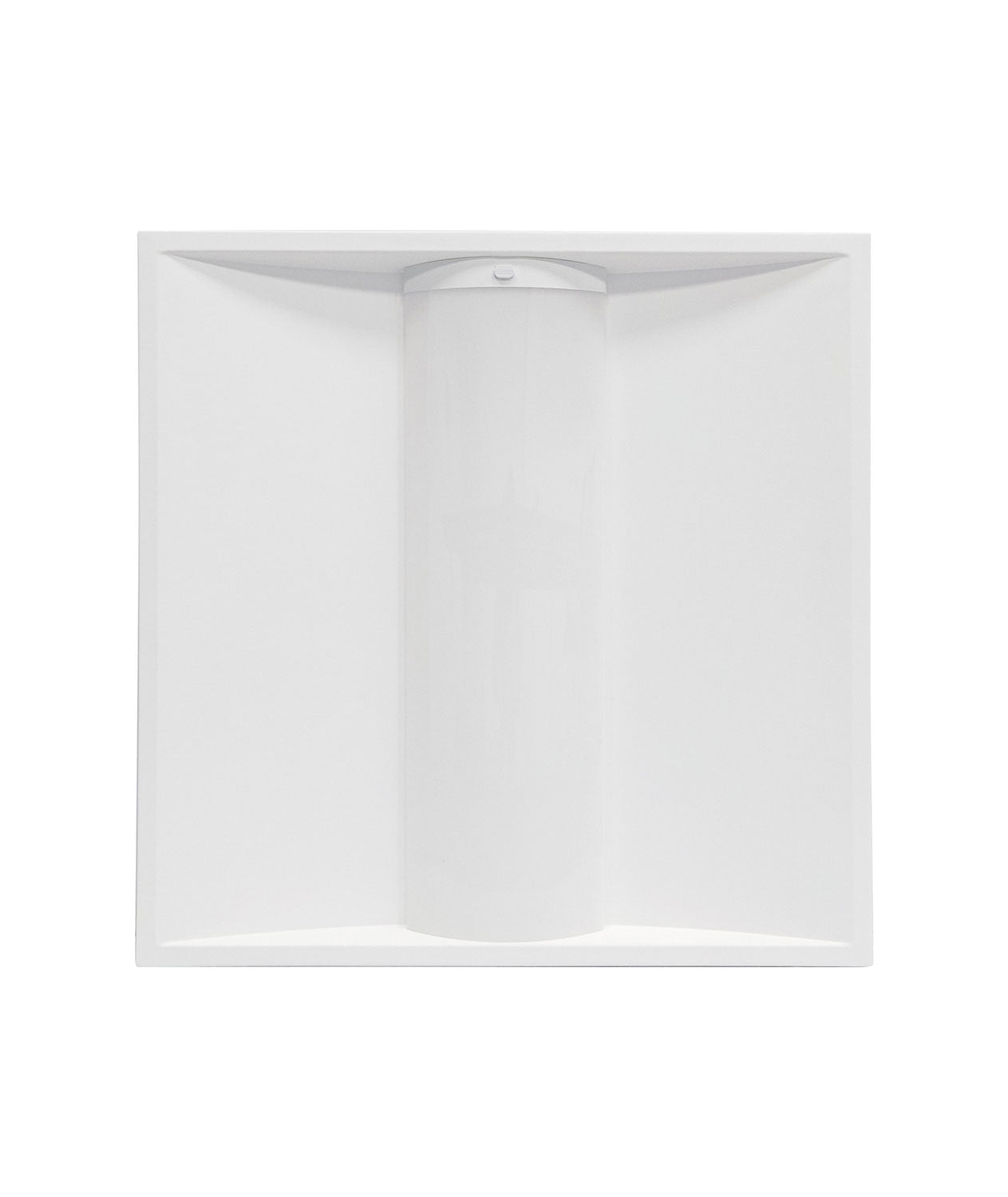

JEE 2x2 LED Center Basket 15-40W with Sensor Base
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-T2-S40-3565-S |
| Fixture type | Panels & Center Baskets |
| Family | 2x2 Center Basket |
| Size | 2x2 |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 5700K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base |
| Certifications | ETL, DLC |
| Product dimensions | 23.74 x 23.74 x 2.12 in (L x W x H) |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 24.61 x 8.59 x 25.08 in |
| Case pack weight | 22.14 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

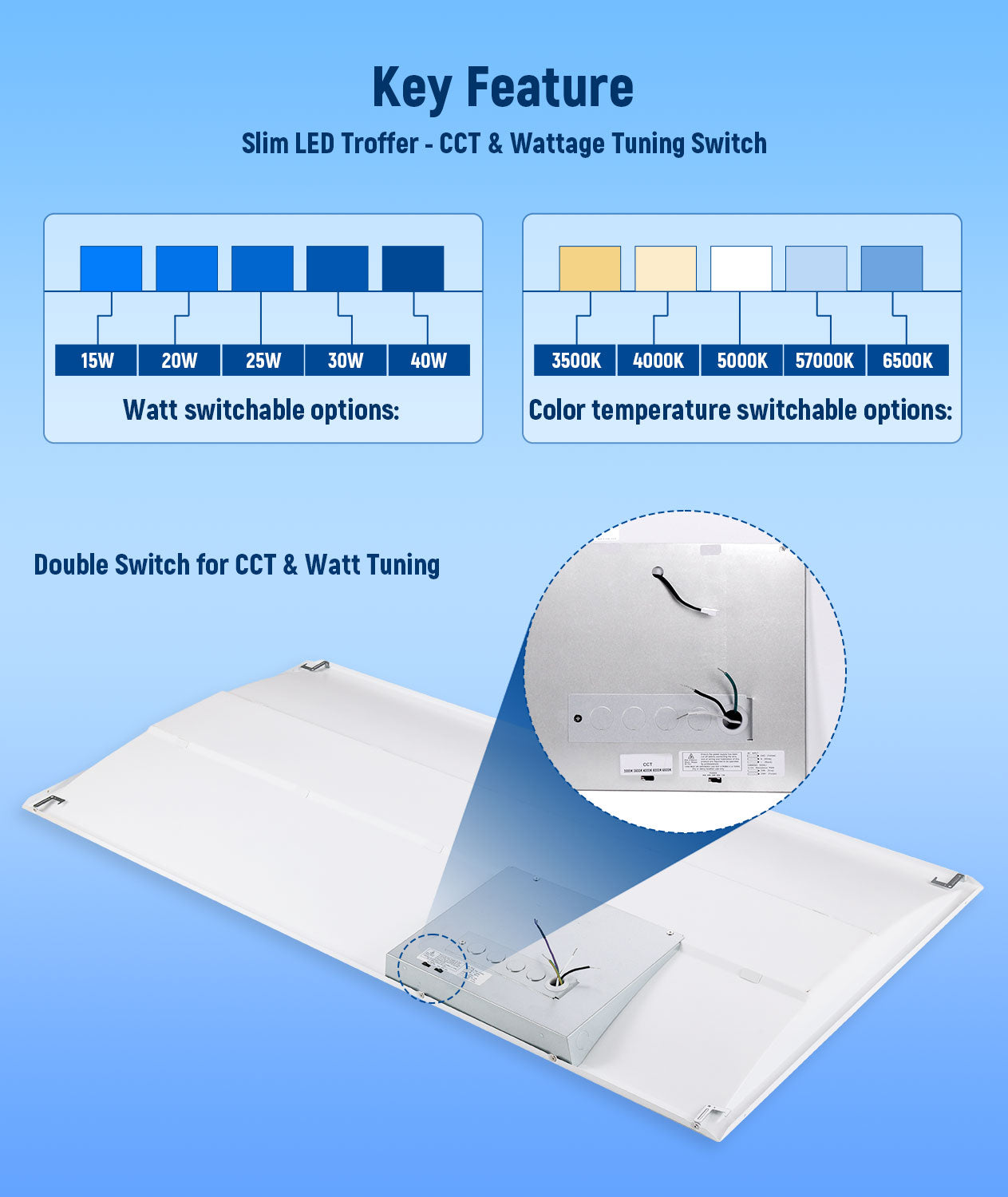

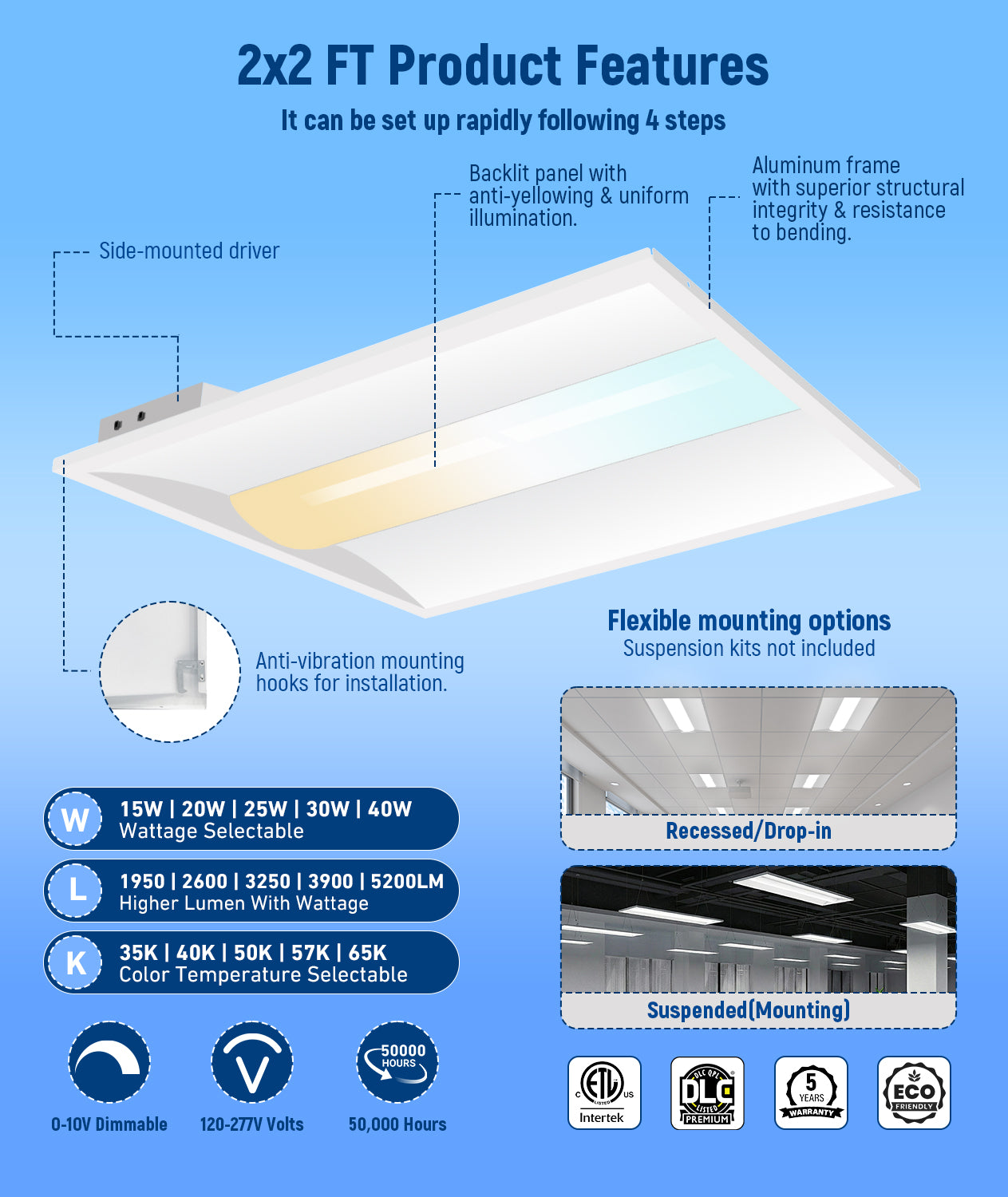

JEE 2x2 recessed LED centre basket troffer, five selectable wattages and five selectable CCTs set from switches on the driver box. Fitted with a sensor base.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Over 50% energy saving against fluorescent
- 0-10V dimming standard
- 130 lm/W
- Rated for 50,000 hours
- ETL, DLC 5.1 Premium, FCC, RoHS
- 5-year limited warranty
Specifications
Construction
- One-piece ribbed unitized housing with interlocking corners
- All sides and corners turned in and hemmed, no sharp edges
- Driver fixed to the back of the panel to survive shipping
Electrical
- Universal voltage driver, 120-277V
- 0-10V continuous dimming standard
- THD ≤ 20%
Optics
- Precision-formed optical system designed to reduce glare and improve distribution
Installation
- Recessed into standard T-bar grid ceilings
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Residential
Downloads
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $112.00
- $8.50
- $22.75
- $18.00
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
PIR Sensor, 3.5mm Audio Jack (ANT-1P-5T)
$8.50
Bluetooth PIR Sensor, 3.5mm Audio Jack (ANT-1P-5T-BLE-GE)
$22.75
Remote Controller for ANT-1P-5T and ANT-1P-5T-BLE-GE
$18.00
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
EDIPAI
EDIPAI 2x2 LED Flat Panel G3, No Sensor Base 50W 6250lm15 / 20 / 30 / 40 / 50 W
$23.00
View →
-
Gielight
Gielight GL-PL05 2x2 LED Panel 30-72W30 / 40 / 50 / 60 / 72 W
$24.00
View →
-
TCP
TCP 2x2 LED Panel 15-35W15 / 18 / 22 / 35 W
$26.50
View →
-
StarLake
StarLake 2x2 LED Back-Lit Panel 15-40W40 / 30 / 25 / 20 / 15 W selectable
$27.25
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 15 / 20 / 25 / 30 / 40 W. Color temperature: 3500K, 4000K, 5000K, 5700K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
