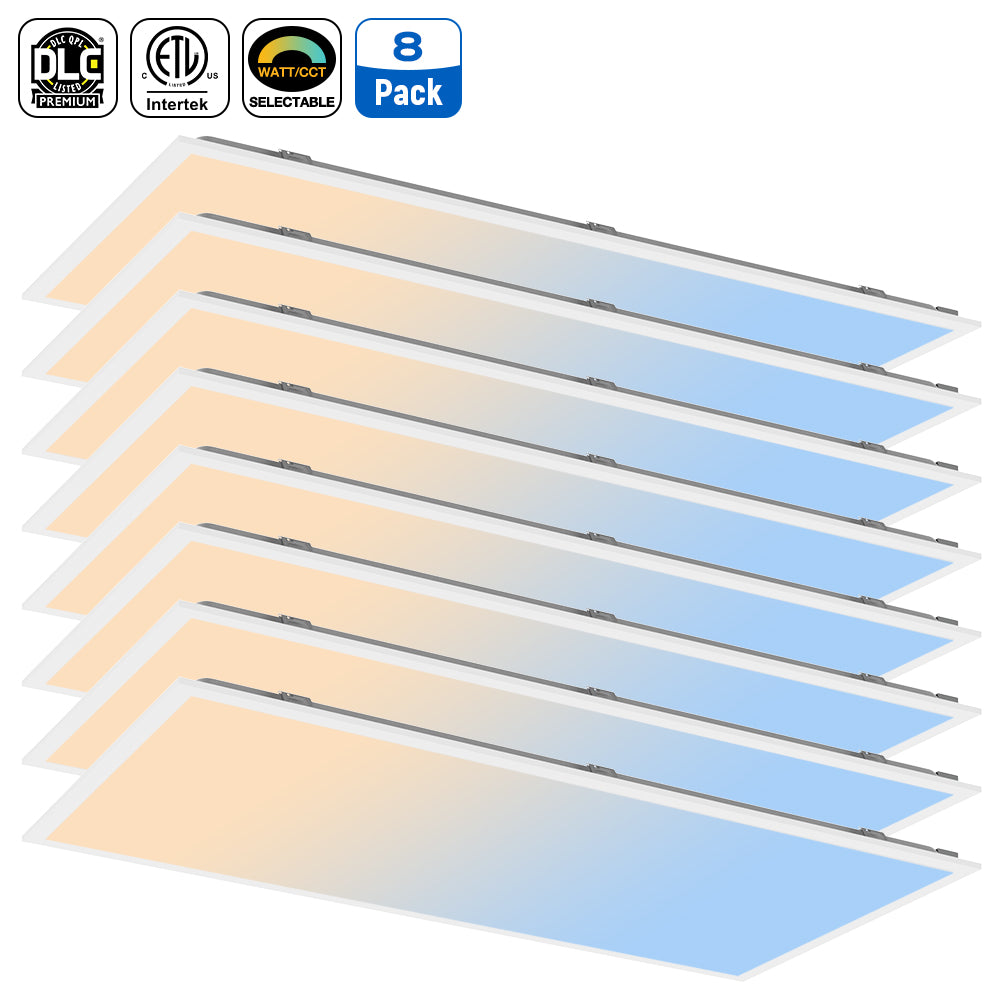

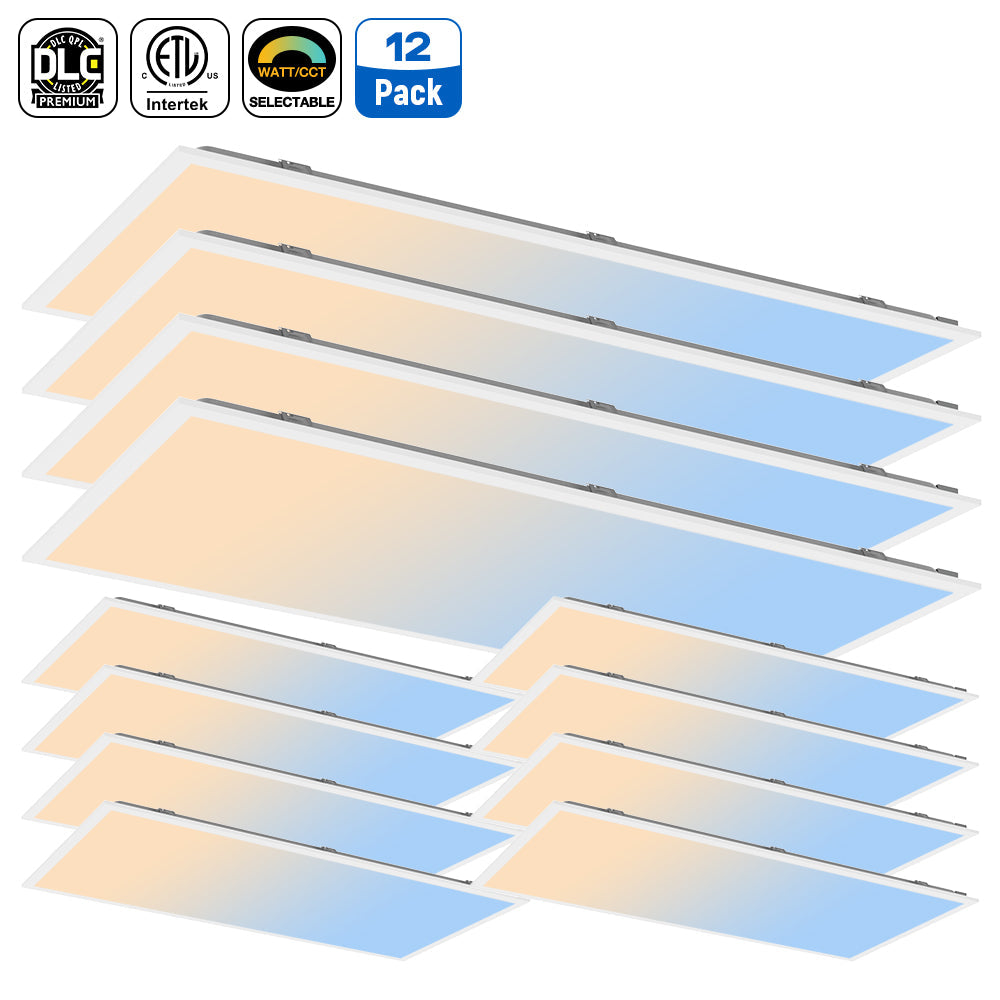

JEE 2x4 LED Panel 30-72W with Sensor Base
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | JEE Lighting |
|---|---|
| Model / part number | J-B4-S72-3565-S |
| Fixture type | Panels & Center Baskets |
| Family | 2x4 Panel |
| Size | 2x4 |
| Color temperature (CCT) | 3500K, 4000K, 5000K, 5700K, 6500K |
| Input voltage | 120-277V |
| Controls | Sensor base |
| Certifications | ETL, DLC |

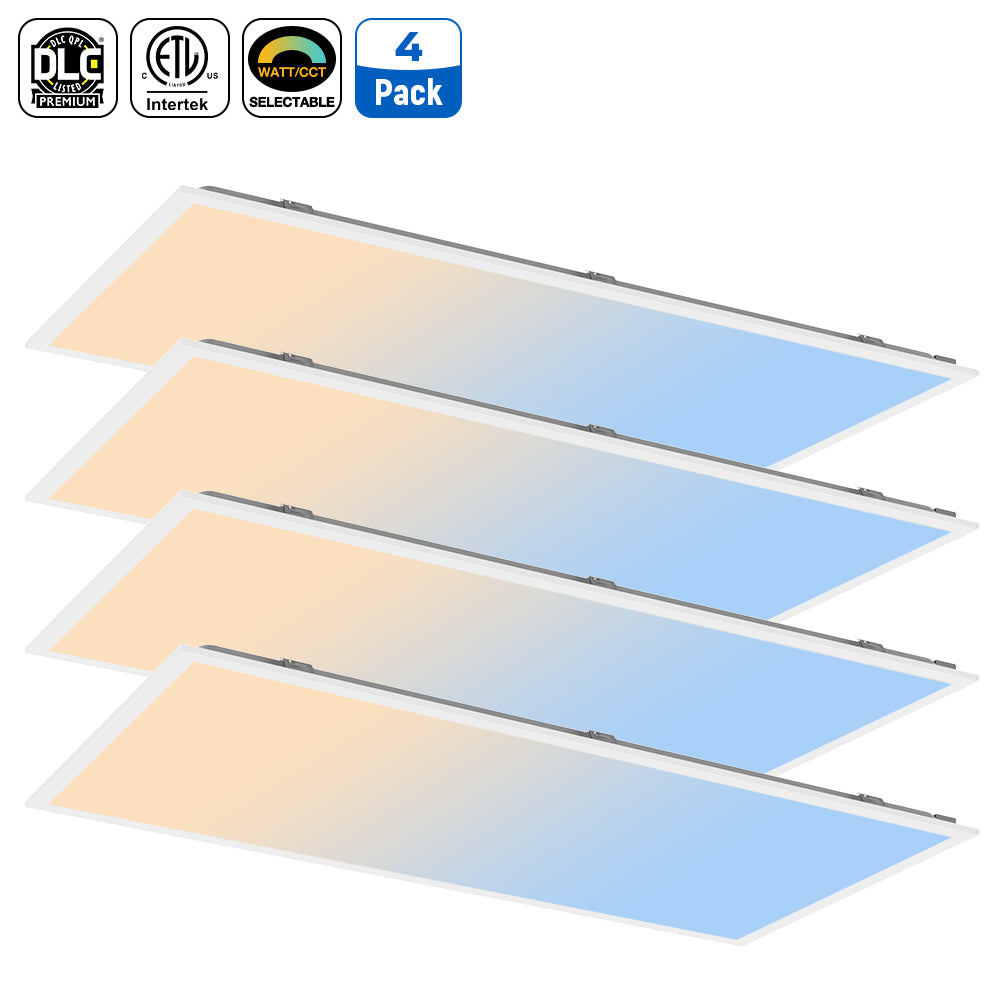

| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Case pack dimensions (L x W x H) | 48.82 x 5.71 x 24.81 in |
| Case pack weight | 34.38 lbs (full case, gross) |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |

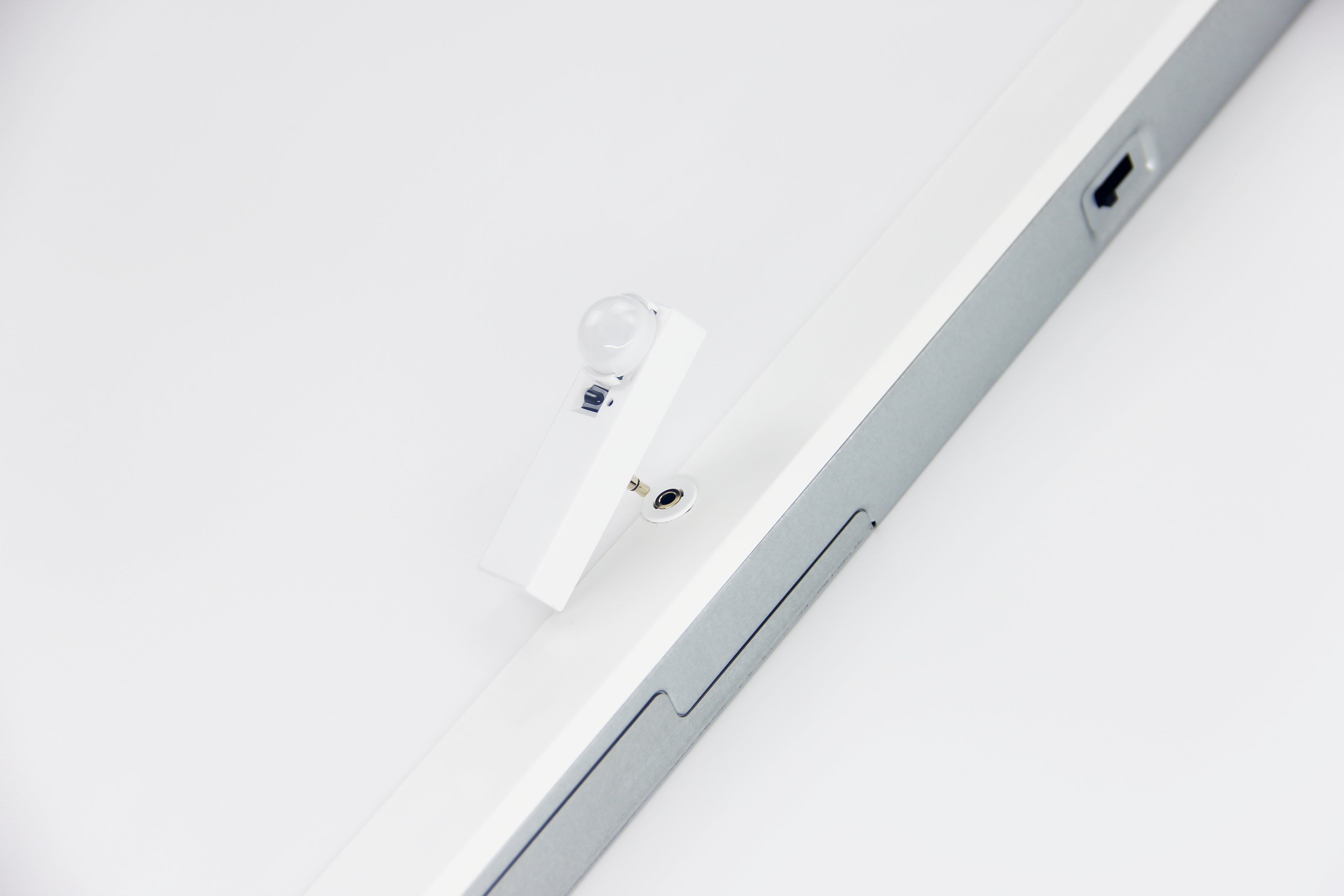

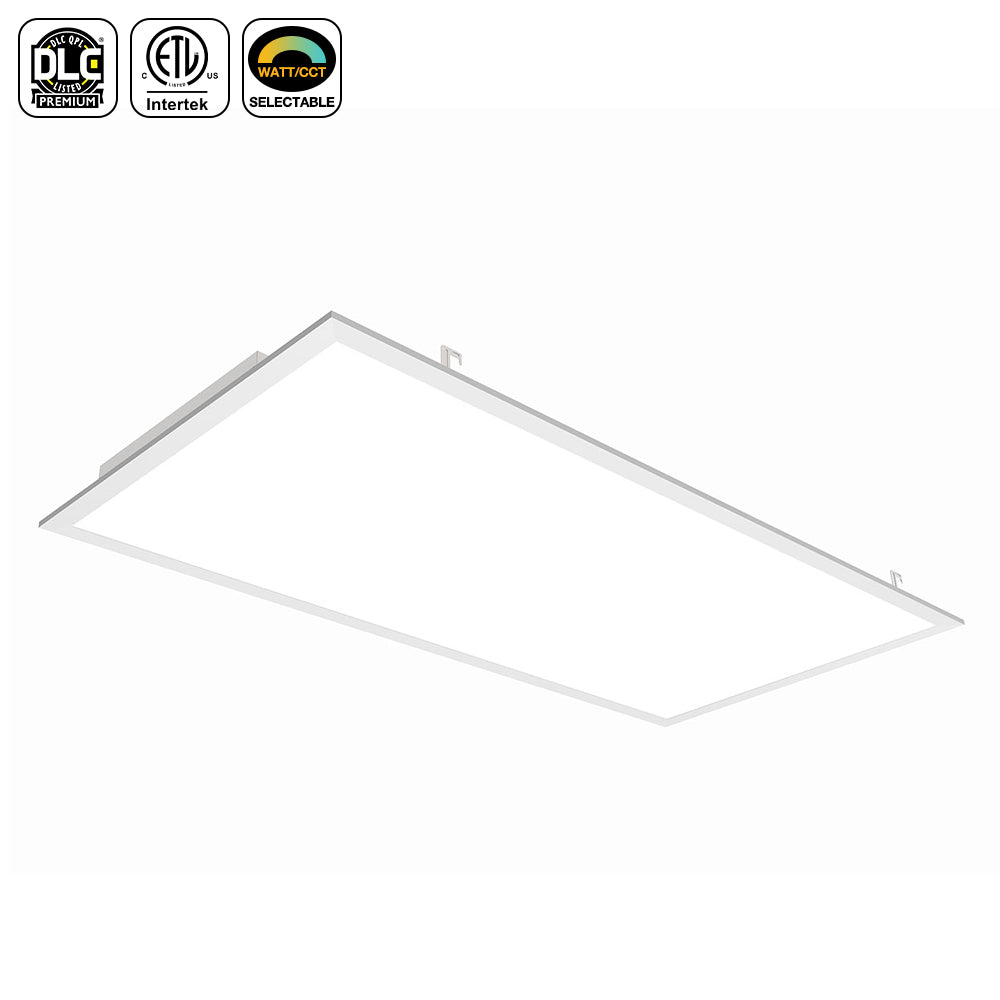

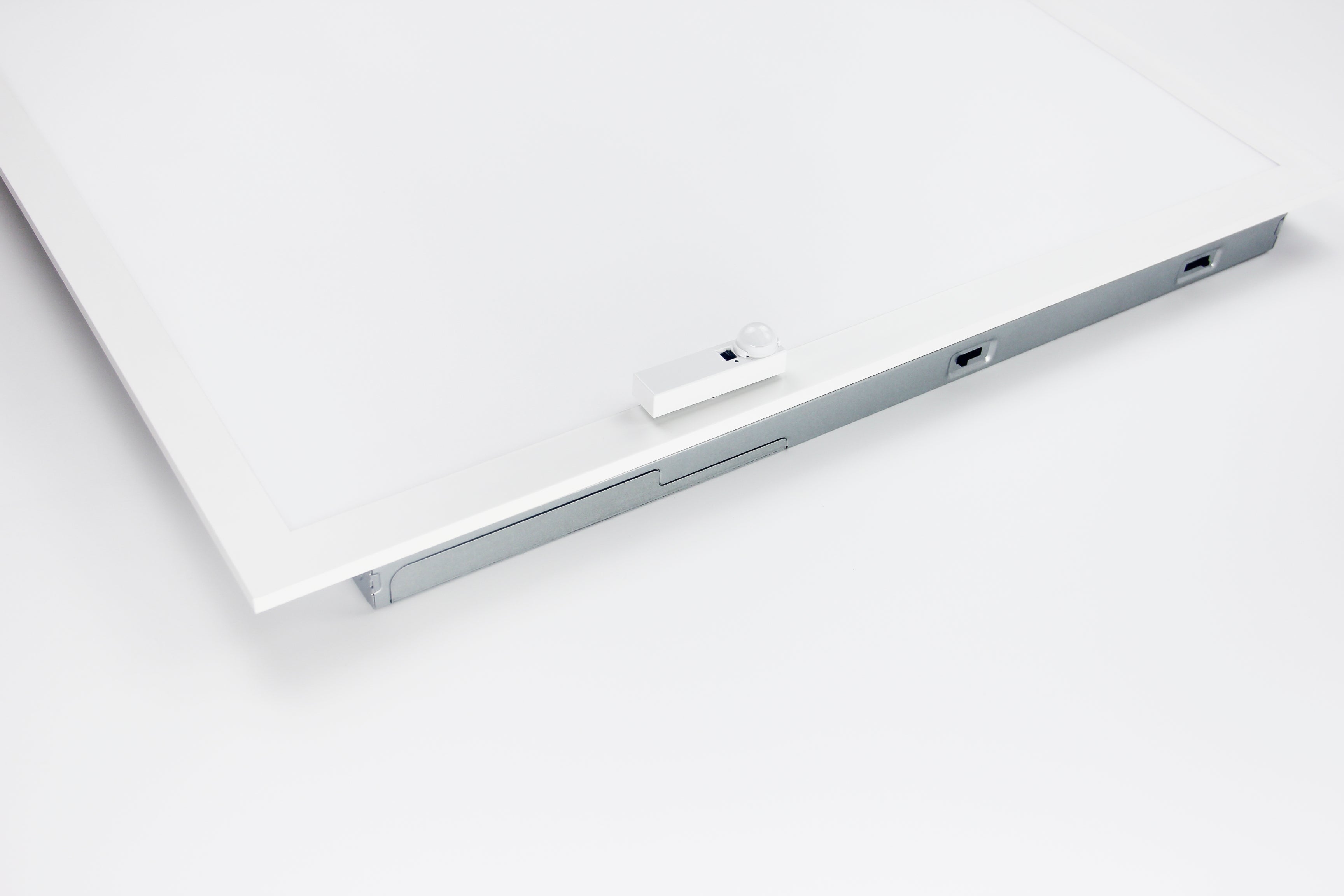

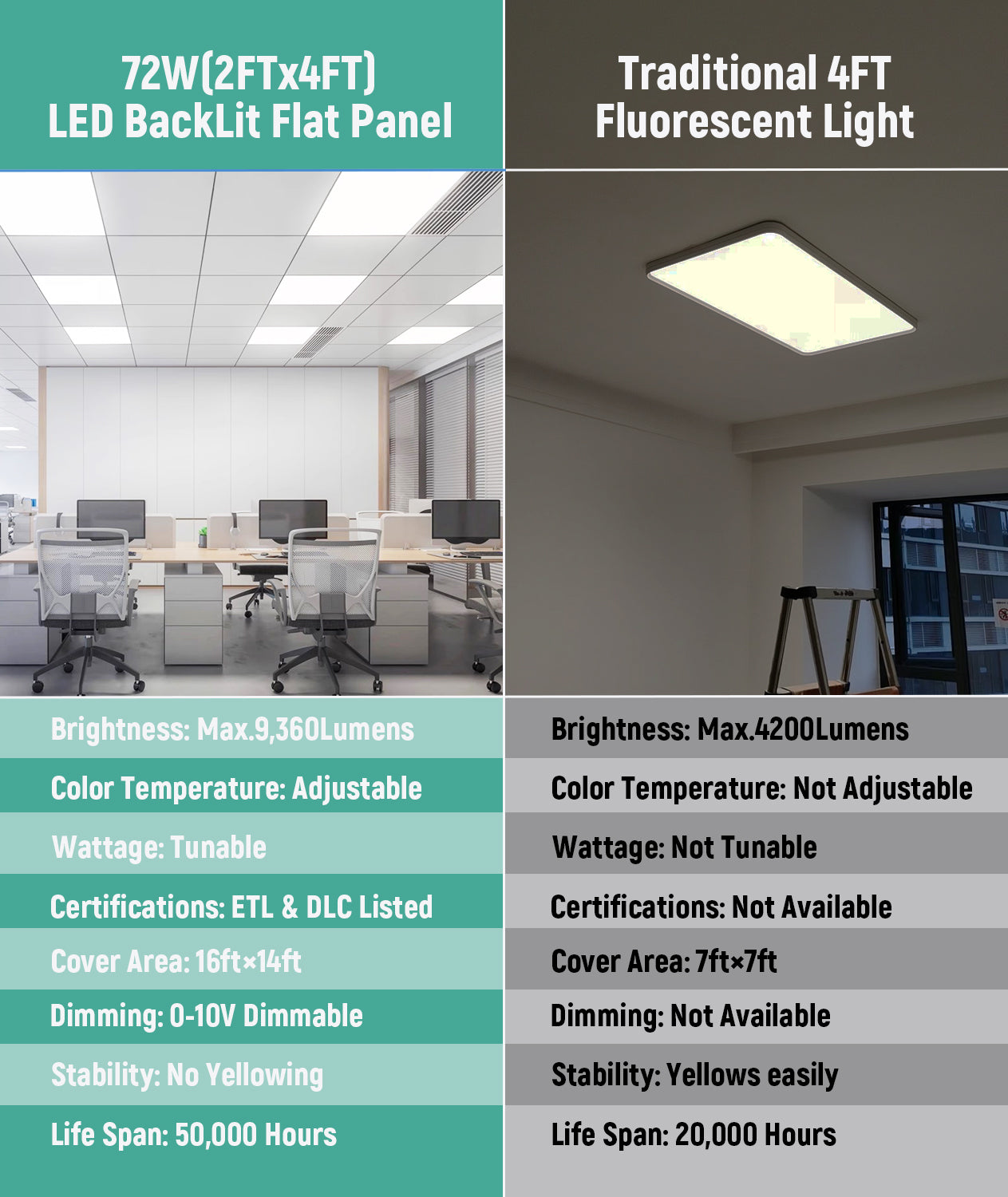

JEE 2x4 backlit LED panel, five selectable wattages and five selectable CCTs on one SKU. Fitted with a sensor base. 3.5mm audio jack sensors plug straight in.
- 5 selectable wattages and 5 selectable CCTs on one SKU

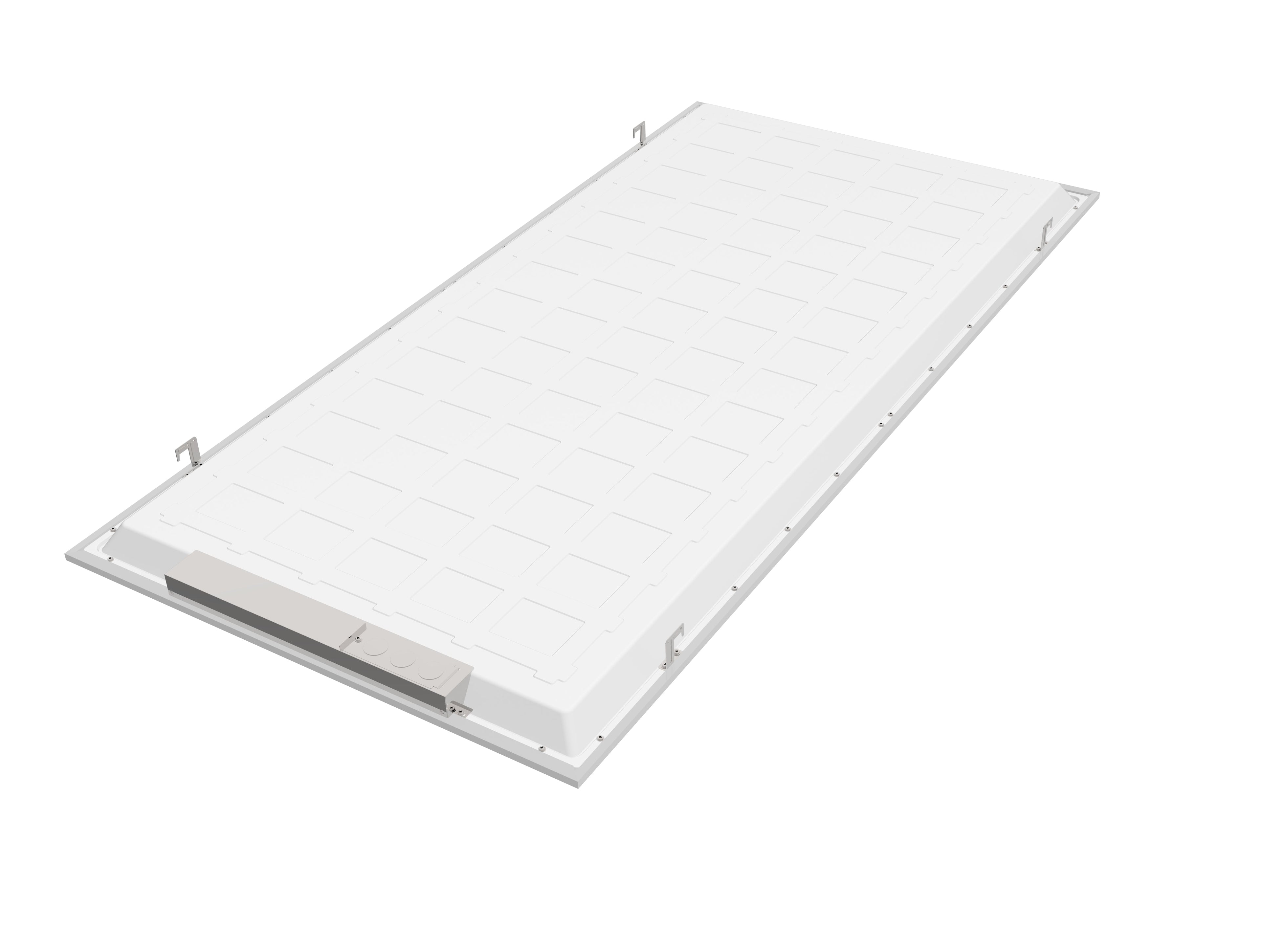

- Backlit technology for even, uniform output
- 0-10V dimming as standard
- ETL listed and suitable for damp location
- DLC 5.1 Premium
- 5-year limited warranty
Specifications
Construction
- Integrative aluminium frame provides a durable structure
- 5 wattage and 5 CCT selectable switches integrated on the driver
- Minimise stock: 1 SKU covers a maximum of 25 models
Electrical
- Input voltage 120-277Vac 50/60Hz
- 0-10V dimming
- THD ≤ 20%, PF ≥ 0.9
Installation
- Suitable for recessed mounting with T-bar
- Suspension and surface mounting accessories available
- Ambient temperature range -20°C to 45°C

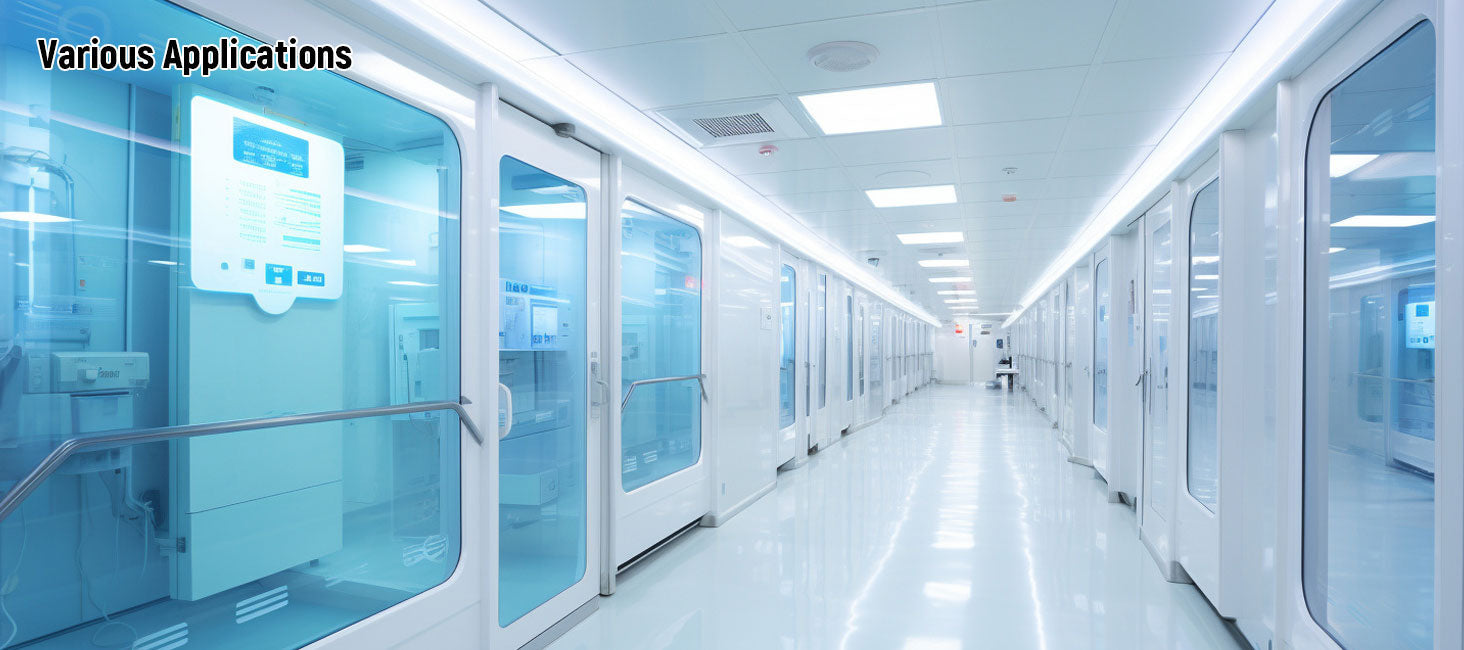

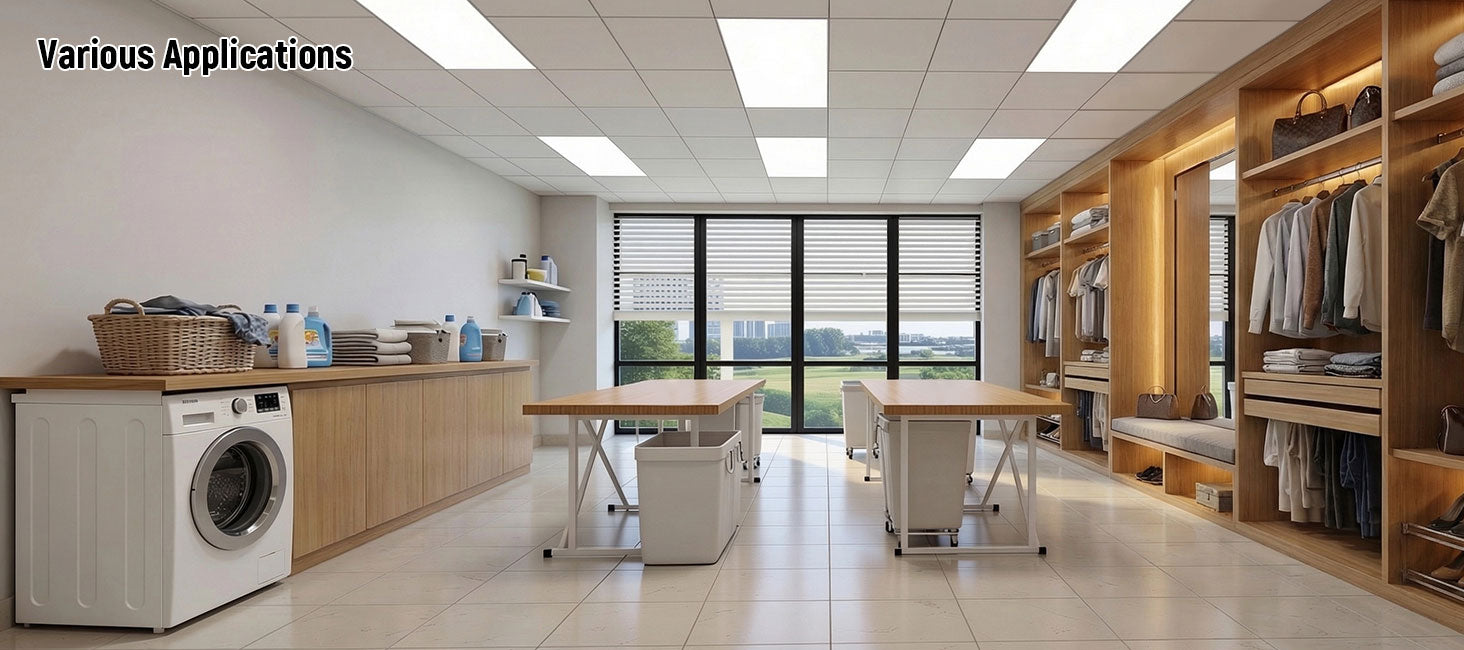

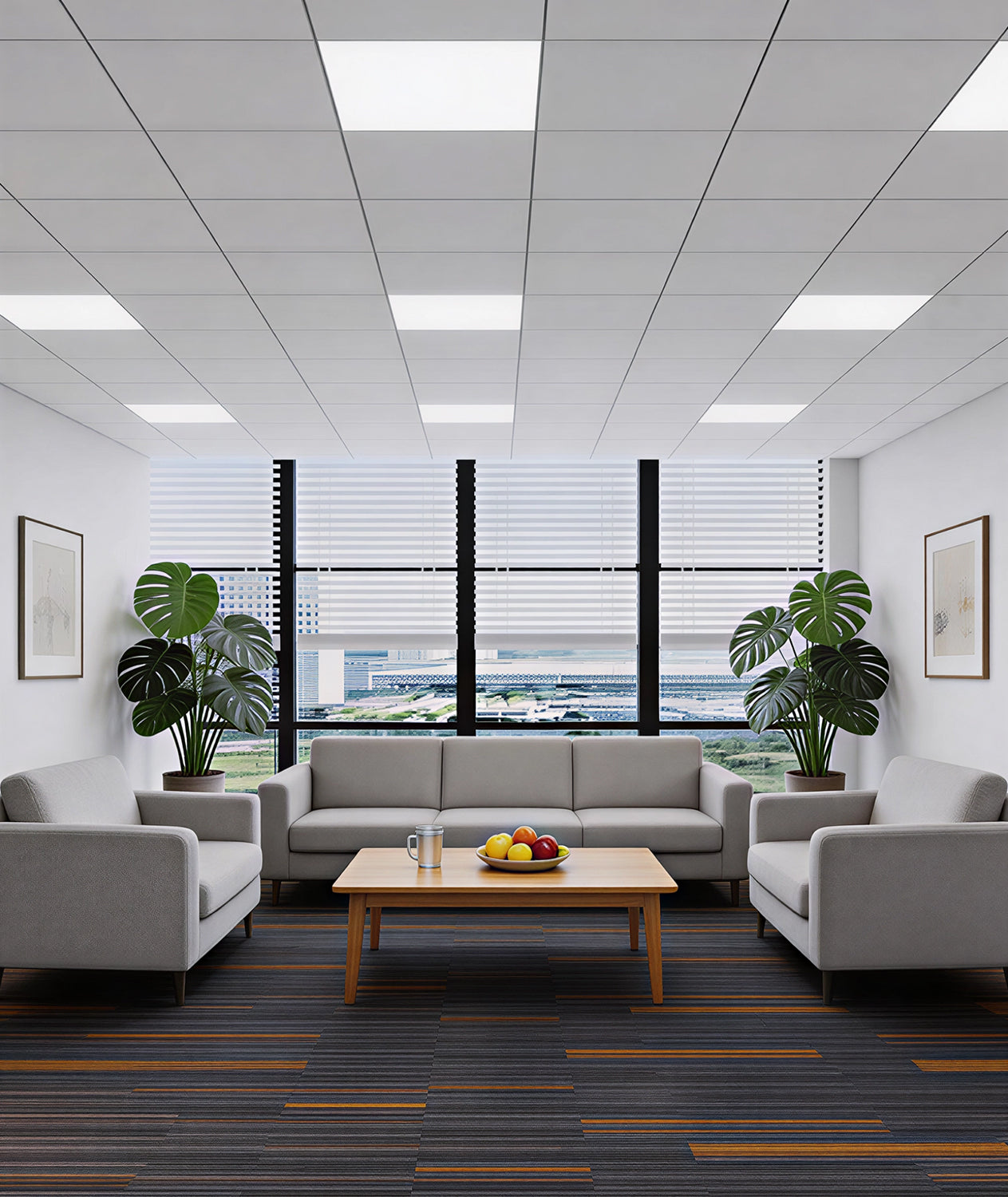

Ideal applications

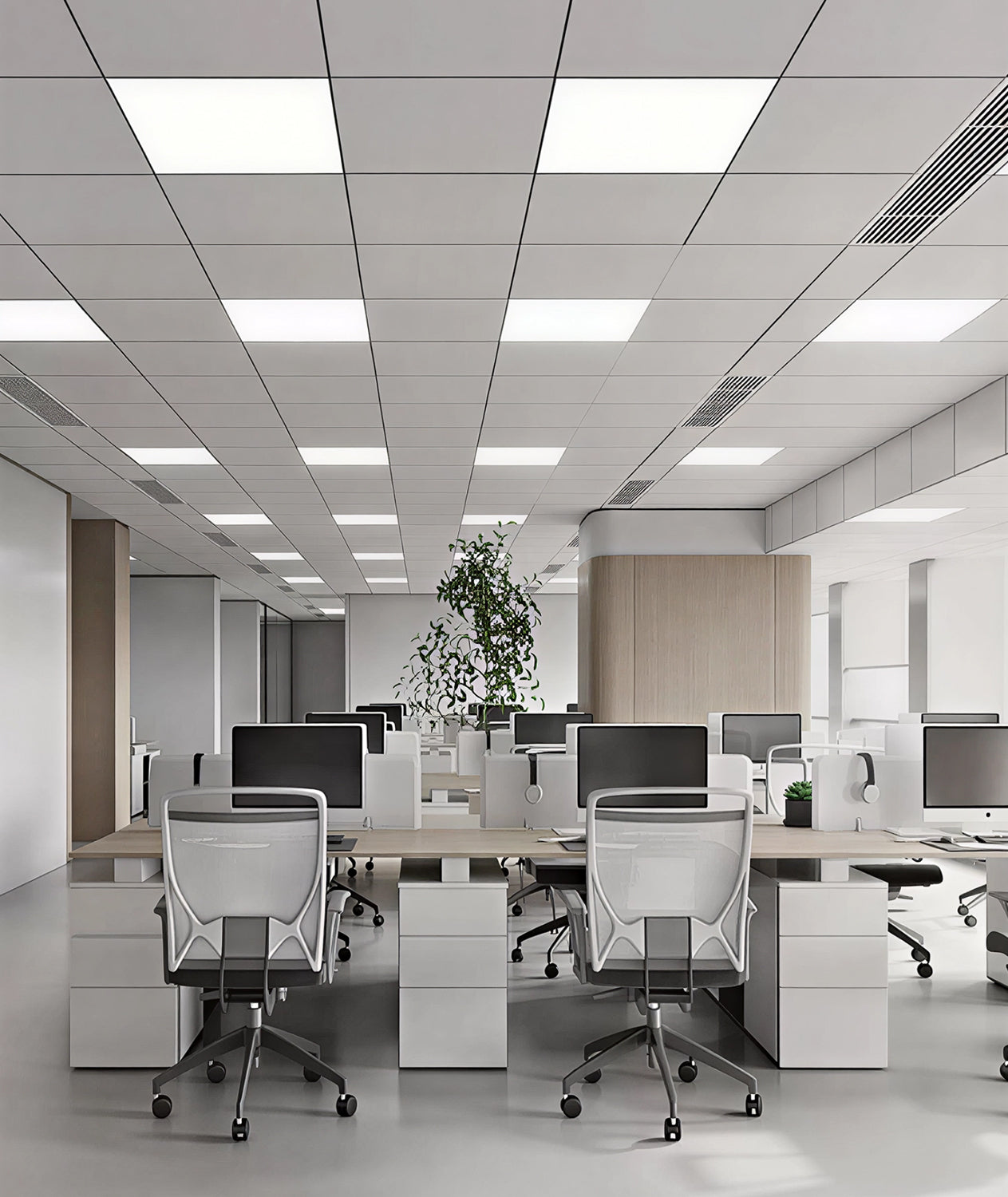

- Offices
- Retail
- Schools
- Restaurants
- Healthcare
- Residential
- Hospitality
Downloads
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $142.00
- $15.50
- $56.00
- $8.50
- $22.75
- $18.00
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
JEE Surface Mount Kit, 2x4
$15.50
Emergency LED Driver, 8W, 90-min battery, for back-lit panels
$56.00
PIR Sensor, 3.5mm Audio Jack (ANT-1P-5T)
$8.50
Bluetooth PIR Sensor, 3.5mm Audio Jack (ANT-1P-5T-BLE-GE)
$22.75
Remote Controller for ANT-1P-5T and ANT-1P-5T-BLE-GE
$18.00
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
Gielight
Gielight BPL5 2x4 Back-Lit LED Panel 30-72W30 / 40 / 50 / 60 / 72 W
$33.25
View →
-
EDIPAI
EDIPAI 2x4 LED Flat Panel G3, No Sensor Base 72W 10000lm, High or Low Bay15 / 30 / 40 / 50 / 72 W
$35.75
View →
-
StarLake
StarLake 2x4 LED Back-Lit Panel 30-72W72 / 60 / 50 / 40 / 30 W selectable
$37.00
View →
-
TCP
TCP 2x4 LED Panel 18-36W18 / 22 / 26 / 36 W
$39.75
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 30 / 40 / 50 / 60 / 72 W. Color temperature: 3500K, 4000K, 5000K, 5700K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
Factory controls listed by the manufacturer: Sensor base. Check the spec sheet for exactly what is in the box.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
