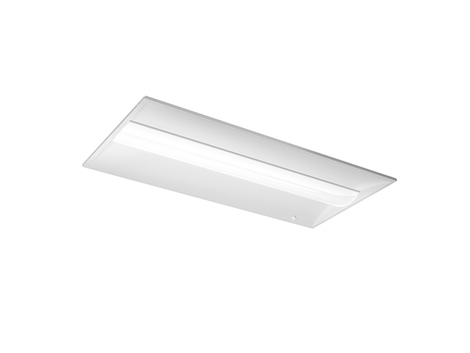

Gielight TTR5 2x4 LED Center Basket Troffer 30-72W, No Sensor Base
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
- ETL Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
- Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
- Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
- Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.
Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | TTR5-24-72W-L-HY |
| Fixture type | Panels & Center Baskets |
| Family | 2x4 Troffer |
| Size | 2x4 |
| Color temperature (CCT) | 3000K, 3500K, 4000K, 5000K, 6500K |
| Input voltage | 120-277V |
| Certifications | ETL |
| Case pack quantity | 4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case. |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
2x4 centre-basket troffer with five selectable wattages and five selectable CCTs on one SKU.
- 5 selectable wattages, 5 selectable CCTs on one SKU
- Centre-basket polycarbonate diffuser
- 0-10V dimming as standard
- PF > 0.95, THD < 20%
- Rated life > 54,000 hours
- 5-year limited warranty
Specifications
Construction
- White high-strength metal frame, seamless
- Polycarbonate centre-basket diffuser
- Centre basket softens the source and lifts the ceiling plane
Electrical
- Input 120-277VAC
- 0-10V dimming
- PF > 0.95, THD < 15% at full load
- 5 selectable wattages and 5 selectable CCTs on the driver
Installation
- Recessed into a conventional grid ceiling
- Surface mount kit available separately
- Operating range -30°C to 40°C (-22°F to 104°F)
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
Downloads
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $162.00
- $17.00
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
Gielight Surface Mount Kit, 2x4
$17.00
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
JEE Lighting
JEE 2x4 LED Panel 15-50W15 / 20 / 30 / 40 / 50 W
$32.50
View →
-
EDIPAI
EDIPAI 2x4 LED Flat Panel G3, No Sensor Base 72W 10000lm, High or Low Bay15 / 30 / 40 / 50 / 72 W
$35.75
View →
-
StarLake
StarLake 2x4 LED Back-Lit Panel 30-72W72 / 60 / 50 / 40 / 30 W selectable
$37.00
View →
-
TCP
TCP 2x4 LED Panel 18-36W18 / 22 / 26 / 36 W
$39.75
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 30 / 40 / 50 / 60 / 72 W. Color temperature: 3000K, 3500K, 4000K, 5000K, 6500K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.
What certifications does it have?
Listed by the manufacturer as: ETL.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
