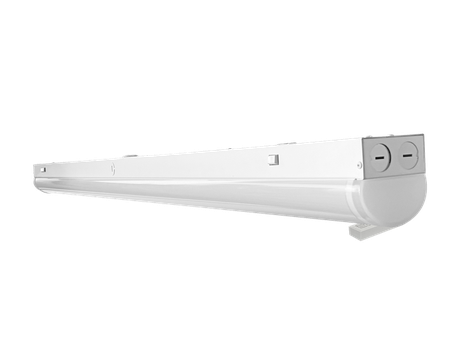

Gielight GL-ST01 4ft LED linear strip light
Gielight GL-ST01 4ft LED Linear Strip 30-70W

Gielight GL-ST01 4ft LED Linear Strip 30-70W

Product Number:GL-ST01-70W-H-5000K (with sensor base)
$32.50

Add-ons for this fixture

Pick several at once

Sensors, connectors and parts that fit this fixture. They ship on the same freight.

  • UL Listed
  • 5 Year Warranty

Automatic volume discount on your product total (freight not included)

  • $500 to $1,9995%
  • $2,000 to $3,9996%
  • $4,000 to $5,9997%
  • $6,000 to $7,9998%
  • $8,000 to $9,9999%
  • $10,000 to $19,99910%
  • $20,000 to $49,99912%
  • $50,000+15%

Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.

Spec sheet (PDF) From the manufacturer, opens in a new tab
Ships in a full factory case of 9
Packed by the manufacturer. Arrives ready to install.
  • Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
  • Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
  • Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.

Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.

Key specifications

ManufacturerGielight
Model / part numberGL-ST01-70W-H-5000K (with sensor base)
Fixture typeStrip Lights
Family4ft Linear Strip
Size4ft
Color temperature (CCT)5000K
Input voltage120-277V
ControlsSensor base
CertificationsUL
Case pack quantity9 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Warranty5 year minimum manufacturer warranty
ShippingShips from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works
Product family 4ft Linear Strip
Factory controls Sensor base
Certifications UL

4ft linear strip on the GL-ST01 build — same housing as the ST- series above, stepped up to five wattages, five CCTs and 150 lm/W on a UL file rather than ETL. Ships with the sensor base fitted; the sensor head is ordered separately.

  • 5 selectable wattages, 5 selectable CCTs
  • 150 lm/W — the highest-efficacy strip in the line
  • UL Listed under file E503400
  • 0-10V dimming as standard
  • 5-year limited warranty

Specifications

Wattage
30 / 40 / 50 / 60 / 70 W
Lumens
4,500 – 10,500 lm
Efficacy
up to 150 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
Power factor
> 0.9
Dimensions
48.03" x 2.95" x 2.99" (1220 x 75 x 76mm)
Housing
Identical to the ST- series; the two lines differ on efficacy, listing and wattage steps, not on the body
Sensor jack
This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here — a 2.5mm head will not seat in this base.

Construction

  • Same housing as the ST- series — 2.95" x 2.99" (75 x 76mm) section
  • 4FT overall 1220mm; 8FT overall 2438mm
  • Frosted lens with a screw-free end cover

Electrical

  • Input 120-277VAC
  • 0-10V dimmable driver
  • PF > 0.9
  • Five selectable wattages and five selectable CCTs

Installation

  • Surface mount, suspended, or recessed
  • Sensor and Bluetooth modules can be fitted in the field
  • Sensor base wiring: black and white VCC, pink GND, purple 0-10V

Ideal applications

  • Warehouses
  • Workshops
  • Retail stockrooms
  • Corridors
  • Parking structures
  • Utility rooms

Downloads

Spec sheet (PDF) — Gielight-LED-Linear-Strip-GL-ST01-ST03.pdf
