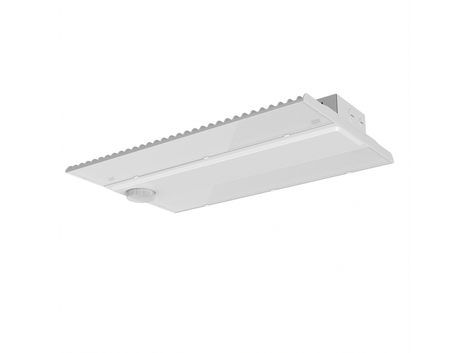

Gielight GL-HB6 compact LED linear high bay
Gielight GL-HB6 Compact LED Linear High Bay 180-220W

Gielight GL-HB6 Compact LED Linear High Bay 180-220W

Product Number:GL-HB6-220W-L
$71.50

Add-ons for this fixture

Pick several at once

Sensors, connectors and parts that fit this fixture. They ship on the same freight.

  • UL Listed
  • DLC Listed
  • 5 Year Warranty

Automatic volume discount on your product total (freight not included)

  • $500 to $1,9995%
  • $2,000 to $3,9996%
  • $4,000 to $5,9997%
  • $6,000 to $7,9998%
  • $8,000 to $9,9999%
  • $10,000 to $19,99910%
  • $20,000 to $49,99912%
  • $50,000+15%

Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.

Spec sheet (PDF) From the manufacturer, opens in a new tab
Ships in a full factory case of 4
Packed by the manufacturer. Arrives ready to install.
  • Lower freight per fixture. Freight carriers charge a minimum on every shipment, so a full case spreads that cost across more fixtures and your cost per fixture goes down.
  • Factory packed for the trip. Your fixtures stay in the manufacturer's own sealed master case, built to travel by freight and arrive ready to install.
  • Extras on hand. A few extra fixtures cover the next add on or change order without waiting on another shipment.

Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.

Key specifications

ManufacturerGielight
Model / part numberGL-HB6-220W-L
Fixture typeHigh Bays
FamilyCompact Linear High Bay
Color temperature (CCT)4000K, 5000K
Input voltage120-347V
CertificationsUL, DLC
Case pack quantity4 per case. Don't need a full case? Text 845-681-2684 and we'll try to get you a half case.
Warranty5 year minimum manufacturer warranty
ShippingShips from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works
Product family Compact Linear High Bay
Factory controls No controls
Certifications ULDLC

Die-cast compact linear high bay, three selectable wattages and two selectable CCTs, on a wide AC120-347V input. Driver efficiency > 93%, the highest in the Gielight high bay line.

  • 3 selectable wattages, 2 selectable CCTs
  • Die-cast aluminium body
  • AC120-347V wide input
  • UL Listed under file E503399
  • Driver efficiency > 93%
  • LM79 and LM80 tested
  • 5-year limited warranty

Specifications

Wattage
180 / 200 / 220 W
Lumens
25,200 to 30,800 lm
Efficacy
up to 140 lm/W
Colour temperature
4000K / 5000K
Voltage
120 to 347V
Warranty
5-year limited warranty
CRI
Ra > 80
Power factor
> 0.95
THD
< 20%
Driver efficiency
> 93%
Input current
2.2A
Beam angle
116.5° average at 50%
Dimensions
18.11" x 10.63" x 2.17" (460 x 270 x 55mm)
Sensor jack
This fixture takes 3.5mm-jack sensor heads. Only 3.5mm parts are offered here; a 2.5mm head will not seat in this base.

Construction

  • Die-cast aluminium body with a light-transmittance PC cover
  • UGR < 28
  • Compact body, shorter than a conventional linear high bay of the same output

Electrical

  • 0-10V dimming, flicker free
  • PF > 0.95, driver efficiency > 93%, THD < 20%
  • Input AC120-347V
  • Watt tunable on Switch 1, CCT tunable on Switch 2

Installation

  • Suspended from ceiling hooks
  • Motion sensor or emergency battery can be added
  • Average beam angle 116.5° at 50%

Ideal applications

  • Warehouses
  • Distribution centres
  • Manufacturing
  • Gymnasiums
  • Hangars
  • Big-box retail

Downloads

Spec sheet (PDF), Gielight-165W-220W-320W-Linear-High-Bay.pdf

Complete your setup

Pick the add-ons you need and add everything in one tap.

Gielight GL-HB6 Compact LED Linear High Bay 180-220W PIR Motion Sensor, 3.5mm Jack (ANT-6-4T-PR) Bluetooth + Infrared Sensor, 3.5mm Jack (ANT-6-4T-BLE-GE) Microwave Motion Sensor, 3.5mm Jack (HD07VR-MH) Remote Controller (RC-100) Infrared Remote Control, LCD (HD06R) Emergency Battery Backup, 40W (EMA-40FY-170)
  • $286.00
  • $13.00
  • $23.50
  • $13.00
  • $14.50
  • $19.00
  • $78.00

Total price: $0.00

Volume discount applies to your product total on your quote.

Anything else for this fixture?

PIR Motion Sensor, 3.5mm Jack (ANT-6-4T-PR) PIR Motion Sensor, 3.5mm Jack (ANT-6-4T-PR) $13.00
Bluetooth + Infrared Sensor, 3.5mm Jack (ANT-6-4T-BLE-GE) Bluetooth + Infrared Sensor, 3.5mm Jack (ANT-6-4T-BLE-GE) $23.50
Microwave Motion Sensor, 3.5mm Jack (HD07VR-MH) Microwave Motion Sensor, 3.5mm Jack (HD07VR-MH) $13.00
Remote Controller (RC-100) Remote Controller (RC-100) $14.50
Infrared Remote Control, LCD (HD06R) Infrared Remote Control, LCD (HD06R) $19.00
Emergency Battery Backup, 40W (EMA-40FY-170) Emergency Battery Backup, 40W (EMA-40FY-170) $78.00

Compare other brands

The same kind of fixture from the other manufacturers we carry.

Questions about this fixture

What wattage, color temperature and voltage options does it have?

Wattage: 180 / 200 / 220 W. Color temperature: 4000K, 5000K. Voltage: 120-347V.

Does it come with a sensor or controls?

It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.

What certifications does it have?

Listed by the manufacturer as: UL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.

What is the warranty?

Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.

Is there a spec sheet?

Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)

Is there a minimum order, and how does shipping work?

No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
