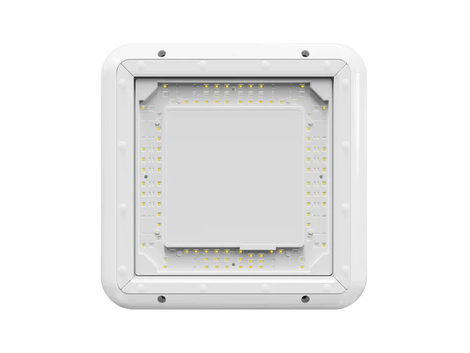

Gielight GL-CP3 LED Garage & Canopy Light 200W, Junction Box
Add-ons for this fixture
Pick several at onceSensors, connectors and parts that fit this fixture. They ship on the same freight.
- UL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | Gielight |
|---|---|
| Model / part number | GL-CP3-200W-H-5000K With junction box |
| Fixture type | Canopy |
| Family | Canopy |
| Color temperature (CCT) | 5000K |
| Input voltage | 120-277V |
| Certifications | UL, DLC |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
Fixed 200W die-cast canopy light on a 400mm square body — a different and much larger housing from the 100W above, not a bigger version of it. Supplied with the junction box.
- Fixed 200W output
- UL and DLC listed
- 0-10V dimmable driver
- Corrosion-resistant powder coat
- Retrofits to a 4-inch round deck opening
- 5-year limited warranty
Specifications
Construction
- Die-cast aluminium, 400 x 400 x 84mm
- Corrosion-resistant powder coating
- Suits indoor and outdoor environments
Electrical
- Input 120-277VAC
- PF > 0.9
- 0-10V dimmable driver
- Fixed 200W output
Installation
- Aligns to a 4-inch round hole in the canopy deck
- Four ST 4.8 self-drilling screws to the cover panel
- Waterproof glue between cover panel and deck
- Motion sensor or emergency battery can be added
- Operating range -20°C to 50°C
Ideal applications
- Petrol station canopies
- CNG fuelling stations
- Soffits
- Parking garages
- Drive-throughs
Downloads
Spec sheet (PDF) — Gielight-200W-LED-Garage-Canopy-Light.pdf
Best uses
- Canopy decks, single or double top deck
- Parking garage ceilings
- New installs through a 4 in round hole, or replacing an existing canopy fixture over its original opening with a cover panel
What's in the box
- One 200W canopy light
- Items the installation steps call provided: wet location rated junction box, 3/4 in conduit, four ST4.8 self-drilling screws, and four ST6.3 self-drilling screws for the replacement method
Accessories you may need
- Waterproof glue to seal the mounting holes and deck, as the installation steps require
- Supply conductors rated at least 75C
- Optional motion sensor or emergency battery
Product FAQs
What size hole does it need?
A 4 in round hole in the canopy deck for a new install.
Can it replace an existing canopy fixture?
Yes. The spec sheet covers installing over the original opening with a cover panel.
Does it dim?
Yes, 0-10V, on a 120-277V input.
Complete your setup
Pick the add-ons you need and add everything in one tap.
- $91.00
- $13.00
Total price: $0.00
Volume discount applies to your product total on your quote.
Anything else for this fixture?
Microwave Motion Sensor, 3.5mm Jack (HD07VR-MH)
$13.00
Compare other brands
The same kind of fixture from the other manufacturers we carry.
-
JEE Lighting
JEE LED Garage Canopy 40-75W40 / 60 / 75 W
$48.75
View →
-
EDIPAI
EDIPAI LED Canopy Light G5 80W 12000lm, Gas Station and Garage32 / 50 / 65 / 70 / 80 W
$56.75
View →
-
StarLake
StarLake GP04 LED Garage Canopy Light 30-100W, with Sensor Base100 / 80 / 60 / 40 / 30 W selectable
$61.75
View →
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Wattage: 200 W. Color temperature: 5000K. Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls. Compatible sensors and accessories are listed under Complete your setup on this page.
What certifications does it have?
Listed by the manufacturer as: UL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
