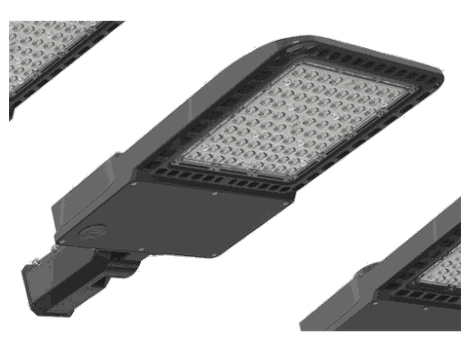

Area Light G8 Trunnion Mount
- ETL Listed
- DLC Listed
- 5 Year Warranty
Automatic volume discount on your product total (freight not included)
- $500 to $1,9995%
- $2,000 to $3,9996%
- $4,000 to $5,9997%
- $6,000 to $7,9998%
- $8,000 to $9,9999%
- $10,000 to $19,99910%
- $20,000 to $49,99912%
- $50,000+15%
Counts every product in your cart, any brand. Applied on your quote and invoice. No minimum order.
Key specifications
| Manufacturer | EDIPAI |
|---|---|
| Model / part number | EDI-AL-TM G8 (TRUNNIONMOUNT) |
| Fixture type | Sensors & Accessories |
| Family | Accessories |
| Input voltage | 120-277V |
| Certifications | ETL, DLC |
| Warranty | 5 year minimum manufacturer warranty |
| Shipping | Ships from the manufacturer's warehouse. Freight quoted to your address before you pay. How ordering works |
Area Light G8 Trunnion Mount
- IP66 rated
- 0-10V dimming
- Photocell option
- 5 selectable power levels
- Field-selectable CCT
Specifications
LED
- All in one: 5 Powers Adjustable & 2/3CCT Option
- LEDS: RA>80, R9>0, Long-life, high-efficacy, SMD 3030 EMC
- Lifespan: L70 ≥ 50,000 hours
Construction
- Construction: Die-cast aluminum housing & Driver housing
- Finish: powder coated, post-painted black or white
- Optical System: Type III (standard), Types IV and V Distributions Available
Electrical
- IP Rating: LED light engine rated IP66. Driver compartment rated to IP65
- Driver: SOSEN 120-277V BECKY 120-347V/277-480V, 10KV Surge Protection, 0-10V Dimming
- Operating temperature: -4°F~104°F
Installation
- Mounting: Slip Fitter Mount (standard), Square & Round Pole Mount, Trunnion Mount
Downloads
Compare other brands
The same kind of fixture from the other manufacturers we carry.
Questions about this fixture
What wattage, color temperature and voltage options does it have?
Voltage: 120-277V.
Does it come with a sensor or controls?
It ships without built in controls.
What certifications does it have?
Listed by the manufacturer as: ETL, DLC. Confirm the current listing on the DLC Qualified Products List before filing a rebate.
What is the warranty?
Every fixture we carry has at least a 5 year manufacturer warranty. See the spec sheet for this model's exact terms.
Is there a spec sheet?
Yes. The manufacturer's spec sheet is a PDF you can open here. Open the spec sheet (PDF)
Is there a minimum order, and how does shipping work?
No minimum order. Larger orders get an automatic volume discount on the product total. Freight is quoted before you pay. Text 845-681-2684 with your ZIP for a quick quote.
