JEE 2x2 LED Center Basket 20-40W with Sensor Base
Product Number:JEN-T2-S40-3065
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.

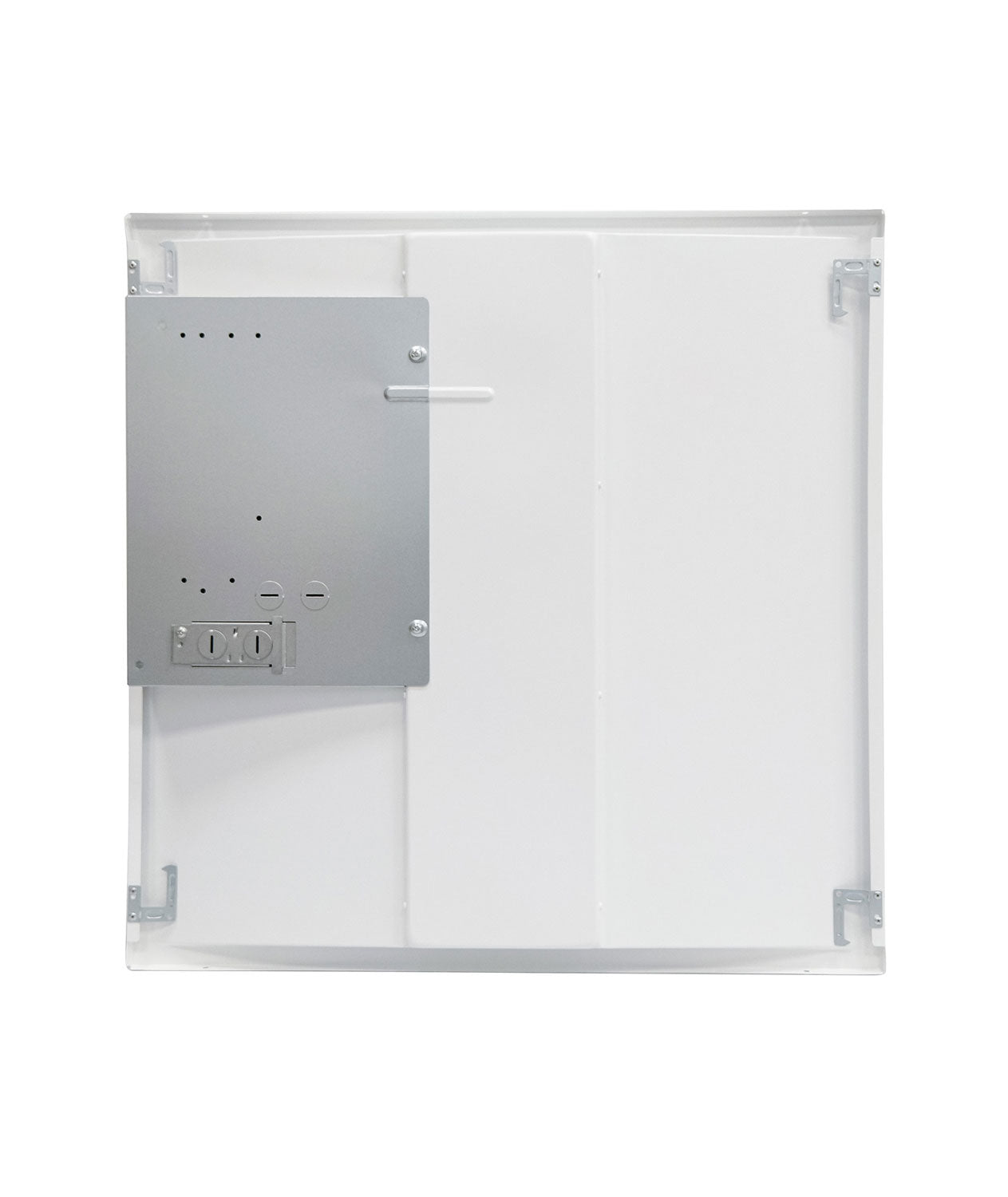

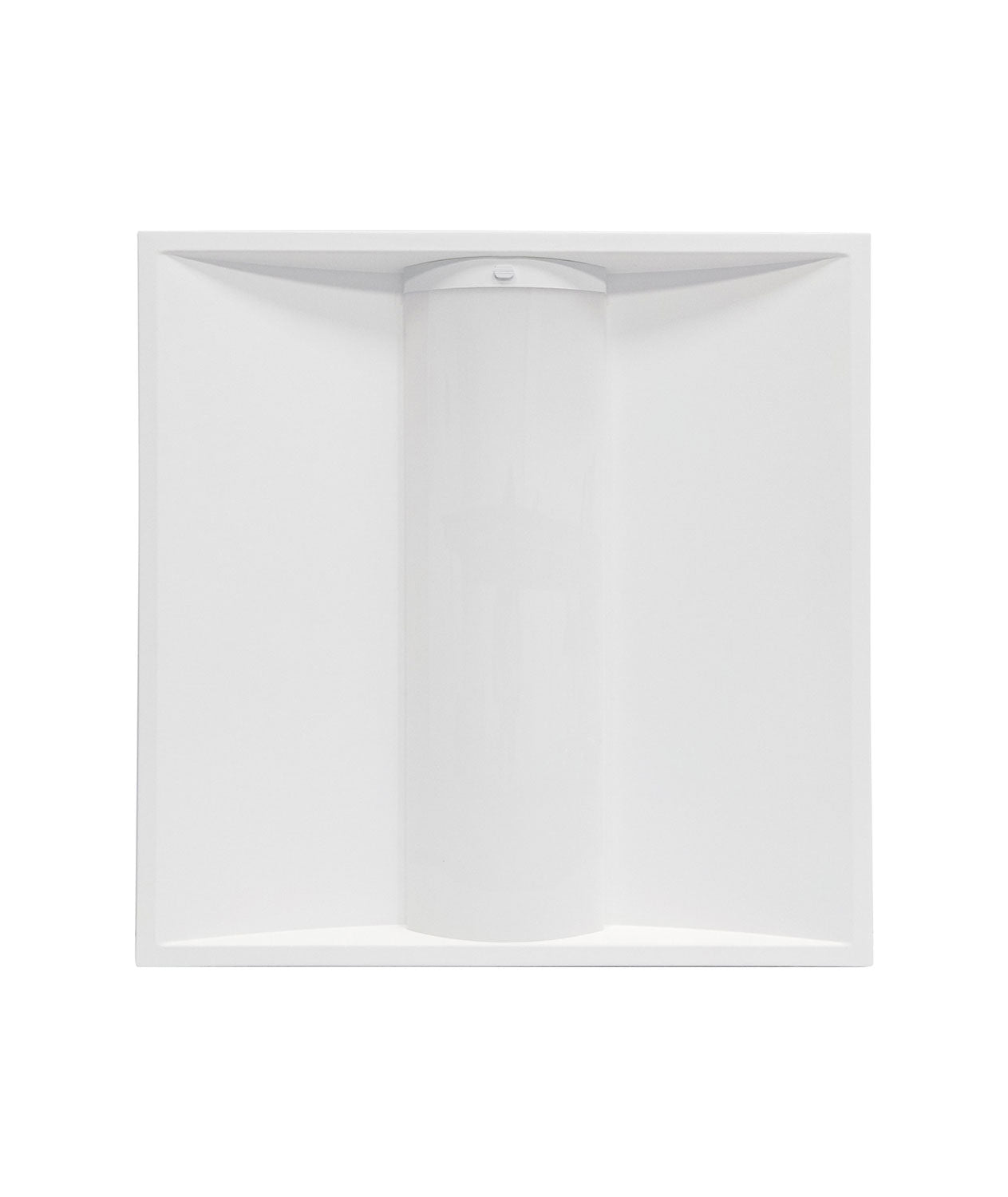

JEE 2x2 recessed LED centre basket troffer, five selectable wattages and five selectable CCTs set from switches on the driver box. Fitted with a sensor base.
- 5 selectable wattages and 5 selectable CCTs on one SKU
- Die-formed steel housing, white finish
- Earthquake clips included
- Large driver box for easy wiring
- 0-10V dimmable
- ETL damp location, DLC 5.1 Premium
- 5-year limited warranty
Specifications
Wattage
20 / 25 / 30 / 35 / 40 W
Lumens
2,500 – 5,200 lm
Efficacy
up to 130 lm/W
Colour temperature
3000K / 3500K / 4000K / 5000K / 6500K
Voltage
120–277V
Dimming
23.74" L x 23.74" W x 2.12" H
Warranty
5-year limited warranty
CRI
≥ 80
Rated life
50,000 hours
THD / PF
≤ 10% / ≥ 0.95
Operating temp
-20°C to 45°C
Dimensions
23.74" L x 23.74" W x 2.12" H

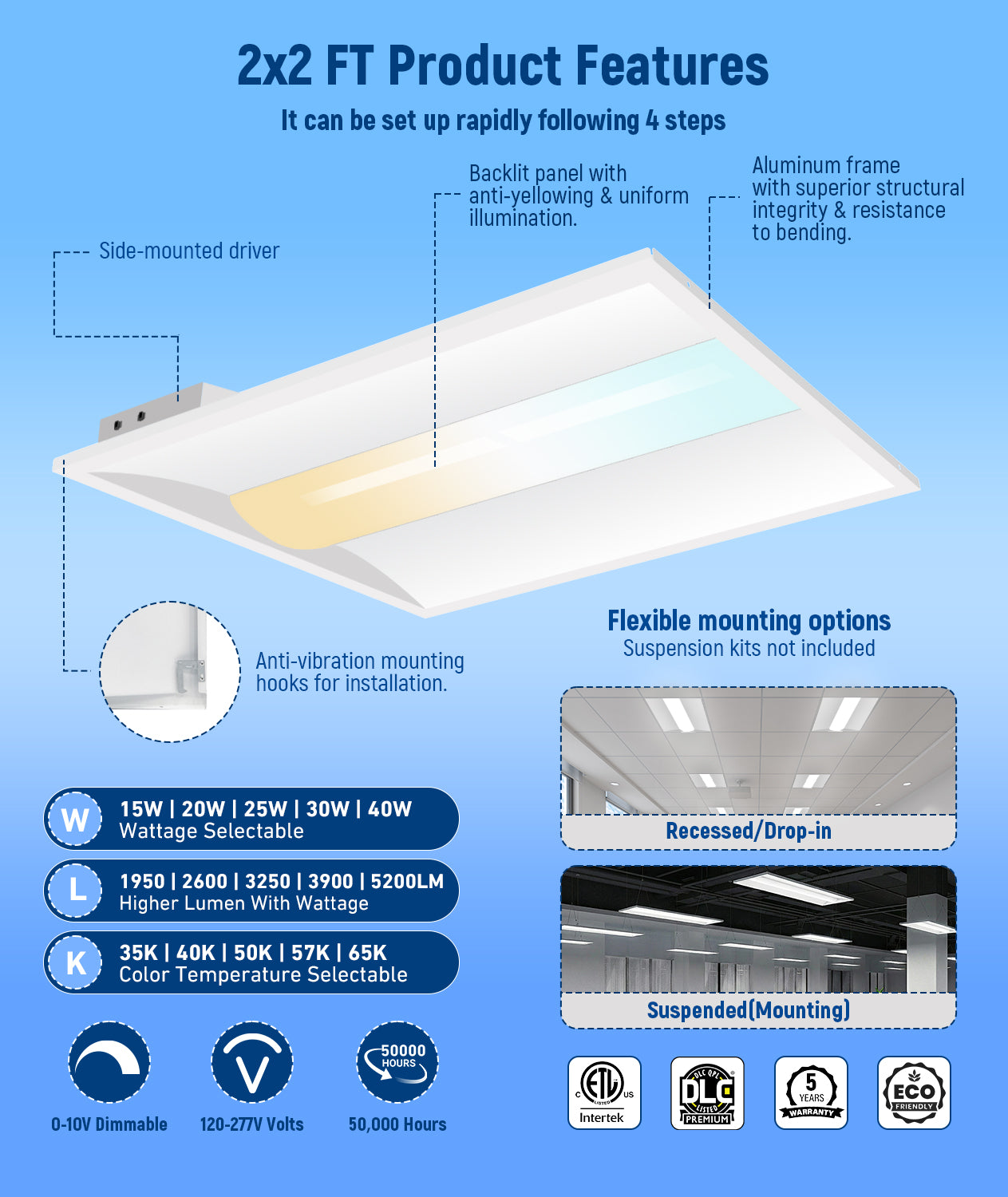

Construction
- Precision die-formed steel housing in a white finish
- Recessed design fits most standard T-bar grid ceilings

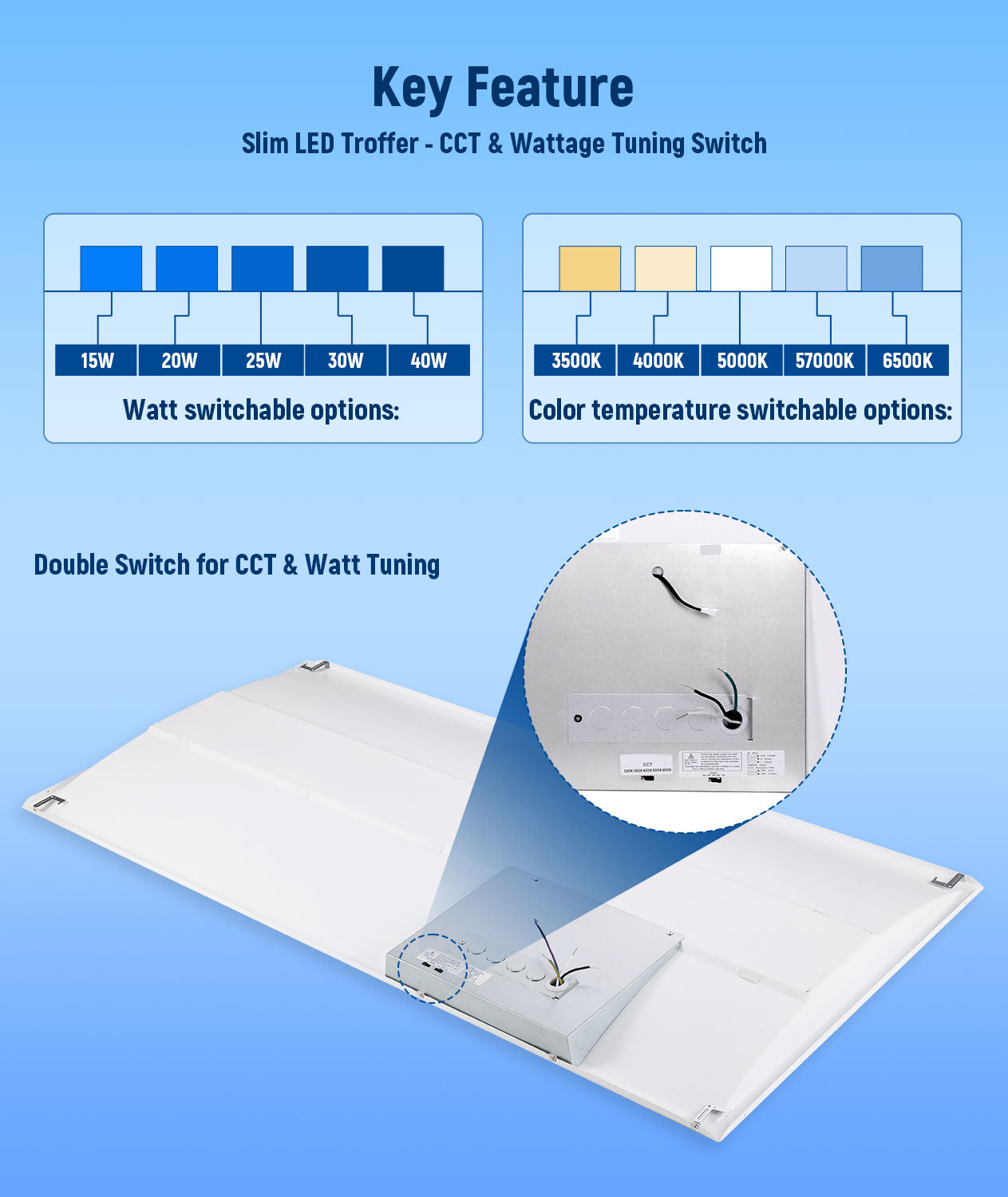

- 5 wattage and 5 CCT switches on the driver junction box
- Large driver box for easy installation and wiring
Electrical
- Input voltage 120-277Vac 50/60Hz
- 0-10V dimmable
- THD ≤ 10%, PF ≥ 0.95
Installation
- Lifts through the grid ceiling and rests on the T-bars
- Earthquake clips included
- Wattage and CCT set at install from switches on the driver box
- Ambient temperature range -20°C to 45°C
Ideal applications
- Offices
- Retail
- Schools
- Restaurants
- Residential
Downloads
Spec sheet (PDF) — JEE-Spec-JEN-T2T4-LED-Troffer-Center-Basket.pdf
