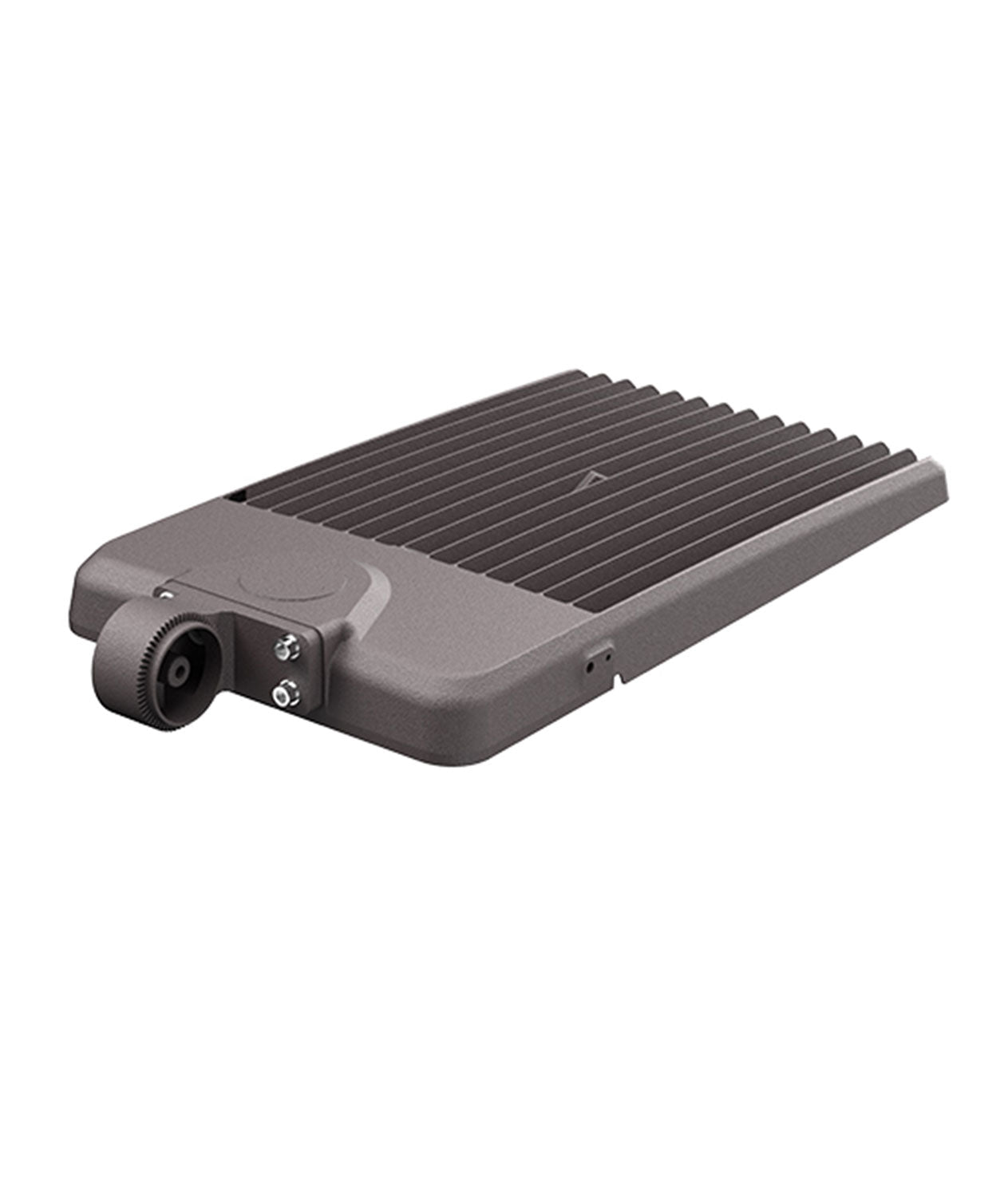

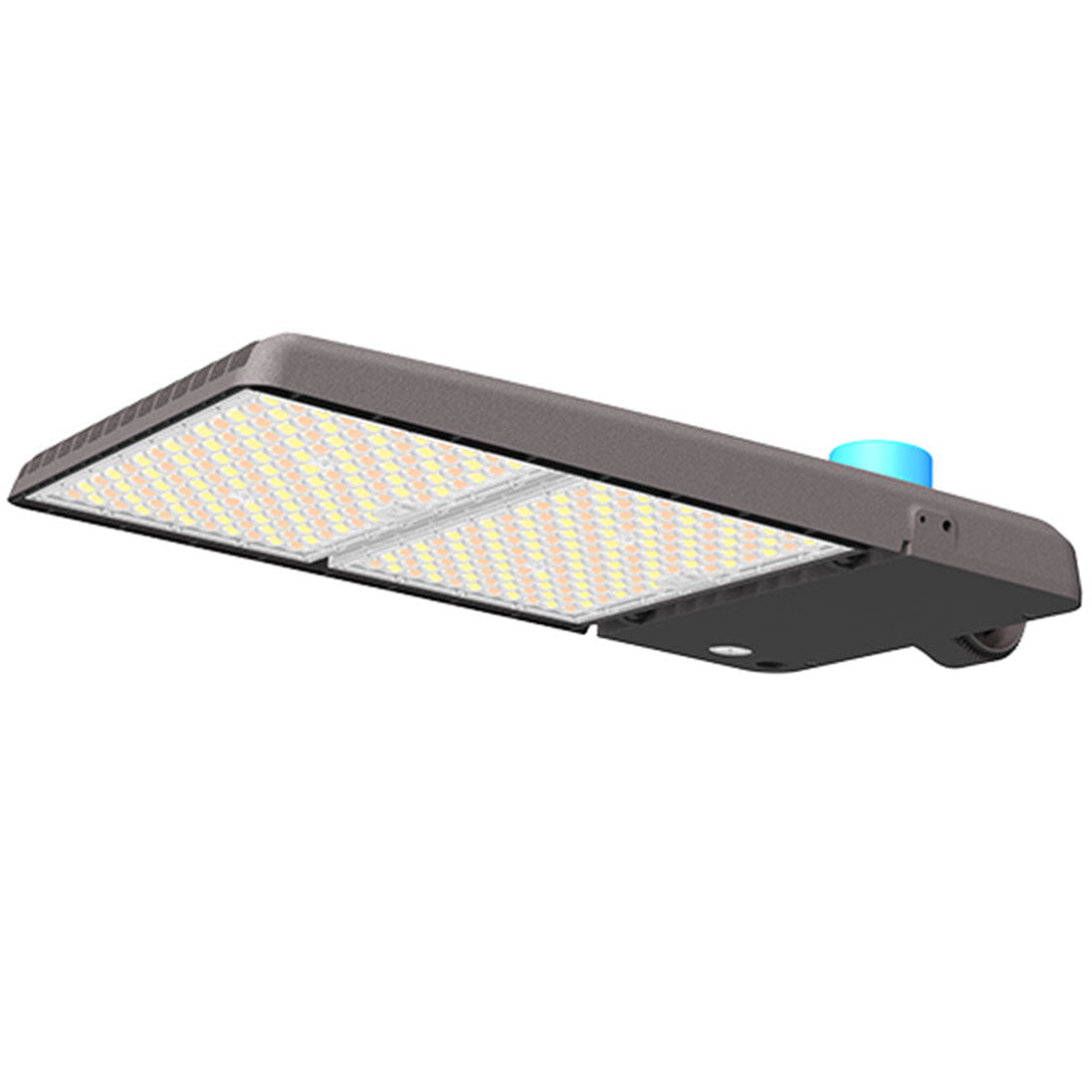

JEE AR09 LED Area Light 100-150W with Photocell Base
Product Number:J-AR09-150W-L-PC-3CCT-T3
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
JEE AR09 shoebox area light. Die-cast aluminium with a T3 polycarbonate lens and clamshell access. Wattage and CCT are field-adjustable. Fitted with a photocell base for dusk-to-dawn control.
- 3 switchable wattages and 3 switchable CCTs on one SKU
- Up to 170 lm/W (160 lm/W on the 500W)
- Type III distribution
- IP65 die-cast aluminium with clamshell access
- Field-adjustable CCT and wattage
- UL listed, DLC Premium
- 5-year warranty
Specifications
Wattage
100 / 120 / 150 W
Lumens
max. 25,500 lm
Efficacy
up to 170 lm/W
Colour temperature
3000K / 4000K / 5000K tunable
Voltage
120–277V
Dimming
19.1" x 11.1" x 4.5" carton, 6.2 lbs
Warranty
5-year limited warranty
CRI
> 80
Distribution
Type III
Ingress rating
IP65
Surge protection
6kV
Operating temp
-40°C to 50°C
Packing
19.1" x 11.1" x 4.5" carton, 6.2 lbs
Construction
- Die-cast aluminium housing
- Polycarbonate lens
- Clamshell design
- IP65 rated
Electrical
- AC120-277V or AC277-480V, 0-10V dimming
- Surge protection: 6kV on 150W, 10kV on 300W and 500W
- Field-adjustable CCT and wattage switches
Optics
- Type III light distribution
- T3 polycarbonate lens
Installation
- Three mounting brackets available: slip fitter, direct mount, trunnion
- Plug-in and Zhaga socket microwave motion sensor available (factory)

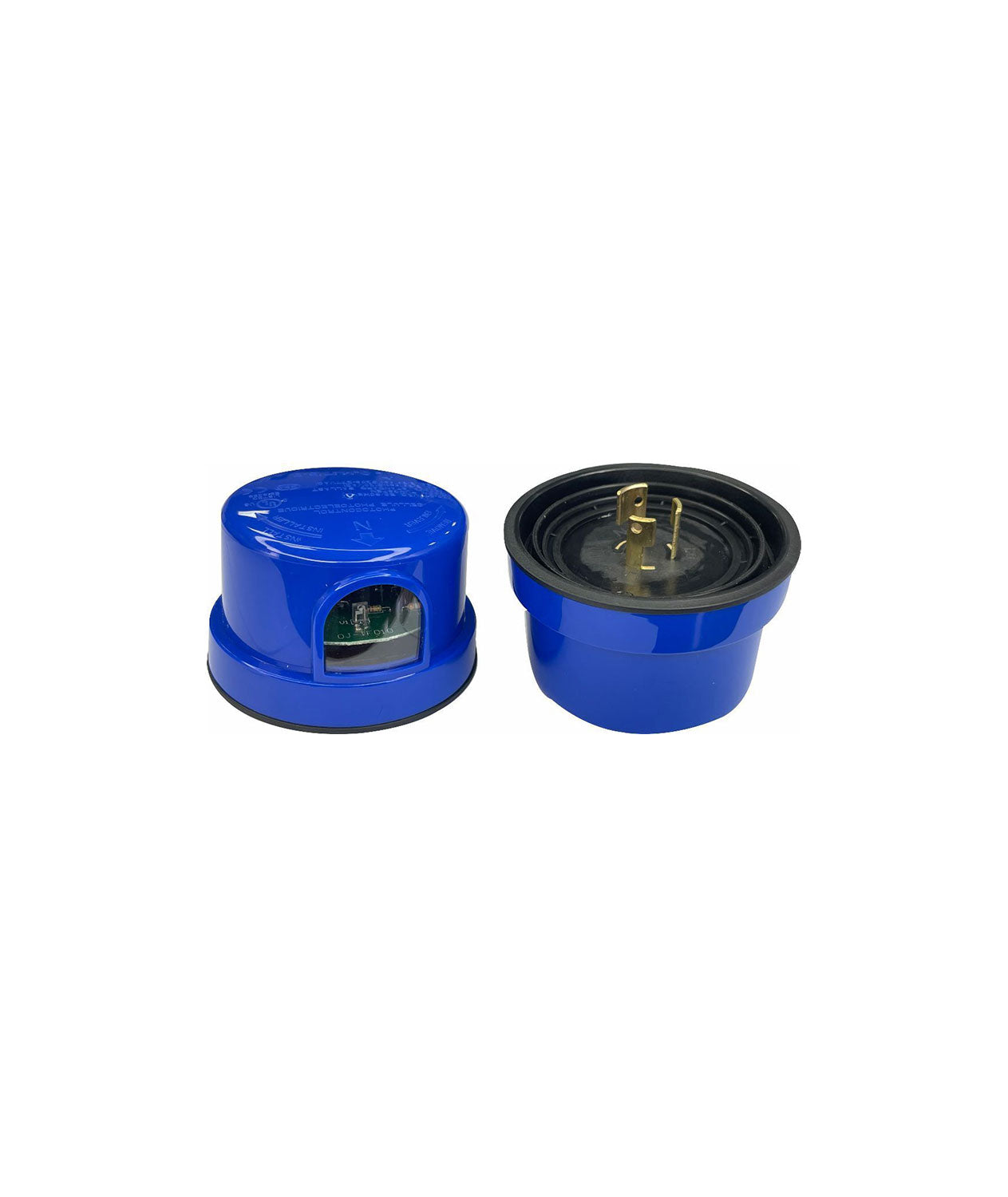

- Dusk-to-dawn photocell optional
Ideal applications
- Parking lots
- Roadways
- Outdoor applications
