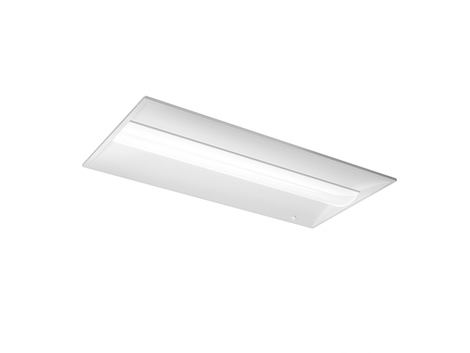

Gielight TTR 2x4 LED Center Basket Troffer 30-50W, Sensor Base
Product Number:TTR-24-50W-L-HY (with sensor base)
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
2x4 centre-basket troffer with a factory sensor base, three selectable wattages and three selectable CCTs. Three-step TTR series — the TTR5 sheet does not attach to it.
- 3 selectable wattages, 3 selectable CCTs
- Factory sensor base fitted
- Centre-basket diffuser
- No spec sheet on file — figures as printed on the price list
Specifications
Wattage
30 / 40 / 50 W
Lumens
3,900 – 6,500 lm
Efficacy
up to 130 lm/W
Colour temperature
3500K / 4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
Spec sheet
None on file — TTR5 sheet covers the 5-step models only
Sensor jack
This fixture takes a PLUG & PLAY sensor module, not an audio-jack head. The spec sheet's options block calls for a Haisen HD-series microwave motion sensor with an infrared remote: remove the plastic plug and the module drops into the aligned base. Detection is 5.8GHz, installation height to 6m/19.68ft, detection distance 3m/9ft or more, and the module carries its own dusk/dawn photocell and daylight harvesting. The sheet prints HD08VR-MA-1 and HD05R; Gielight stocks this family under the part numbers listed here, so confirm the exact variant on your quote.
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
