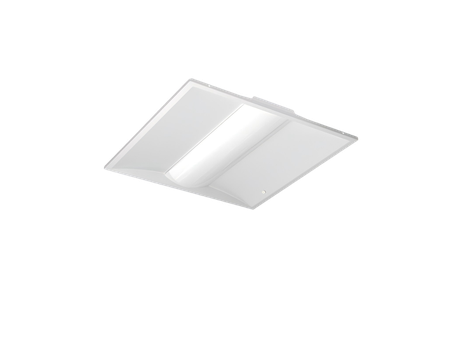

Gielight TTR 2x2 LED Center Basket Troffer 30-40W, Sensor Base
Product Number:TTR-22-40W-L-HY (With sensor base)
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
2x2 centre-basket troffer, three selectable wattages and three selectable CCTs. This is the three-step TTR series; the TTR5 troffer spec sheet covers only the five-step TTR5 models, so it does not attach here.
- 3 selectable wattages, 3 selectable CCTs
- Centre-basket diffuser
- 0-10V dimming
- No spec sheet on file — figures as printed on the price list
Specifications
Wattage
30 / 35 / 40 W
Lumens
3,900 – 5,200 lm
Efficacy
up to 130 lm/W
Colour temperature
3500K / 4000K / 5000K
Voltage
120–277V
Warranty
5-year limited warranty
Spec sheet
None on file — TTR5 sheet covers the 5-step models only
Sensor jack
This fixture takes a PLUG & PLAY sensor module, not an audio-jack head. The spec sheet's options block calls for a Haisen HD-series microwave motion sensor with an infrared remote: remove the plastic plug and the module drops into the aligned base. Detection is 5.8GHz, installation height to 6m/19.68ft, detection distance 3m/9ft or more, and the module carries its own dusk/dawn photocell and daylight harvesting. The sheet prints HD08VR-MA-1 and HD05R; Gielight stocks this family under the part numbers listed here, so confirm the exact variant on your quote.
Ideal applications
- Offices
- Schools
- Healthcare
- Retail
- Government
