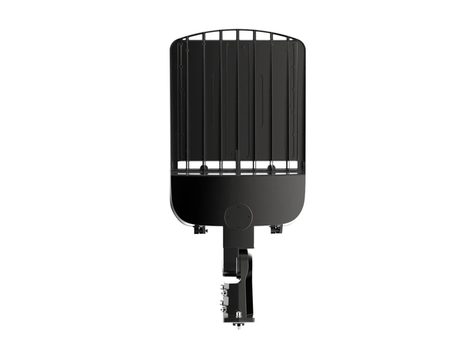

Gielight SXT LED Shoebox Area Light 200-300W, A Slip-Mount
Product Number:SXT-300W-H-H(With A Slip- Mount)
Compatible accessories
Sensors, mounts, drivers and controls that fit this fixture.
Rounded knuckle-mount shoebox area light, three selectable wattages. Supplied with the A slip-fitter mount.
- 3 selectable wattages (200/240/300W)
- IP65, wet location
- 150 lm/W
- Rounded knuckle-mount housing
- 5-year limited warranty
Specifications
Wattage
200 / 240 / 300 W
Lumens
30,000 – 45,000 lm
Efficacy
up to 150 lm/W
Colour temperature
4000K / 5000K / 6500K
Voltage
120–277V
Warranty
5-year limited warranty
CRI
Ra 70
IP rating
IP65
Housing
Gielight prints two different housings under the SXT-300W name across two spec sheets. This row is the ROUNDED knuckle-mount version — confirmed against the product photos. The 200W and 400W are the square-shouldered body.
Sheet conflicts
The governing sheet contradicts itself three ways: IP66 badge against IP65 in the table, PF ≥ 0.95 badge against PF > 0.9 in the table, and AC100-347V in the features against AC120-277V in the table. The table figures are published here.
Lumens
calculated from rated efficacy
Construction
- Die-cast aluminium with deep vertical fins and an arched top
- Knuckle-and-bolt-plate arm mount
- PC milky white mask
Electrical
- Input AC120-277V
- PF > 0.9
- Watt tunable by DIP switch
Installation
- Knuckle arm mount, slip fitter available
- IP65, wet location
Ideal applications
- Parking lots
- Car lots
- Yards
- Loading areas
- Campuses
